In order for IOTA Vue to access data on Databases - the IOTA Generic SQL Driver must be configured and deployed on network
which has access to required Database. The IOTAVue uses distributed "mesh-like" data source topology:

Users are free to define what Region and Site mean for their unique deployment.

Name	Example	Description
Region	us-east-1	geographical territory, similar to availability regions
Site	siteB	specific plant or a building

To simplify the installation process, the IOTA Software provides a container image with the latest driver version. The
user is only required to select/create a region and site. Then for the selected driver type, click add a new server.
The container contains all necessary Generic SQL Driver configurations with public and private keys for secure communication
with the company's IOTA Vue NATs message bus.

To Access the Data Sources menu, click at the top right corner on the "hamburger" icon, then select "Data Sources".

open_datasources

Add Region

Click on the "Add" icon to add a new site, then in the popup dialog - enter the site name. Make sure the SEEQ checkbox
is selected. Each site can contain multiple driver types. For each checked driver type - the instance pane will contain
selected driver tabs to which connection instances can be added.

There are two input fields:

• Site name
• Channel name (optional)

The site name is a user-friendly name, and the channel name can contain abbreviations. If the channel name is not
provided, it is automatically assigned to the site name on the "Apply" button click.

ds region

Add Site

Click on the "Add" icon to add a new site, then in the popup dialog - enter the site name. Make sure the Generic SQL checkbox
is selected. Each site can contain multiple driver types. For each checked driver type - the instance pane will contain
selected driver tabs to which connection instances can be added.

There are three input fields:

• Site name
• Driver type
• Channel name (optional)

The site name is a user-friendly name, and the channel name can contain abbreviations. If the channel name is not
provided, it is automatically assigned to the site name on the "Apply" button click.

ds site

Add connection

The Generic SQL Driver container is automatically available in the IOTA Vue data sources section configured for specific
Region\Site.

Tips

The installer already contains all required configurations for specific Region\Site connectivity.

To add a new Seeq server connection navigate to data sources menu, then:

1. Select region of interest
2. Select the site of interest
3. Select the tab named "GenericSQL" within the selected site.
4. At the top right corner - click on the "Add" icon.

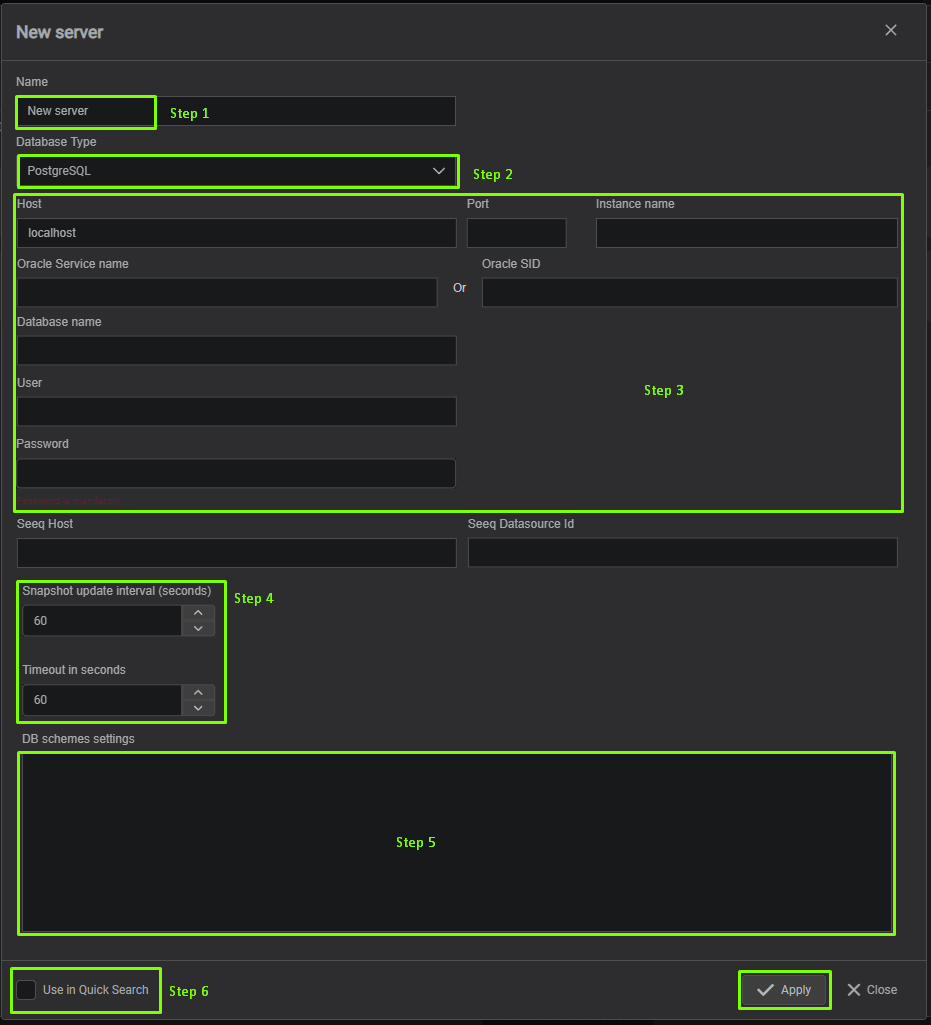

The Generic SQL Driver's connection dialog will appear.

generic_sql instance

1. Provide a name for the Connection to the database. All search results will be prefixed with this name
2. Specify the database type.
3. Specify the connection settings.
4. Optional step, set a timeout variable. The variable uses for timeout exceptions between the Generic SQL Driver and database server.
5. Specify the Database schema settings.
6. Please check the "Use in Quick Search" checkbox if the Connection should be used in the quick search sidebar. If not
   checked, the configured connection will only be available in Advanced search.
7. Click on the "Apply" to save changes.

If Connection has the "Use in Quick Search" checkbox selected, it becomes available in a quick search sidebar.

Connection settings

Option	Configurable for DB Types	Required	Note
Host	All types	🟢
Port	All types	🟢
Instance Name	MSSQL	⚫
Oracle Service Name	Oracle	🟢	if configured then Oracle SID must be empty
Oracle SID	Oracle	🟢	if configured then Oracle Service Name must be empty
Database Name	All types	🟢
User	All types	🟢
Password	All types	🟢

Driver Configuration

On every startup the Generic SQL Driver reads its configuration from the environment variables.

Tips

The Generic SQL Driver comes with a pre-configured environment. Therefore, manual configuration is not required.

Configuration parameters

Environment name	Required	Default Value	Data Type	Description
DRIVERID	⚫	""	string	Driver Id - used for logging purposes only
LOG_LEVEL	⚫	ERROR	string	Debug verbose level: ERROR, DEBUG, INFO
NATS_HOST	🟢	null	string	NATs server url with port
SEED_KEY_PATH	🟢	null	string	NATs NKey public key string. Private key must be defined in file: "privatekey.nk"
RQS_TOPIC	🟢	null	string	NATs topic on which driver listens for requests
HEALTH_TOPIC	⚫	""	string	NATs topic for sending driver's health
HEALTH_SCHEDULING	⚫	10000	int	How often in milliseconds to send health data. Default: 10000 = 10 sec
LOGS_TOPIC	⚫	""	string	NATs topic for sending driver's logs
METRICS_TOPIC	⚫	""	string	NATs topic for sending driver's metrics
METRICS_SCHEDULING	⚫	30000	int	How often in milliseconds to send metrics data. Default: 30000 = 30 sec
ENABLE_METRICS	⚫	true	bool	Enables metrics reporting

Database schema settings

This section provides instructions on how to configure the generic driver for data ingestion from SQL-like databases.

Settings are the JSON object described bellow

{
  "tableSettings": [
    {
      "Id": string,
      "Name": string,
      "TimeColumn": string,
      "TimeUnit": string,
      "TimeStringFormat": string,
      "DataColumns": []string,
      "GroupBy": []string,
      "LastGroupAsTagName": bool,
      "IntervalForSnapshotsInMin": integer,
      "TagPropertiesMap": JSON,
      "SchemaName": string,
      "MetadataTable": JSON
    }
  ],
  "datasetTags": [
    {
      "name": string,
      "query": string,
      "parameters": JSON
    }
  ],
  "writeDataTags": [
    {
      "name": string,
      "query": string,
      "parameters": JSON
    }
  ]
}

tableSettings

This section describes the DB tables structure.

• Id - (required) table settings identifier
• Name - (required) table name
• SchemaName - name of the schema stores table
• TimeColumn - (required) name of the column stores timestamp or datetime string
• TimeUnit - units of the time
• TimeStringFormat - format of the datetime string. Used when the TimeColumn stores datetime as string. The format is described here Golang datetime string format
• DataColumns - (required) list of the columns names stores tag values
• GroupBy - list of the columns names stores asset tree. Used with Asset-Like, Multi tagged Asset-like and Metadata-Value tables
• LastGroupAsTagName - (required) flag represents is last element in the GroupBy list is tag name column
• TagPropertiesMap - map of the key-value pairs where key is one of ["Uom", "Description"] and value is column name related to key tag property
  • Uom - units of the tag measurement
  • Description - tag description
• IntervalForSnapshotsInMin - minutes to narrow scanning a table, it is used for tabular data, if you know that your columns is updated every day, you can specify it in this property, and the driver will build a query like give me a snapshot in this range: now()-interval. Instead of give me snapshot order by time DESC, which scans the whole table. This option will significantly improve the speed of the query.

datasetTags

This section describes the custom queries to DB. This queries will be displayed in tag search.

• name - unique query name
• query - query string. May contains parameters placeholders
• parameters - map of the key-value pairs where key is the name of query parameter and value is the parameter value

See detailed description of the configuration.

writeDataTags

This section describes the custom INSERT|UPDATE|DELETE queries to DB.

• name - unique query name will be displayed in the Tag search panel.
• query - query string. May contains parameters placeholders
• parameters - map of the key-value pairs where key is the name of query parameter and value is the parameter value

See detailed description of the configuration.

Reading Data from Tabular Tables

In statistics, tabular data refers to data organized in a table format with rows and columns. Consider the following example of tabular data:

ID	compressor_power	optimizer	relative_humidity	temperature	wet_bulb	ts
0	0.0029228	0	62.35181596	79.64134287	70.29920291	2022-11-03 12:19
1	0.0029228	0	62.38810345	79.63862069	70.30710957	2022-11-03 12:20
2	0.0029228	0	62.4371127	79.63413962	70.31706517	2022-11-03 12:21
3	0.0029228	0	62.48612195	79.62965854	70.32702076	2022-11-03 12:22

Each column in this table represents a TAG. To configure the driver to read this data, use the following configuration:

{
  "Id": "tabular_data",
  "Name": "tabular_data",
  "TimeColumn": "ts",
  "DataColumns": [
    "compressor_power",
    "optimizer",
    "relative_humidity",
    "temperature",
    "wet_bulb"
  ],
  "GroupBy": null,
  "LastGroupAsTagName": false
}

Configuration Details:

Config Item	Description
Id	Unique ID used internally by the driver
Name	Name of the database's table
TimeColumn	Specifies the column containing the time series
DataColumns	Array of columns to convert into tags
GroupBy	Should be empty or null for tabular data
LastGroupAsTagName	Should be false for tabular data

This configuration allows the driver to effectively handle and read tabular data from SQL-like databases.

Reading Data from Asset-like Tables

Additionally, data can be stored in the following table format:

ID	ts	siteid	machineid	lineid	tag	value
1	'2022-11-03 21:27:47'	Site 1	MachineA	Line 1	Temperature	-47.43
2	'2022-11-03 21:27:47'	Site 1	MachineA	Line 1	Pressure	25.50
3	'2022-11-03 21:27:47'	Site 1	MachineA	Line 1	Power	-14.03
4	'2022-11-03 21:27:47'	Site 1	MachineB	Line 1	Temperature	79.61
5	'2022-11-03 21:27:47'	Site 1	MachineB	Line 1	Pressure	-27.63
6	'2022-11-03 21:27:47'	Site 1	MachineB	Line 1	Power	99.65
7	'2022-11-03 21:27:47'	Site 1	MachineC	Line 1	Temperature	32.08
8	'2022-11-03 21:27:47'	Site 1	MachineC	Line 1	Pressure	79.92
9	'2022-11-03 21:27:47'	Site 1	MachineC	Line 1	Power	162.36
10	'2022-11-03 21:27:47'	Site 2	MachineA	Line 1	Temperature	91.21
11	'2022-11-03 21:28:47'	Site 2	MachineB		Power	38.12
12	'2022-11-03 21:41:47'	Site 1	MachineB		Pressure	-27.70

This table structure can be represented as an asset tree:

• Site1
  • Line 1
    • MachineA
      • Temperature
      • Pressure
      • Power
    • MachineB
      • Temperature
      • Pressure
      • Power
    • MachineC
      • Temperature
      • Pressure
      • Power
• Site2
  • Line 1
    • MachineA
      • Temperature
    • MachineB
      • Power

The configuration for processing such table data is as follows:

{
  "ID": "asset_tree_data",
  "Name": "asset_tree_data",
  "TimeColumn": "ts",
  "DataColumns": ["value"],
  "GroupBy": ["siteid", "lineid", "machineid", "tag"],
  "LastGroupAsTagName": true
}

Configuration Details:

Config Item	Description
Id	Unique ID used internally by the driver
Name	Name of the database's table
TimeColumn	Specifies the column containing the time series
DataColumns	Array of columns to convert into tags
GroupBy	An array that defines the hierarchy for creating the asset tree structure
LastGroupAsTagName	Should be true, as we want to show the 'value' column as the value of the last tag in the hierarchy

Reading Data from Multi tagged Asset-like tables

Data can be stored in the following table format:

ts	siteid	machineid	lineid	Temperature	Pressure
'2022-11-03 21:27:47'	Site 1	MachineA	Line 1	25.50	-47.43
'2022-11-03 21:27:47'	Site 1	MachineB	Line 1	34.0	79.61
'2022-11-03 21:27:47'	Site 2	MachineA	Line 1	45.76	91.21

The peculiarity of this type of tables is that each record has the data of the asset tree and the values of all its tags, the names of which are the names of the corresponding columns of the table.

This table structure can be represented as an asset tree:

• Site1
  • Line 1
    • MachineA
      • Temperature
      • Pressure
    • MachineB
      • Temperature
      • Pressure
    • MachineC
      • Temperature
      • Pressure
• Site2
  • Line 1
    • MachineA
      • Temperature
      • Pressure

The configuration for processing such table data is as follows:

{
  "ID": "hybrid_asset_tree",
  "Name": "hybrid_asset_tree",
  "TimeColumn": "ts",
  "DataColumns": ["Temperature", "Pressure"],
  "GroupBy": ["siteid", "lineid", "machineid"],
  "LastGroupAsTagName": false
}

Configuration Details:

Config Item	Description
Id	Unique ID used internally by the driver
Name	Name of the database's table
TimeColumn	Specifies the column containing the time series
DataColumns	Array of columns to convert into tags
GroupBy	An array that defines the hierarchy for creating the asset tree structure
LastGroupAsTagName	Should be false, as we want to show the 'DataColumns' list columns as the tags in the hierarchy

Reading data From Metadata and Value Data

Sometimes data is stored in a dimension table and a fact table. This is a popular model choice because it allows flexibility in the metadata (the dimension table) while allowing the value table (the fact table) to grow.

Metadata (Dimension Table)

siteId	lineId	machineId	tag	tagId	unit	interpolation	valuetype
Site 1	MachineA	Line 1	Temperature	Site 1.Line 1.MachineA.Temperature123	s	linear	numeric
Site 1	MachineA	Line 1	Pressure	Site 1.Line 1.MachineA.Pressure123	megadonut/coffee	linear	numeric
Site 1	MachineA	Line 1	Power	Site 1.Line 1.MachineA.Power123	ft/s	linear	numeric
Site 1	MachineA	Line 1	State_s	Site 1.Line 1.MachineA.State_s123	step	linear	string
Site 1	MachineA	Line 2	Temperature	Site 1.Line 2.MachineA.Temperature123	degC	linear	numeric

Data (Fact Table)

TS	tagId	valuetype	Value_S	Value_D
2022-11-04T20:17:49	Site 1.Line 1.MachineA.Temperature123	numeric		36.76654
2022-11-04T20:17:49	Site 1.Line 1.MachineA.Pressure123	numeric		-214.179
2022-11-04T20:17:49	Site 1.Line 1.MachineA.Power123	numeric		-33.6876
2022-11-04T20:17:49	Site 1.Line 1.MachineA.State_s123	string	strval
2022-11-04T20:17:49	Site 1.Line 2.MachineA.Temperature123	numeric		41.31567
2022-11-04T20:17:49	Site 1.Line 2.MachineA.Pressure123	numeric		-87.6572
2022-11-04T20:17:49	Site 1.Line 2.MachineA.Power123	numeric		14.04372
2022-11-04T20:17:49	Site 1.Line 2.MachineA.State_s123	string	strval

The configuration for processing data from both tables is as follows:

{
  "Id": "DataAndMetadata",
  "Name": "Data",
  "SchemaName": "",
  "TimeColumn": "TS",
  "DataColumns": [
    "Value_D",
    "Value_S"
  ],
  "GroupBy": [
      "siteId",
      "lineId",
      "machineId",
      "tag"
  ],
  "LastGroupAsTagName": true,
  "ColumnId": "tagId",
  "MetadataTable": {
    "Name": "Metadata",
    "SchemaName": "",
    "UniqueKeyColumnName": "tagId",
    "ValueTypeColumnName": "valuetype",
    "DataColumnsTypes": {
      "Value_S": "string",
      "Value_D": "numeric"
      }
    }
  }

Configuration Details:

Config Item	Description
MetadataTable	A section related to mapping metadata with actual data
Name	Name of a table with metadata
SchemaName	Name of DB schema which contains a table
UniqueKeyColumnName	The name of the column that stores the unique tag key
ValueTypeColumnName	The name of the column where the tag data type is stored
DataColumnsTypes	A map in which the key is the column name of the data table, and the value is one of the types listed in the column of the metadata table, which is specified in the "ValueTypeColumnName" field

Virtual Tags (Datasets)

Virtual tags allow you to execute SQL queries dynamically by defining reusable configurations. They support parameters, enabling flexible data retrieval and seamless integration with user interfaces. There are two primary approaches:

1. Using a Query tag from Tags and Writing SQL Query Manually: The "Query from Tags" feature lets you manually write SQL queries.

2. Using Virtual Tags with Hardcoded SQL: Virtual tags allow you to define reusable configurations with predefined SQL queries. These queries can include dynamic parameters, making them adaptable to runtime inputs.

Parameters in Virtual Tags

Parameters in virtual tags are placeholders within SQL queries that allow dynamic value injection at runtime. Each parameter consists of:

Name: The identifier for the parameter (e.g., temp, limit).
Default Value: An initial value assigned in the configuration.

Parameter Behavior:

• Default Value Provided: The default value is used unless explicitly overridden at runtime.
• No Default Value: The virtual tag relies on external input (e.g., from a user interface or API) to supply the parameter value during execution.

Example 1: Filtering Data with a Parameterized Threshold

This example defines a virtual tag, "dst2", to retrieve data based on a temperature threshold. The configuration includes a parameter for the temperature (temp), which allows dynamic filtering. The query also includes a LIMIT clause to restrict the results to a maximum of 10 rows, ensuring efficient data retrieval.

{
  "name": "dst2",
  "query": "SELECT * FROM tabular_data WHERE temperature > {{temp}} LIMIT 10",
  "parameters": {
    "temp": 10.0
  }
}

Config Item	Description
name	A unique identifier for the virtual tag. This name will appear in tag search results.
query	The SQL query to be executed. It includes the dynamic parameter {{temp}} that can be replaced during runtime.
parameters	Defines {{temp}} as a parameter with a default value of 10.0. This value is used if no runtime input is provided.

Explanation

Default Behavior: The query retrieves up to 10 rows where the temperature is greater than 10.0 (the default value of temp).
Dynamic Updates: At runtime, the temp value can be adjusted (e.g. via UI and script) to apply a different threshold without changing the configuration.

Use Case: Monitoring sensor data for temperatures exceeding specific thresholds or dynamically filtering datasets for different scenarios.

Why It’s Useful: This configuration makes the virtual tag reusable and flexible, enabling quick adjustments to data filtering criteria without modifying the underlying SQL query.

Example 2: Implementing Pagination with Dynamic Parameters

When working with large datasets, pagination allows you to retrieve manageable chunks of data using SQL's LIMIT and OFFSET clauses. The following example demonstrates how to implement a paginated query with dynamic parameters.

{
  "name": "paginated_data",
  "query": "SELECT column1, column2, column3 FROM tableName LIMIT {{limit}} OFFSET {{offset}}",
  "parameters": {
    "limit": 100,
    "offset": 0
  }
}

Config Item	Description
name	A unique identifier for the virtual tag. This name will appear in tag search results.
query	The SQL query to be executed. It includes the dynamic parameters {{limit}} and {{offset}}that can be replaced during runtime.
parameters	Defines limit and offset as parameters with default values of 100 and 0, respectively. These values are used if no runtime input is provided.

Explanation

Default Behavior: Retrieves up to 100 rows (limit = 100) starting from the first row (offset = 0).
Dynamic Updates: Users can override limit and offset values at runtime, enabling control over the number of rows retrieved and their starting point.
Use Case: Ideal for user interfaces that display large datasets in a paginated format, allowing smooth navigation and exploration.
Benefits: Flexible and efficient data retrieval supports interactive exploration of large datasets.

Adjusting Parameters via the User Interface
To allow users to update parameters dynamically, you can integrate input fields, buttons, and a table in your user interface. Ensure that the component variable names align with those referenced in the example script.

UI Components

• Limit Input Field: Allows users to specify the maximum number of rows to retrieve (inLimit in the script).
• Offset Input Field: Specifies the starting row index for data retrieval (inOffset in the script).
• Button: Executes the query when clicked.
• Table Component: Displays the query results (tblData in the script).

Mapping the Query to the Table

• Locate the virtual tag (paginated_data in this example) in the tag search.
• Drag and drop the tag onto the table component to bind it for display.

Implementation Script

Below is the script to connect the UI components to the virtual tag. Add this script to the button’s onClick action to trigger the query and refresh the table.

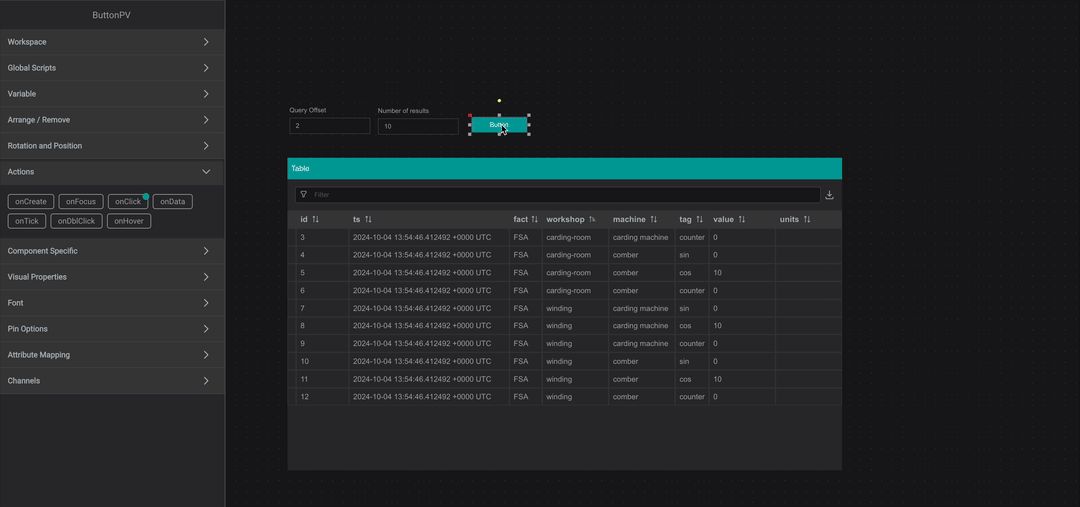

Added script to the onClick action©

// Retrieve table component linked to the dataset tag
const tblData = getComponent('tblData');

// Get input values from UI components
const inLimit = getComponent('inLimit');
const inOffset = getComponent('inOffset');

// Update query parameters with input values
tblData.SetQueryParameters({
    "limit": inLimit.settings.value,
    "offset": inOffset.settings.value
});

// Refresh the table to display updated results
tblData.snapshot();

Workflow

1. Set Values: Enter values for Limit and Offset in the input fields.
2. Run Query: Click the button to execute the query with the updated parameters.
3. View Results: The table refreshes to display data based on the new parameter values.

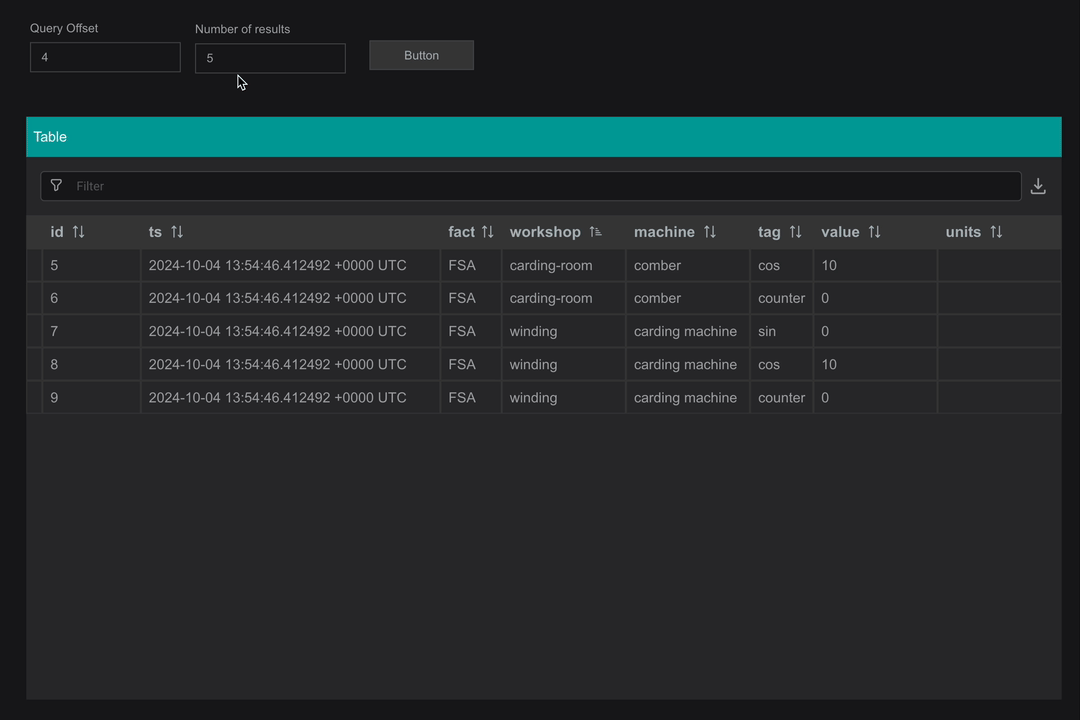

Implementing Pagination with Dynamic Parameters

Write data Tags

This type of tags allow to user to execute custom INSERT|UPDATE|DELETE queries to DB.

This type of tags has the following configuration:

{
  "name": "addRecord",
  "query": "INSERT INTO tabular_data (tsCol, valueCol) VALUES ({{ts}}, {{temp}})",
  "parameters": {
    "timeColumn": "ts",
    "ts": 0,
    "temp": 10.0
  }
}

Config Item	Description
Name	The name of the virtual tag.
Query	The SQL query that will be executed. It can contain specific arguments.
Parameters	A map of parameters that can be injected into the query. The parameters must contain the 'timeColumn' property, whose value is the name of the placeholder to which the timestamp value will be passed.

By default, the time column format is "2006-01-02T15:04:05Z07:00. If you need to change the time format, just add the "timeFormat" property with the format you need to the Parameters`. How to make the time format string is described here.

For example, date format in Oracle DB is configured as 'YYYY.MM.DD HH24:MI:SS', so the write data Tag will look like this:

{
  "name": "addRecord",
  "query": "INSERT INTO tabular_data (tsCol, valueCol) VALUES ({{ts}}, {{temp}})",
  "parameters": {
    "timeColumn": "ts",
    "timeFormat": "2006.01.02 15:04:05",
    "ts": 0,
    "temp": 10.0
  }
}

Write data tags usage example

In this example, we will create a button, when clicked, the write data tag will execute the query configured in it.

1. Define write data Tag configuring it in the driver's DB schema settings.

For example, let's define write data tag with query that inserts some value and a timestamp into a 'tabular_data' table with columns 'tsCol' and 'valueCol'.

{
  "writeDataTags": [
    {
      "name": "Write_Value",
      "query": "INSERT INTO tabular_data (tsCol, valueCol) VALUES ({{ts}}, {{value}})",
      "parameters": {
        "timeColumn": "ts",
        "ts": 0,
        "value": 0
      }
    }
  ]
}

2. Write a script that sends the 'writedata' request to the driver when the button is pressed.

IMPORTANT! The value of the time column in the request sended from UI must be set in milliseconds, i.e. you need to call valueOf() method of the Date class.

let val = Math.random() * 100;

let writeData = async (val) => {
   let req =  {
   	"ts": new Date().valueOf(),
   	"value": val
   };

   let resList = callDriver({}, 'writedata', req, [this.channels[0].fqn]);
}

await writeData(val);

3. Search tag 'Write_Value' and drop it on the Button.

That's all. Now, by clicking on our button, you can send a request to insert data.

Configuration example

Configure driver to connect to the database with tabular table tabular_data and asset-tree table asset_tree_data. Additionally define virtual tag to receive temperature above 10 degrees by default.

{
  "tableSettings": [
    {
      "Id": "tabular_data",
      "Name": "tabular_data",
      "TimeColumn": "ts",
      "TimeUnit": "",
      "DataColumns": [
        "compressor_power",
        "optimizer",
        "relative_humidity",
        "temperature",
        "wet_bulb"
      ],
      "GroupBy": null,
      "LastGroupAsTagName": false
    },
    {
      "ID": "asset_tree_data",
      "Name": "asset_tree_data",
      "TimeColumn": "ts",
      "DataColumns": [
        "value"
      ],
      "GroupBy": [
        "siteid",
        "machineid",
        "lineid",
        "tag"
      ],
      "LastGroupAsTagName": true,
      "TagProperties": {
        "uom": "units"
      }
    }
  ],
  "datasetTags": [
    {
      "name": "GetTemperatureAbove10degrees",
      "query": "SELECT * FROM tabular_data WHERE temperature > {{temp}} LIMIT 10",
      "parameters": {
        "temp": 10.0
      }
    }
  ]
}

Golang datetime string format

Unit	Golang Layout	Examples	Note
Year	06	21, 81, 01
Year	2006	2021, 1981, 0001
Month	January	January, February, December
Month	Jan	Jan, Feb, Dec
Month	1	1, 2, 12
Month	01	01, 02, 12
Day	Monday	Monday, Wednesday, Sunday
Day	Mon	Mon, Wed, Sun
Day	2	1, 2, 11, 31
Day	02	01, 02, 11, 31	zero padded day of the month
Day	_2	⎵1, ⎵2, 11, 31	space padded day of the month
Day	002	001, 002, 011, 031, 145, 365	zero padded day of the year
Day	__2	⎵⎵1, ⎵⎵2, ⎵11, ⎵31, 365, 366	space padded day of the year
Part of day	PM	AM, PM
Part of day	pm	am, pm
Hour 24h	15	00, 01, 12, 23
Hour 12h	3	1, 2, 12
Hour 12h	03	01, 02, 12
Minute	4	0, 4 ,10, 35
Minute	04	00, 04 ,10, 35
Second	5	0, 5, 25
Second	05	00, 05, 25
10-1 to 10-9 s	.0 .000000000	.1, .199000000	Trailing zeros included
10-1 to 10-9 s	.9 .999999999	.1, .199	Trailing zeros omitted
Time zone	MST	UTC, MST, CET
Time zone	Z07	Z, +08, -05 Z is for UTC
Time zone	Z0700	Z, +0800, -0500 Z is for UTC
Time zone	Z070000	Z, +080000, -050000 Z is for UTC
Time zone	Z07:00	Z, +08:00, -05:00 Z is for UTC
Time zone	Z07:00:00	Z, +08:00:00, -05:00:00 Z is for UTC
Time zone	-07	+00, +08, -05
Time zone	-0700	+0000, +0800, -0500
Time zone	-070000	+000000, +080000, -050000
Time zone	-07:00	+00:00, +08:00, -05:00
Time zone	-07:00:00	+00:00:00, +08:00:00, -05:00:00
