Adding a Snowflake Connection

IOTA Vue connects to Snowflake databases using the Generic SQL Driver. This driver comes pre-configured and ready to use. To establish a new Snowflake database connection, follow these steps:

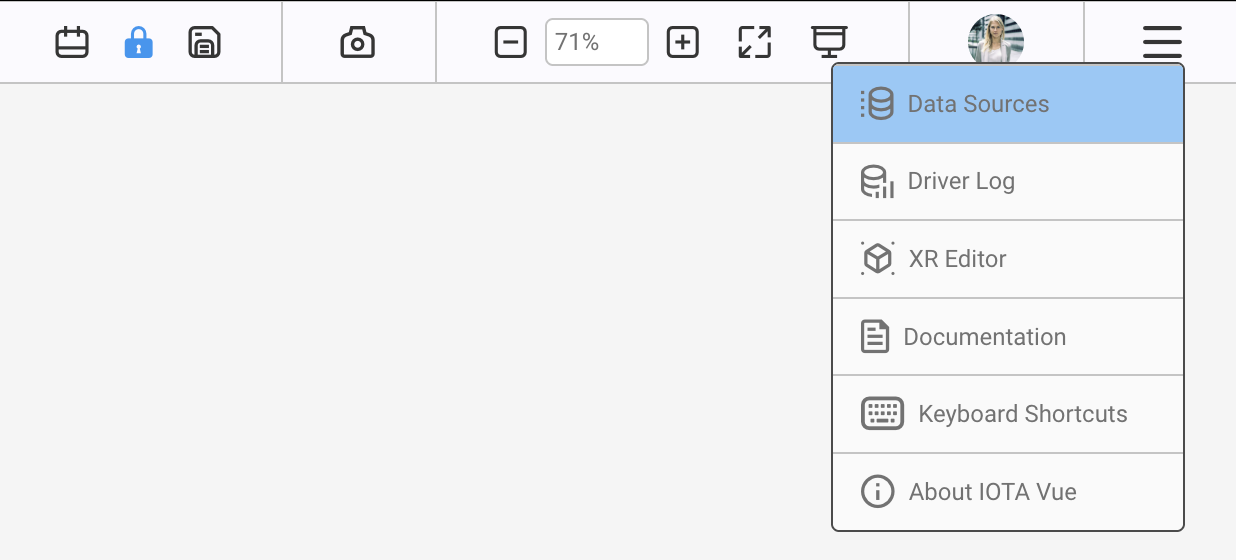

Click the hamburger icon (☰) in the top-right corner and select Data Sources.

Select your Region.
Select your Site.
Open the GenericSQL tab.

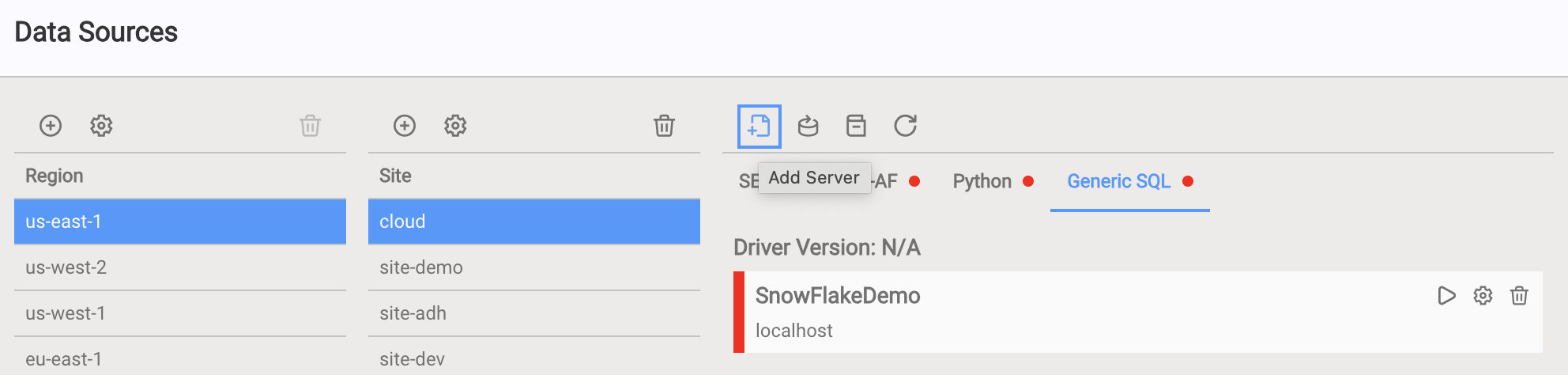

Click the “Add” button in the top-left corner.

This opens the Snowflake Connection dialog.

About Regions and Sites (expand for details)

IOTA Vue organizes database connections into a flexible, mesh-like topology:

Region usually represents a geographical area or logical group (e.g., us-east-1).
Site typically refers to a specific building, plant, or local deployment (e.g., siteB).

The installer already includes pre-configured Regions and Sites for simplicity, but users can create additional ones if needed:

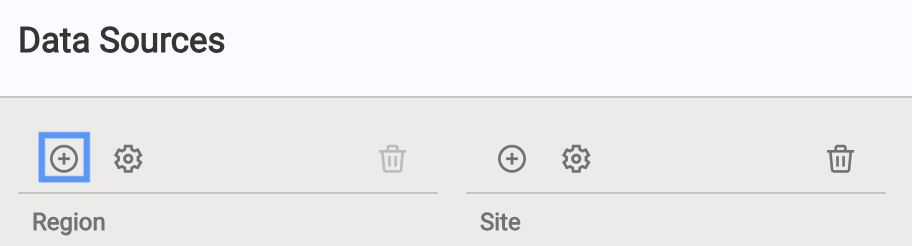

Add a Region:
Click Add under Regions, provide a name and optional channel abbreviation, and click Apply.

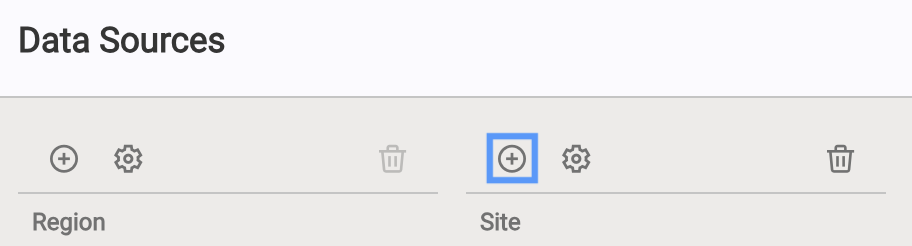

Add a Site:
Select a Region, click Add under Sites, enter a site name, select GenericSQL as the driver type, and click Apply.

This structure helps organize and manage multiple database connections efficiently.

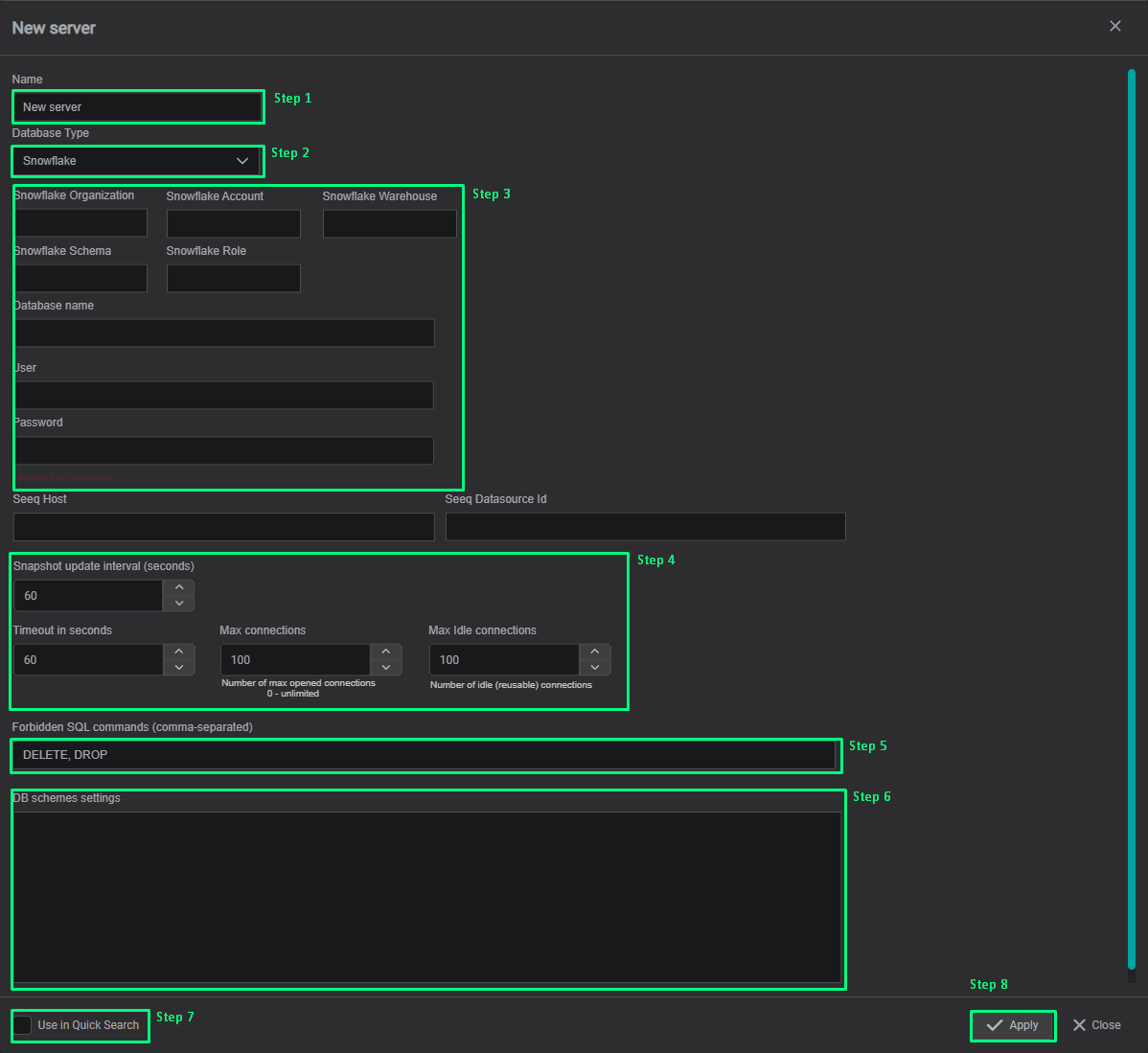

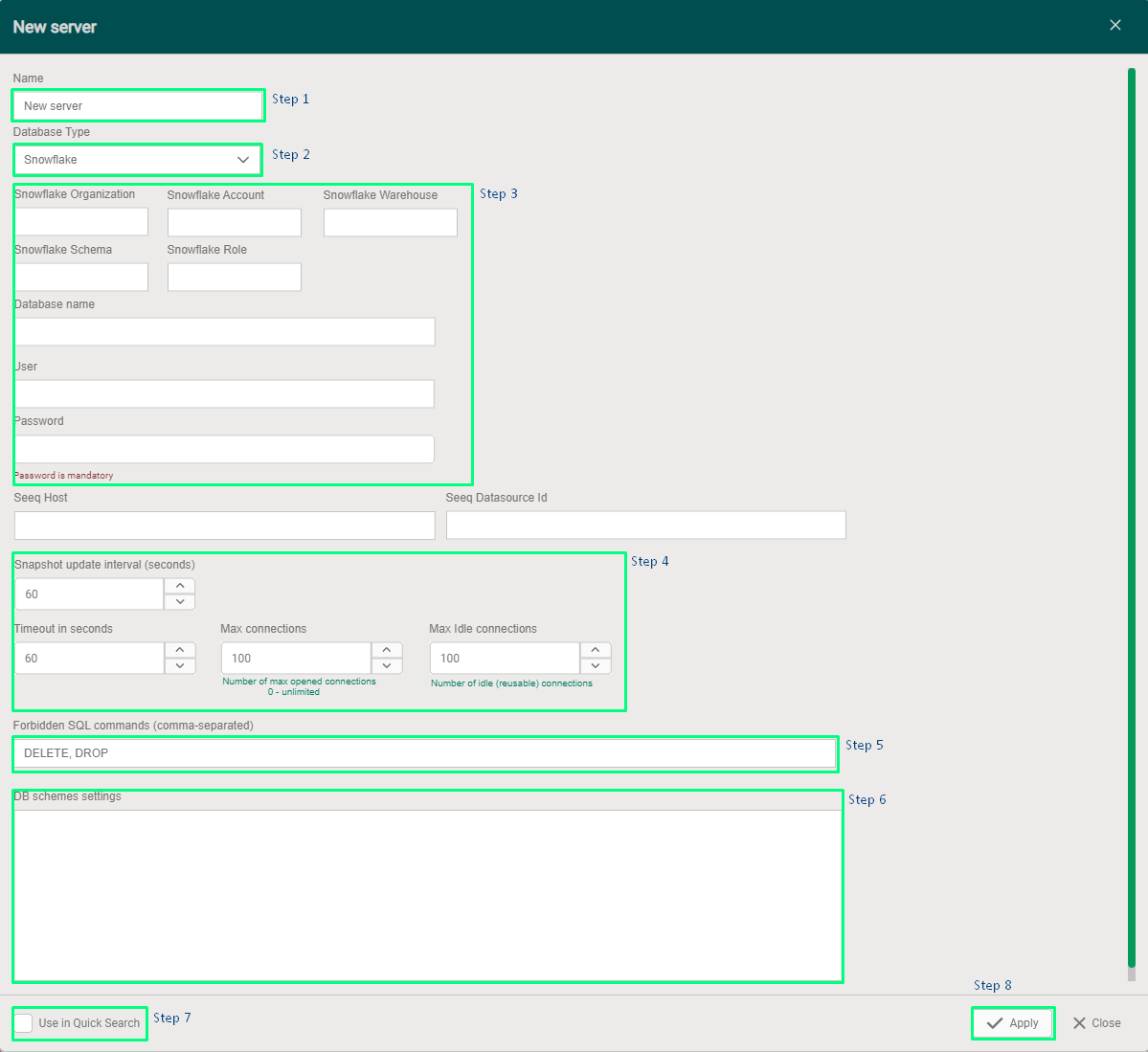

Configuring the Snowflake Connection

The Snowflake connection dialog defines how IOTA Vue connects to your Snowflake database.

Follow these configuration steps:

1. Name Your Connection
Provide a clear, recognizable name for your connection. This name will prefix all search results.

2. Select Database Type
Select Snowflake from the database type dropdown.

3. Enter Connection Information
Fill in the required details to establish your connection:

Authentication type

Details Supported Authentication Methods

IOTA Vue supports two authentication methods for connecting to Snowflake:

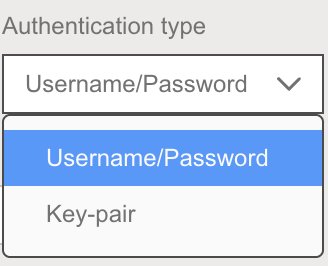

1. Username & Password Authentication
In order to use your Snowflake username and password, select Username/Password in the Authentication type dropdown:

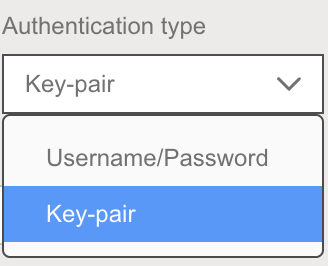

2. Key-Pair (RSA) Authentication
In order to use a key-pair, select Key-pair in the Authentication type dropdown:

To generate a private key and configure access, follow
Snowflake’s official guide.

Notes

When using Key-Pair authentication:

Paste the entire private key, including the BEGIN and END lines.
If the private key is encrypted, enter the passphrase in the corresponding field.

Account details (Organization, Account, Warehouse, Schema, Role)

Where to find your Organization, Account, User, and Role

You can find this information in your Snowflake account:

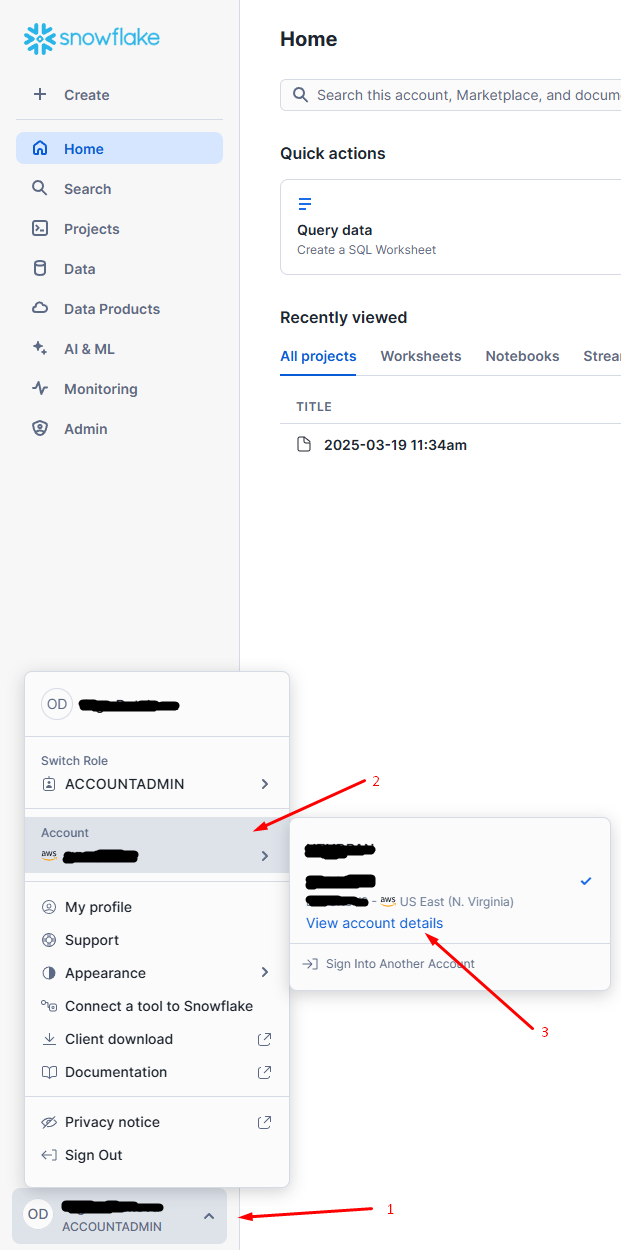

Click your profile icon in the bottom-left corner of the Snowflake UI.
Select Account.
Click View account details.

The details page will show all the required values.

Credentials based on your selected authentication type

4. (Optional) Define Connection Timeout
Set how long the driver waits for responses from Snowflake before timing out.

5. (Optional) Restrict SQL Commands
Specify any SQL commands that should be blocked for compliance or security purposes.

6. Database Schema Settings
Configure schema-specific options if needed. For details, see Database schema settings.

7. (Optional) Quick Search Availability
Check Use in Quick Search if you want the connection to appear in the quick search sidebar. Otherwise, it will only be available via Advanced Search.

8. Save Connection
Click Apply to save your configuration.

If enabled, your connection immediately becomes available in Quick Search.

Connection Settings Overview

Use the table below as a reference when filling out the connection form.
Some fields depend on the selected authentication method.

Setting	Required When	Description
Snowflake Organization	Always	Your Snowflake organization name
Snowflake Account	Always	Your assigned Snowflake account name
Snowflake Warehouse	Always	Virtual warehouse used to execute queries
Snowflake Schema	Always	Target schema within your database
Snowflake Role	Always	Role used to access resources
Authentication Type	Always	Choose between Username/Password and Key-pair
Database Name	Always	The name of the database to connect to
User	Always	Your Snowflake username
Password	Only for Username/Password	Your Snowflake login password
Client Private Key	Only for Key-pair authentication	Paste the full contents of your private key
Passphrase	If your private key is encrypted	Password protecting your private key

Driver Configuration Details

The Snowflake Driver container automatically retrieves its configuration settings from environment variables at startup.

Tips

The Snowflake Driver container provided by IOTA Vue comes fully pre-configured, requiring no manual configuration after deployment.

Configuration parameters

Environment name	Required	Default Value	Data Type	Description
DRIVERID	⚫	""	string	Driver Id - used for logging purposes only
LOG_LEVEL	⚫	ERROR	string	Debug verbose level: ERROR, DEBUG, INFO
NATS_HOST	🟢	null	string	NATs server url with port
SEED_KEY_PATH	🟢	null	string	NATs NKey public key string. Private key must be defined in file: "privatekey.nk"
RQS_TOPIC	🟢	null	string	NATs topic on which driver listens for requests
HEALTH_TOPIC	⚫	""	string	NATs topic for sending driver's health
HEALTH_SCHEDULING	⚫	10000	int	How often in milliseconds to send health data. Default: 10000 = 10 sec
LOGS_TOPIC	⚫	""	string	NATs topic for sending driver's logs
METRICS_TOPIC	⚫	""	string	NATs topic for sending driver's metrics
METRICS_SCHEDULING	⚫	30000	int	How often in milliseconds to send metrics data. Default: 30000 = 30 sec
ENABLE_METRICS	⚫	true	bool	Enables metrics reporting

Database schema settings

This section provides instructions on how to configure the generic driver for data ingestion from SQL-like databases.

Settings are the JSON object described bellow

{
  "tableSettings": [
    {
      "Id": string,
      "Name": string,
      "TimeColumn": string,
      "TimeUnit": string,
      "TimeStringFormat": string,
      "DataColumns": []string,
      "GroupBy": []string,
      "LastGroupAsTagName": bool,
      "IntervalForSnapshotsInMin": integer,
      "TagPropertiesMap": JSON,
      "SchemaName": string,
      "MetadataTable": JSON
    }
  ],
  "datasetTags": [
    {
      "name": string,
      "query": string,
      "parameters": JSON
    }
  ],
  "writeDataTags": [
    {
      "name": string,
      "query": string,
      "parameters": JSON
    }
  ]
}

tableSettings

This section describes the DB tables structure.

Id - (required) table settings identifier
Name - (required) table name
SchemaName - name of the schema stores table
TimeColumn - (required) name of the column stores timestamp or datetime string
TimeUnit - units of the time
TimeStringFormat - format of the datetime string. Used when the TimeColumn stores datetime as string. The format is described here Golang datetime string format
DataColumns - (required) list of the columns names stores tag values
GroupBy - list of the columns names stores asset tree. Used with Asset-Like, Multi tagged Asset-like and Metadata-Value tables
LastGroupAsTagName - (required) flag represents is last element in the GroupBy list is tag name column
TagPropertiesMap - map of the key-value pairs where key is one of ["Uom", "Description"] and value is column name related to key tag property
- Uom - units of the tag measurement
- Description - tag description
IntervalForSnapshotsInMin - minutes to narrow scanning a table, it is used for tabular data, if you know that your columns is updated every day, you can specify it in this property, and the driver will build a query like give me a snapshot in this range: now()-interval. Instead of give me snapshot order by time DESC, which scans the whole table. This option will significantly improve the speed of the query.

datasetTags

This section describes the custom queries to DB. This queries will be displayed in tag search.

name - unique query name
query - query string. May contains parameters placeholders
parameters - map of the key-value pairs where key is the name of query parameter and value is the parameter value

See detailed description of the configuration.

writeDataTags

This section describes the custom INSERT|UPDATE|DELETE queries to DB.

name - unique query name will be displayed in the Tag search panel.
query - query string. May contains parameters placeholders
parameters - map of the key-value pairs where key is the name of query parameter and value is the parameter value

See detailed description of the configuration.

Reading Data from Tabular Tables

In statistics, tabular data refers to data organized in a table format with rows and columns. Consider the following example of tabular data:

ID	compressor_power	relative_humidity	temperature	wet_bulb	ts
0	0.0029228	62.35181596	79.64134287	70.29920291	2022-11-03 12:19
1	0.0029228	62.38810345	79.63862069	70.30710957	2022-11-03 12:20
2	0.0029228	62.4371127	79.63413962	70.31706517	2022-11-03 12:21
3	0.0029228	62.48612195	79.62965854	70.32702076	2022-11-03 12:22

Each column in this table represents a TAG. To configure the driver to read this data, use the following configuration:

{
  "Id": "tabular_data",
  "Name": "tabular_data",
  "TimeColumn": "ts",
  "DataColumns": [
    "compressor_power",
    "optimizer",
    "relative_humidity",
    "temperature",
    "wet_bulb"
  ],
  "GroupBy": null,
  "LastGroupAsTagName": false
}

Configuration Details:

Config Item	Description
Id	Unique ID used internally by the driver
Name	Name of the database's table
TimeColumn	Specifies the column containing the time series
DataColumns	Array of columns to convert into tags
GroupBy	Should be empty or null for tabular data
LastGroupAsTagName	Should be false for tabular data

This configuration allows the driver to effectively handle and read tabular data from SQL-like databases.

Reading Data from Asset-like Tables

Additionally, data can be stored in the following table format:

ID	ts	siteid	machineid	lineid	tag	value
1	'2022-11-03 21:27:47'	Site 1	MachineA	Line 1	Temperature	-47.43
2	'2022-11-03 21:27:47'	Site 1	MachineA	Line 1	Pressure	25.50
3	'2022-11-03 21:27:47'	Site 1	MachineA	Line 1	Power	-14.03
4	'2022-11-03 21:27:47'	Site 1	MachineB	Line 1	Temperature	79.61
5	'2022-11-03 21:27:47'	Site 1	MachineB	Line 1	Pressure	-27.63
6	'2022-11-03 21:27:47'	Site 1	MachineB	Line 1	Power	99.65
7	'2022-11-03 21:27:47'	Site 1	MachineC	Line 1	Temperature	32.08
8	'2022-11-03 21:27:47'	Site 1	MachineC	Line 1	Pressure	79.92
9	'2022-11-03 21:27:47'	Site 1	MachineC	Line 1	Power	162.36
10	'2022-11-03 21:27:47'	Site 2	MachineA	Line 1	Temperature	91.21
11	'2022-11-03 21:28:47'	Site 2	MachineB		Power	38.12
12	'2022-11-03 21:41:47'	Site 1	MachineB		Pressure	-27.70

This table structure can be represented as an asset tree:

Site1
- Line 1
  - MachineA
    - Temperature
    - Pressure
    - Power
  - MachineB
    - Temperature
    - Pressure
    - Power
  - MachineC
    - Temperature
    - Pressure
    - Power
Site2
- Line 1
  - MachineA
    - Temperature
  - MachineB
    - Power

The configuration for processing such table data is as follows:

{
  "ID": "asset_tree_data",
  "Name": "asset_tree_data",
  "TimeColumn": "ts",
  "DataColumns": ["value"],
  "GroupBy": ["siteid", "lineid", "machineid", "tag"],
  "LastGroupAsTagName": true
}

Configuration Details:

Config Item	Description
Id	Unique ID used internally by the driver
Name	Name of the database's table
TimeColumn	Specifies the column containing the time series
DataColumns	Array of columns to convert into tags
GroupBy	An array that defines the hierarchy for creating the asset tree structure
LastGroupAsTagName	Should be true, as we want to show the 'value' column as the value of the last tag in the hierarchy

Reading Data from Multi tagged Asset-like tables

Data can be stored in the following table format:

ts	siteid	machineid	lineid	Temperature	Pressure
'2022-11-03 21:27:47'	Site 1	MachineA	Line 1	25.50	-47.43
'2022-11-03 21:27:47'	Site 1	MachineB	Line 1	34.0	79.61
'2022-11-03 21:27:47'	Site 2	MachineA	Line 1	45.76	91.21

The peculiarity of this type of tables is that each record has the data of the asset tree and the values of all its tags, the names of which are the names of the corresponding columns of the table.

This table structure can be represented as an asset tree:

Site1
- Line 1
  - MachineA
    - Temperature
    - Pressure
  - MachineB
    - Temperature
    - Pressure
  - MachineC
    - Temperature
    - Pressure
Site2
- Line 1
  - MachineA
    - Temperature
    - Pressure

The configuration for processing such table data is as follows:

{
  "ID": "hybrid_asset_tree",
  "Name": "hybrid_asset_tree",
  "TimeColumn": "ts",
  "DataColumns": ["Temperature", "Pressure"],
  "GroupBy": ["siteid", "lineid", "machineid"],
  "LastGroupAsTagName": false
}

Configuration Details:

Config Item	Description
Id	Unique ID used internally by the driver
Name	Name of the database's table
TimeColumn	Specifies the column containing the time series
DataColumns	Array of columns to convert into tags
GroupBy	An array that defines the hierarchy for creating the asset tree structure
LastGroupAsTagName	Should be false, as we want to show the 'DataColumns' list columns as the tags in the hierarchy

Reading data From Metadata and Value Data

Sometimes data is stored in a dimension table and a fact table. This is a popular model choice because it allows flexibility in the metadata (the dimension table) while allowing the value table (the fact table) to grow.

Metadata (Dimension Table)

siteId	lineId	machineId	tag	tagId	unit	interpolation	valuetype
Site 1	MachineA	Line 1	Temperature	Site 1.Line 1.MachineA.Temperature123	s	linear	numeric
Site 1	MachineA	Line 1	Pressure	Site 1.Line 1.MachineA.Pressure123	megadonut/coffee	linear	numeric
Site 1	MachineA	Line 1	Power	Site 1.Line 1.MachineA.Power123	ft/s	linear	numeric
Site 1	MachineA	Line 1	State_s	Site 1.Line 1.MachineA.State_s123	step	linear	string
Site 1	MachineA	Line 2	Temperature	Site 1.Line 2.MachineA.Temperature123	degC	linear	numeric

Data (Fact Table)

TS	tagId	valuetype	Value_S	Value_D
2022-11-04T20:17:49	Site 1.Line 1.MachineA.Temperature123	numeric		36.76654
2022-11-04T20:17:49	Site 1.Line 1.MachineA.Pressure123	numeric		-214.179
2022-11-04T20:17:49	Site 1.Line 1.MachineA.Power123	numeric		-33.6876
2022-11-04T20:17:49	Site 1.Line 1.MachineA.State_s123	string	strval
2022-11-04T20:17:49	Site 1.Line 2.MachineA.Temperature123	numeric		41.31567
2022-11-04T20:17:49	Site 1.Line 2.MachineA.Pressure123	numeric		-87.6572
2022-11-04T20:17:49	Site 1.Line 2.MachineA.Power123	numeric		14.04372
2022-11-04T20:17:49	Site 1.Line 2.MachineA.State_s123	string	strval

The configuration for processing data from both tables is as follows:

{
  "Id": "DataAndMetadata",
  "Name": "Data",
  "SchemaName": "",
  "TimeColumn": "TS",
  "DataColumns": [
    "Value_D",
    "Value_S"
  ],
  "GroupBy": [
      "siteId",
      "lineId",
      "machineId",
      "tag"
  ],
  "LastGroupAsTagName": true,
  "ColumnId": "tagId",
  "MetadataTable": {
    "Name": "Metadata",
    "SchemaName": "",
    "UniqueKeyColumnName": "tagId",
    "ValueTypeColumnName": "valuetype",
    "DataColumnsTypes": {
      "Value_S": "string",
      "Value_D": "numeric"
      }
    }
  }

Configuration Details:

Config Item	Description
MetadataTable	A section related to mapping metadata with actual data
Name	Name of a table with metadata
SchemaName	Name of DB schema which contains a table
UniqueKeyColumnName	The name of the column that stores the unique tag key
ValueTypeColumnName	The name of the column where the tag data type is stored
DataColumnsTypes	A map in which the key is the column name of the data table, and the value is one of the types listed in the column of the metadata table, which is specified in the "ValueTypeColumnName" field

Virtual Tags (Datasets)

There are two options for executing custom SQL queries:

Using a Query tag from Tags and Writing SQL Query Manually: This involves using the "Query from Tags" feature to manually write your SQL query.
Using Virtual Tags with Hardcoded SQL: This option involves utilizing virtual tags that contain pre-defined SQL queries.

For example, let's define a virtual tag in the configuration, named "DST2," with the following settings:

{
  "name": "dst2",
  "query": "SELECT * FROM tabular_data WHERE temperature > {{temp}} LIMIT 10",
  "parameters": {
    "temp": 10.0
  }
}

Config Item	Description
Name	The name of the virtual tag.
Query	The SQL query that will be executed. It can contain specific arguments.
Parameters	A map of parameters that can be injected into the query. If this map is empty, the argument will be injected from the UI settings.

Write data Tags

This type of tags allow to user to execute custom INSERT|UPDATE|DELETE queries to DB.

This type of tags has the following configuration:

{
  "name": "addRecord",
  "query": "INSERT INTO tabular_data (tsCol, valueCol) VALUES ({{ts}}, {{temp}})",
  "parameters": {
    "timeColumn": "ts",
    "ts": 0,
    "temp": 10.0
  }
}

Config Item	Description
Name	The name of the virtual tag.
Query	The SQL query that will be executed. It can contain specific arguments.
Parameters	A map of parameters that can be injected into the query. The parameters must contain the 'timeColumn' property, whose value is the name of the placeholder to which the timestamp value will be passed.

By default, the time column format is "2006-01-02T15:04:05Z07:00. If you need to change the time format, just add the "timeFormat" property with the format you need to the Parameters`. How to make the time format string is described here.

For example, date format in Oracle DB is configured as 'YYYY.MM.DD HH24:MI:SS', so the write data Tag will look like this:

{
  "name": "addRecord",
  "query": "INSERT INTO tabular_data (tsCol, valueCol) VALUES ({{ts}}, {{temp}})",
  "parameters": {
    "timeColumn": "ts",
    "timeFormat": "2006.01.02 15:04:05",
    "ts": 0,
    "temp": 10.0
  }
}

Write data tags usage example

In this example, we will create a button, when clicked, the write data tag will execute the query configured in it.

Define write data Tag configuring it in the driver's DB schema settings.

For example, let's define write data tag with query that inserts some value and a timestamp into a 'tabular_data' table with columns 'tsCol' and 'valueCol'.

{
  "writeDataTags": [
    {
      "name": "Write_Value",
      "query": "INSERT INTO tabular_data (tsCol, valueCol) VALUES ({{ts}}, {{value}})",
      "parameters": {
        "timeColumn": "ts",
        "ts": 0,
        "value": 0
      }
    }
  ]
}

Write a script that sends the 'writedata' request to the driver when the button is pressed.

IMPORTANT! The value of the time column in the request sended from UI must be set in milliseconds, i.e. you need to call valueOf() method of the Date class.
let val = Math.random() * 100;

let writeData = async (val) => {
   let req =  {
   	"ts": new Date().valueOf(),
   	"value": val
   };

   let resList = callDriver({}, 'writedata', req, [this.channels[0].fqn]);
}

await writeData(val);

Search tag 'Write_Value' and drop it on the Button.

That's all. Now, by clicking on our button, you can send a request to insert data.

Configuration example

Configure driver to connect to the database with tabular table tabular_data and asset-tree table asset_tree_data. Additionally define virtual tag to receive temperature above 10 degrees by default.

{
  "tableSettings": [
    {
      "Id": "tabular_data",
      "Name": "tabular_data",
      "TimeColumn": "ts",
      "TimeUnit": "",
      "DataColumns": [
        "compressor_power",
        "optimizer",
        "relative_humidity",
        "temperature",
        "wet_bulb"
      ],
      "GroupBy": null,
      "LastGroupAsTagName": false
    },
    {
      "ID": "asset_tree_data",
      "Name": "asset_tree_data",
      "TimeColumn": "ts",
      "DataColumns": [
        "value"
      ],
      "GroupBy": [
        "siteid",
        "machineid",
        "lineid",
        "tag"
      ],
      "LastGroupAsTagName": true,
      "TagProperties": {
        "uom": "units"
      }
    }
  ],
  "datasetTags": [
    {
      "name": "GetTemperatureAbove10degrees",
      "query": "SELECT * FROM tabular_data WHERE temperature > {{temp}} LIMIT 10",
      "parameters": {
        "temp": 10.0
      }
    }
  ]
}

Golang datetime string format

Unit	Golang Layout	Examples	Note
Year	06	21, 81, 01
Year	2006	2021, 1981, 0001
Month	January	January, February, December
Month	Jan	Jan, Feb, Dec
Month	1	1, 2, 12
Month	01	01, 02, 12
Day	Monday	Monday, Wednesday, Sunday
Day	Mon	Mon, Wed, Sun
Day	2	1, 2, 11, 31
Day	02	01, 02, 11, 31	zero padded day of the month
Day	_2	⎵1, ⎵2, 11, 31	space padded day of the month
Day	002	001, 002, 011, 031, 145, 365	zero padded day of the year
Day	__2	⎵⎵1, ⎵⎵2, ⎵11, ⎵31, 365, 366	space padded day of the year
Part of day	PM	AM, PM
Part of day	pm	am, pm
Hour 24h	15	00, 01, 12, 23
Hour 12h	3	1, 2, 12
Hour 12h	03	01, 02, 12
Minute	4	0, 4 ,10, 35
Minute	04	00, 04 ,10, 35
Second	5	0, 5, 25
Second	05	00, 05, 25
10-1 to 10-9 s	.0 .000000000	.1, .199000000	Trailing zeros included
10-1 to 10-9 s	.9 .999999999	.1, .199	Trailing zeros omitted
Time zone	MST	UTC, MST, CET
Time zone	Z07	Z, +08, -05 Z is for UTC
Time zone	Z0700	Z, +0800, -0500 Z is for UTC
Time zone	Z070000	Z, +080000, -050000 Z is for UTC
Time zone	Z07:00	Z, +08:00, -05:00 Z is for UTC
Time zone	Z07:00:00	Z, +08:00:00, -05:00:00 Z is for UTC
Time zone	-07	+00, +08, -05
Time zone	-0700	+0000, +0800, -0500
Time zone	-070000	+000000, +080000, -050000
Time zone	-07:00	+00:00, +08:00, -05:00
Time zone	-07:00:00	+00:00:00, +08:00:00, -05:00:00
