Install/Uninstall

About 3 min

Download Installer

The IOTA to Python Driver installer is available on request. Please contact IOTA Software representative to obtain the latest driver version.

Tips

The provided installer contains all required configurations for specific Region\Site connectivity and secure communication. No additional configuration is necessary during installer execution.

Run the Installer

On the Windows machine, launch the IOTA Driver installer. Follow the installation process as indicated and if needed make sure to adjust the installation location.

Tips

Make sure to run the installer as Administrator. Otherwise, you will not have proper permissions for IOTA Driver service registration.

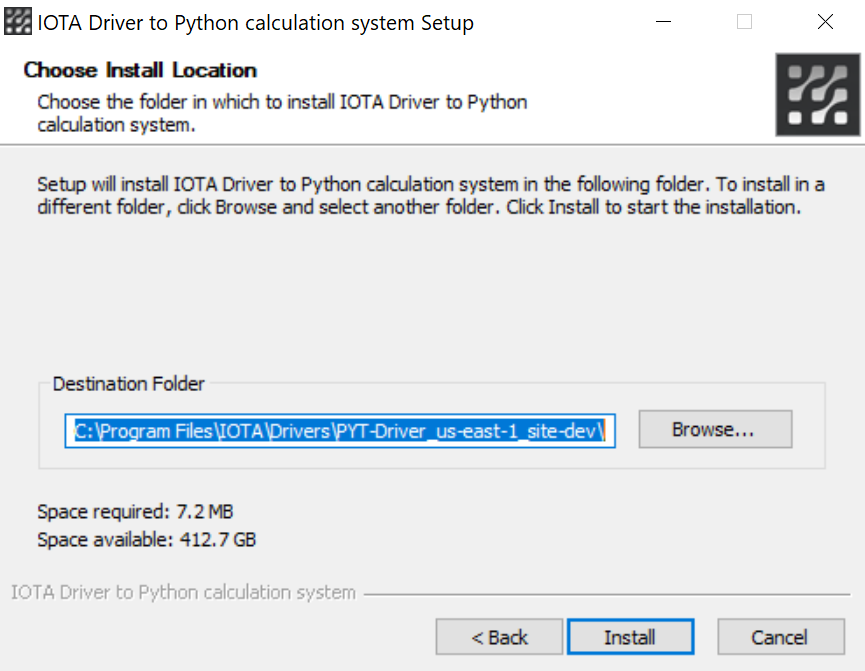

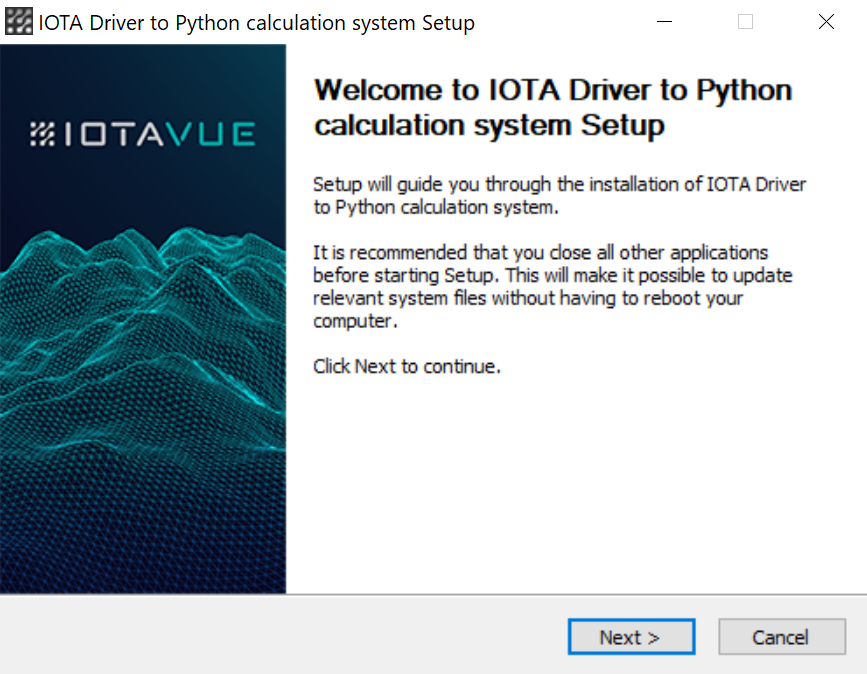

Installer Welcome Screen	Installation Location

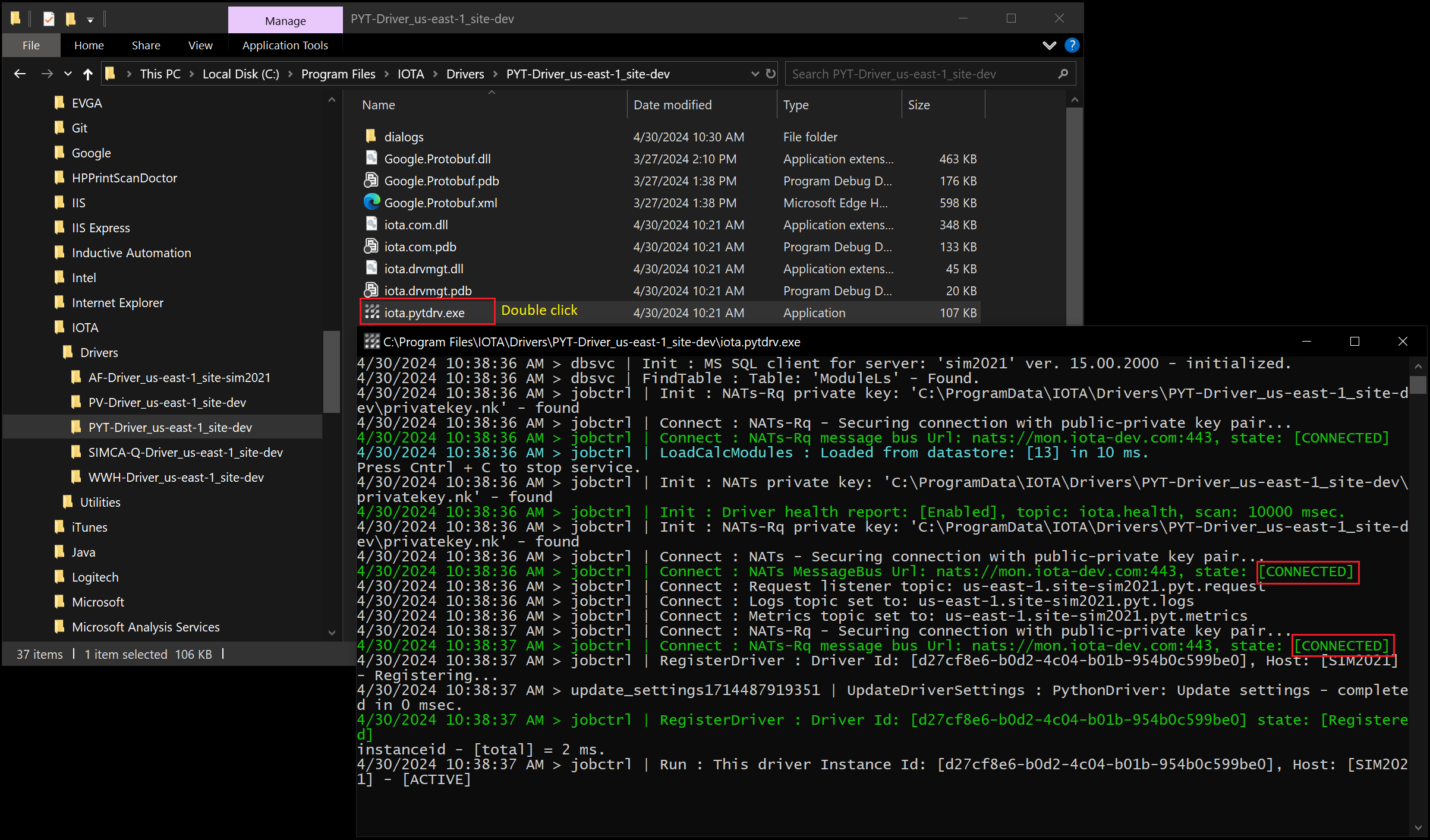

To check that the connection is all right, we recommend to start iota.pytdrv.exe from a Command prompt for a moment and make sure the connection to the message bus succeeded (all green messages). Close the application.

Warning

IOTA Python Driver DOES NOT install Python. Python must be downloaded and installed separately.
Make sure that pythondll path is defined in specific ProgramData driver's configuration file: iota.pytdrv.json

Configuration and Log Location

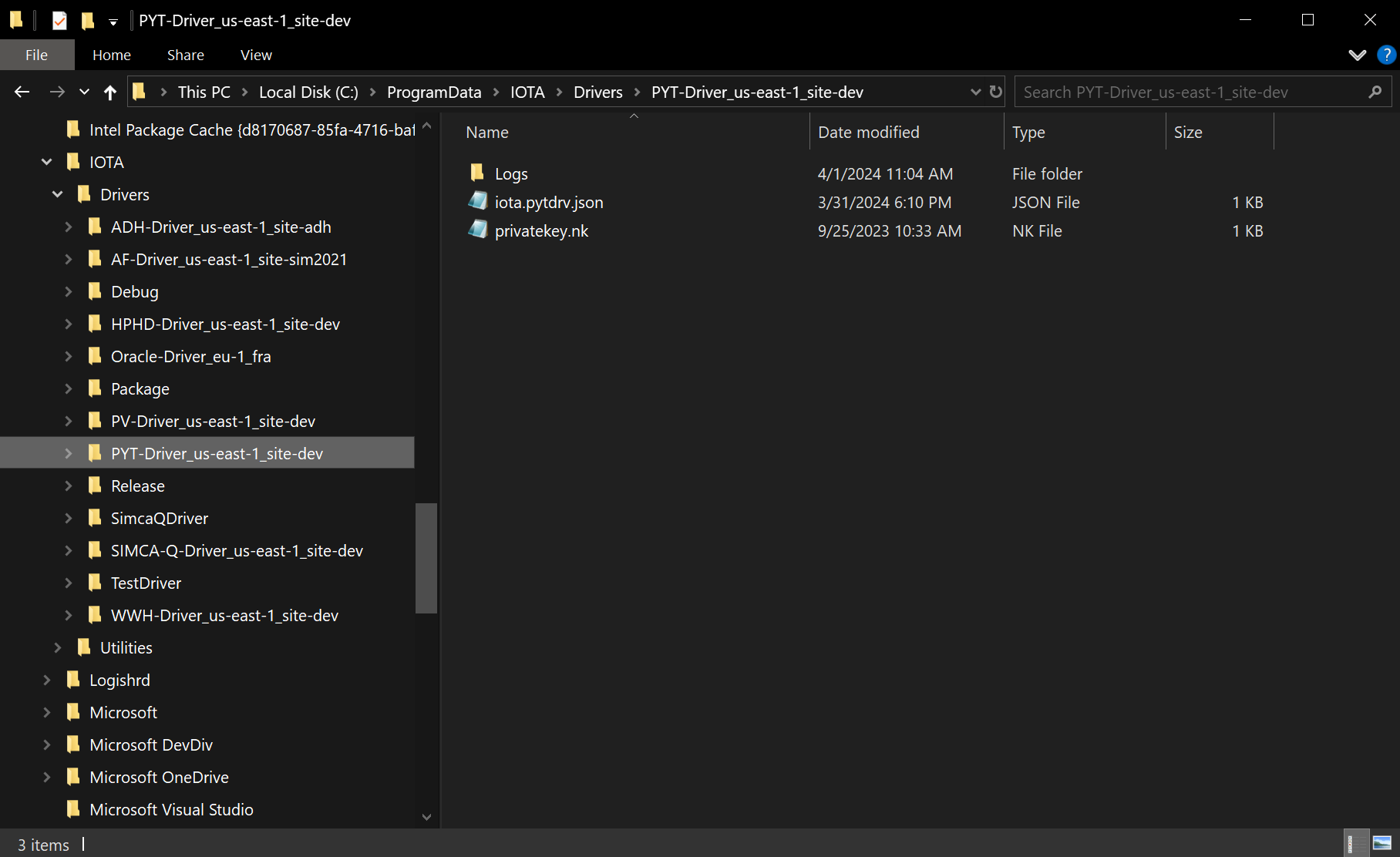

By default, the Python Driver installer creates a data folder for driver's configuration and logs inside of ProgramData folder as: {ProgramData}\IOTA\Drivers\PYT-Driver_{Region Name}_{Site Name}

For the first Python Driver installation, the installer copies an auto generated configuration (.json) file and private key file in this folder.

Info

Any subsequent Python Driver updates will not affect the configuration and private key files in ProgramData folder.

Run as a Service

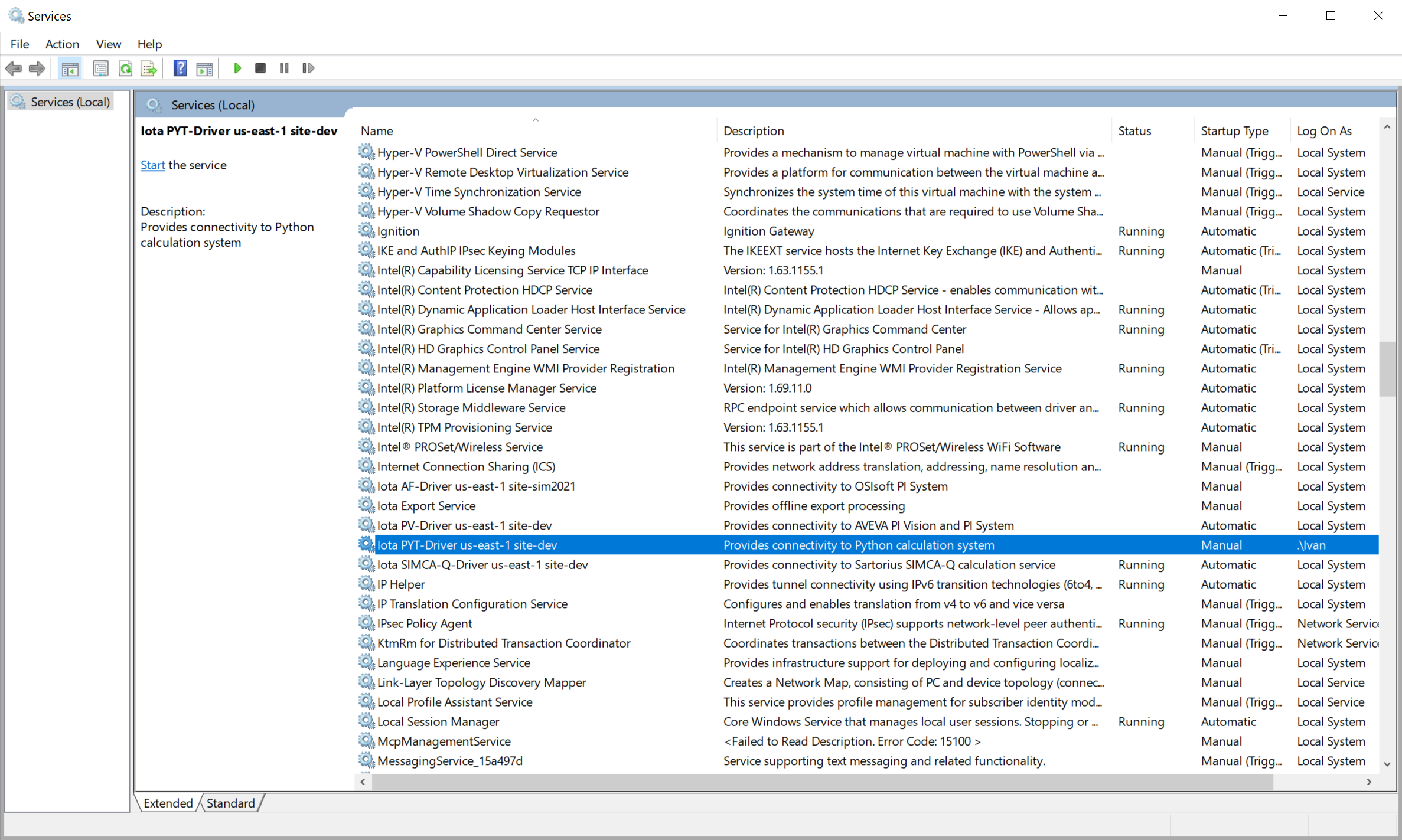

The IOTA Python Driver service can be started or stopped through either Service Manager:

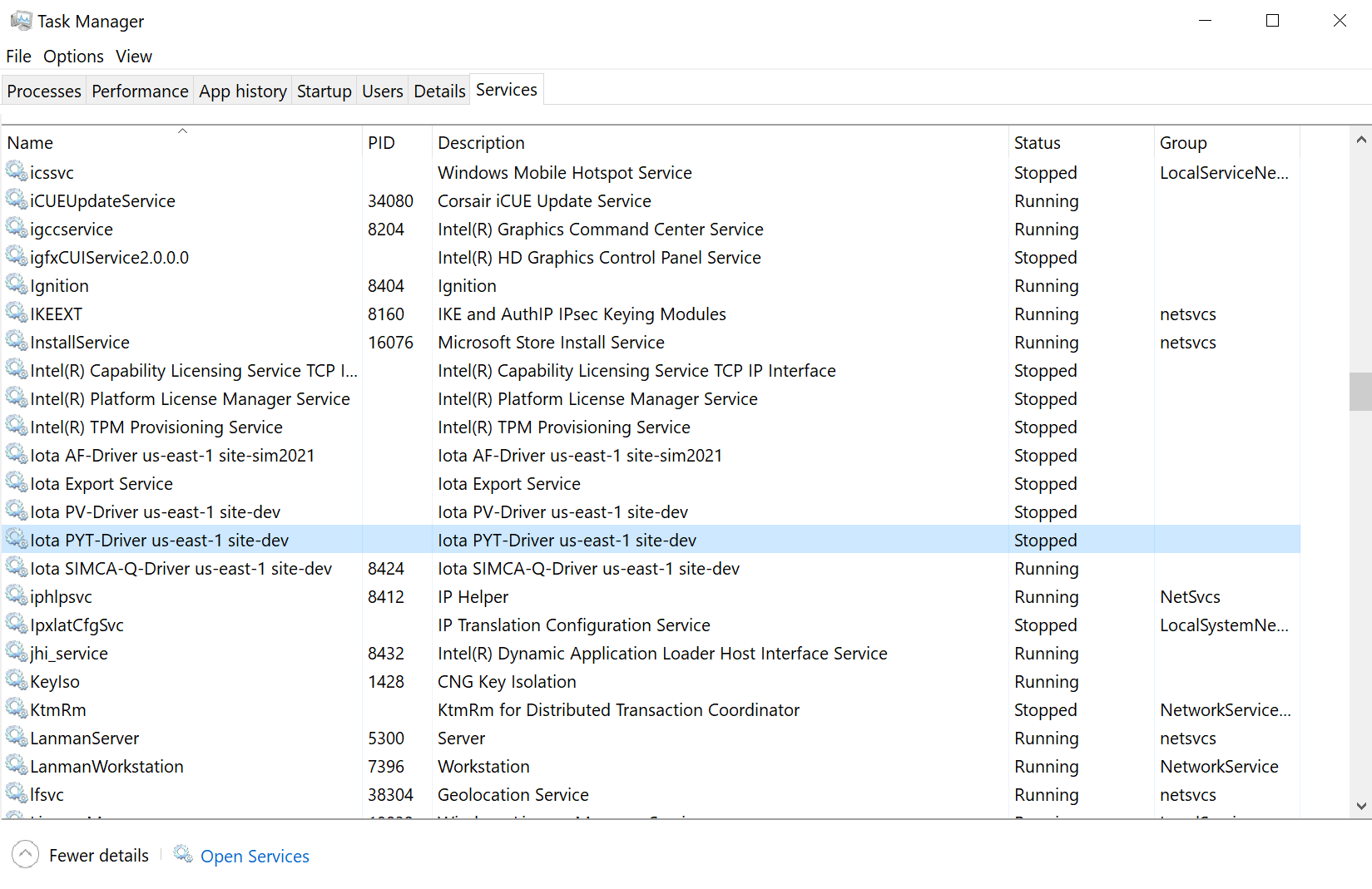

or Task Manager:

Manual Service Install

The Python Driver can be installed as a service manually from the command line.

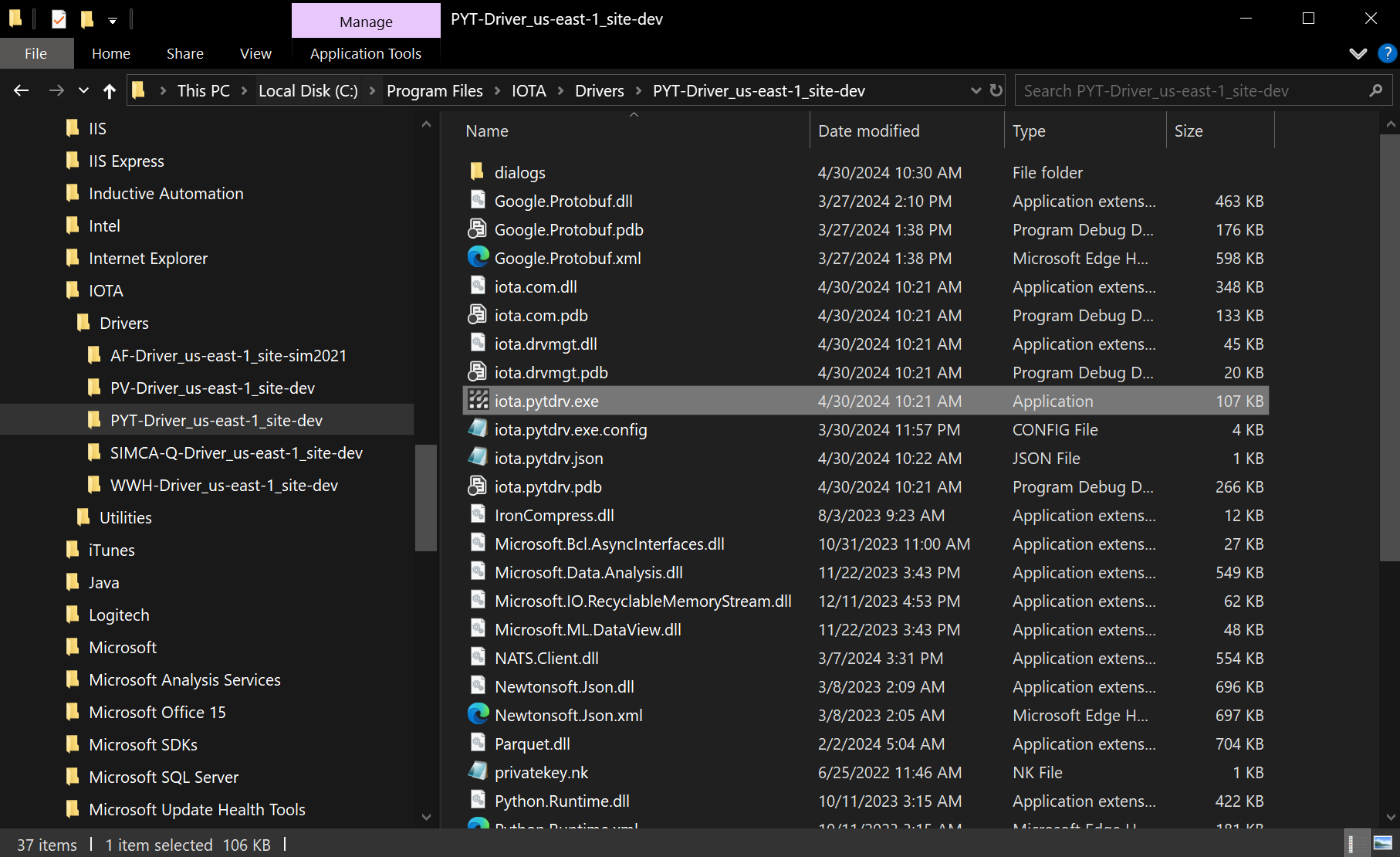

First, locate the Python Driver executable: iota.pytdrv.exe. By default it is installed in

{Program Files}\IOTA\Drivers\PYT-Driver_{Region name}_{Site name}

Open the command line as Administrator and navigate to Python Driver folder.

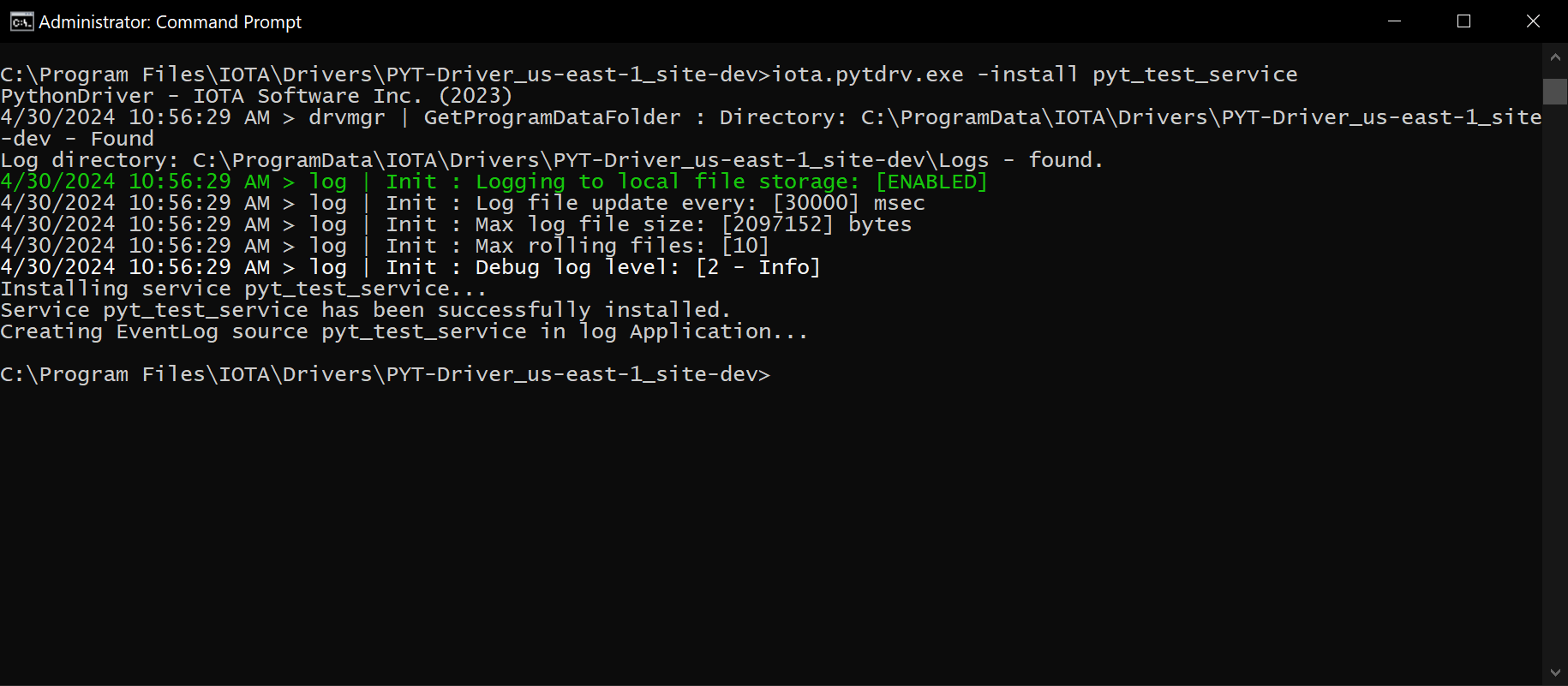

In the command line type the following command:

iota.pytdrv.exe -install {Custom Service Name}

where {Custom Service Name} is the user provided service name.

Example:

iota.pytdrv.exe -install pytdrv_test_service

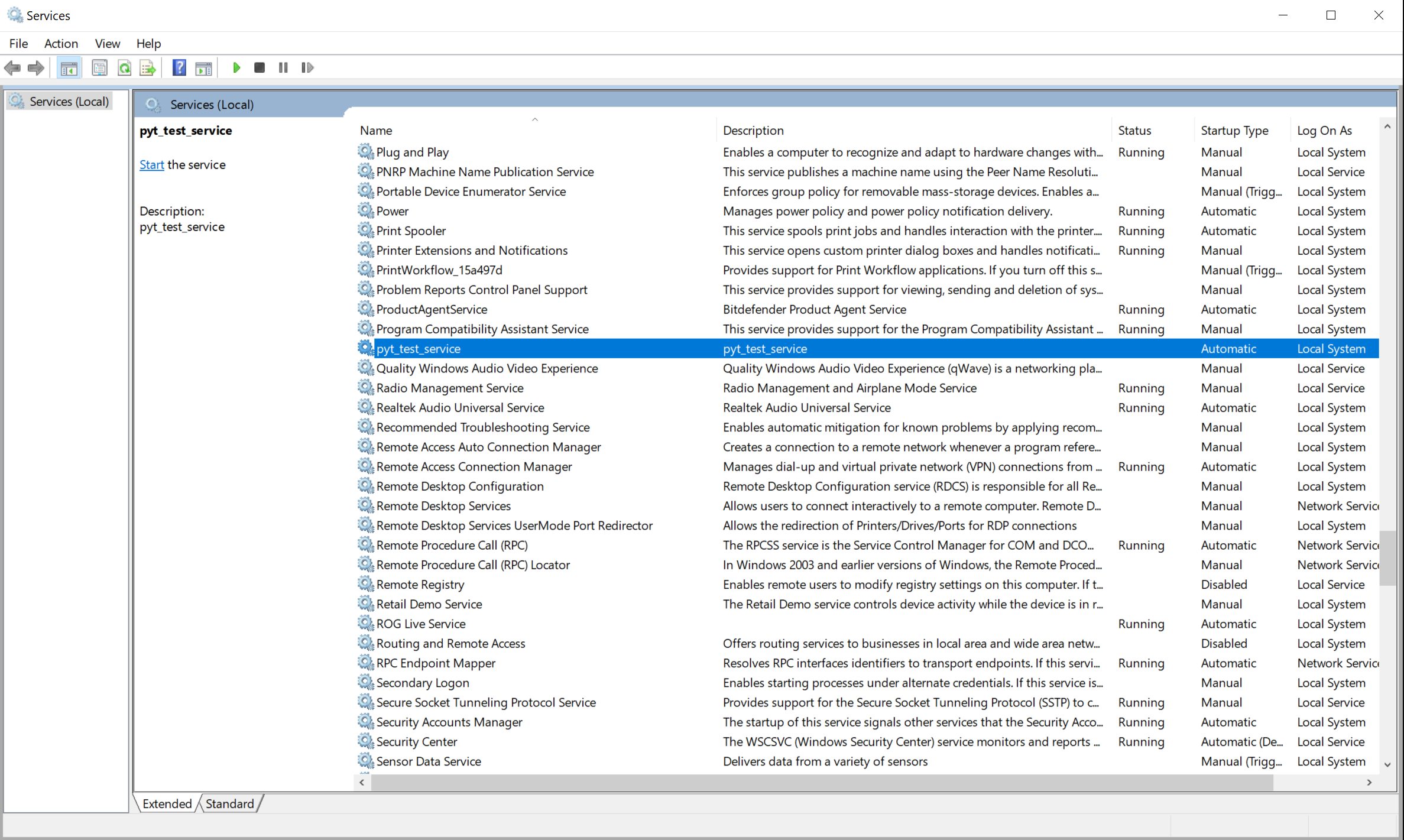

To verify manual service installation, open Service Manager and locate the newly created service.

Uninstall

Run the Uninstaller

There are two ways to remove the Python Driver from the system:

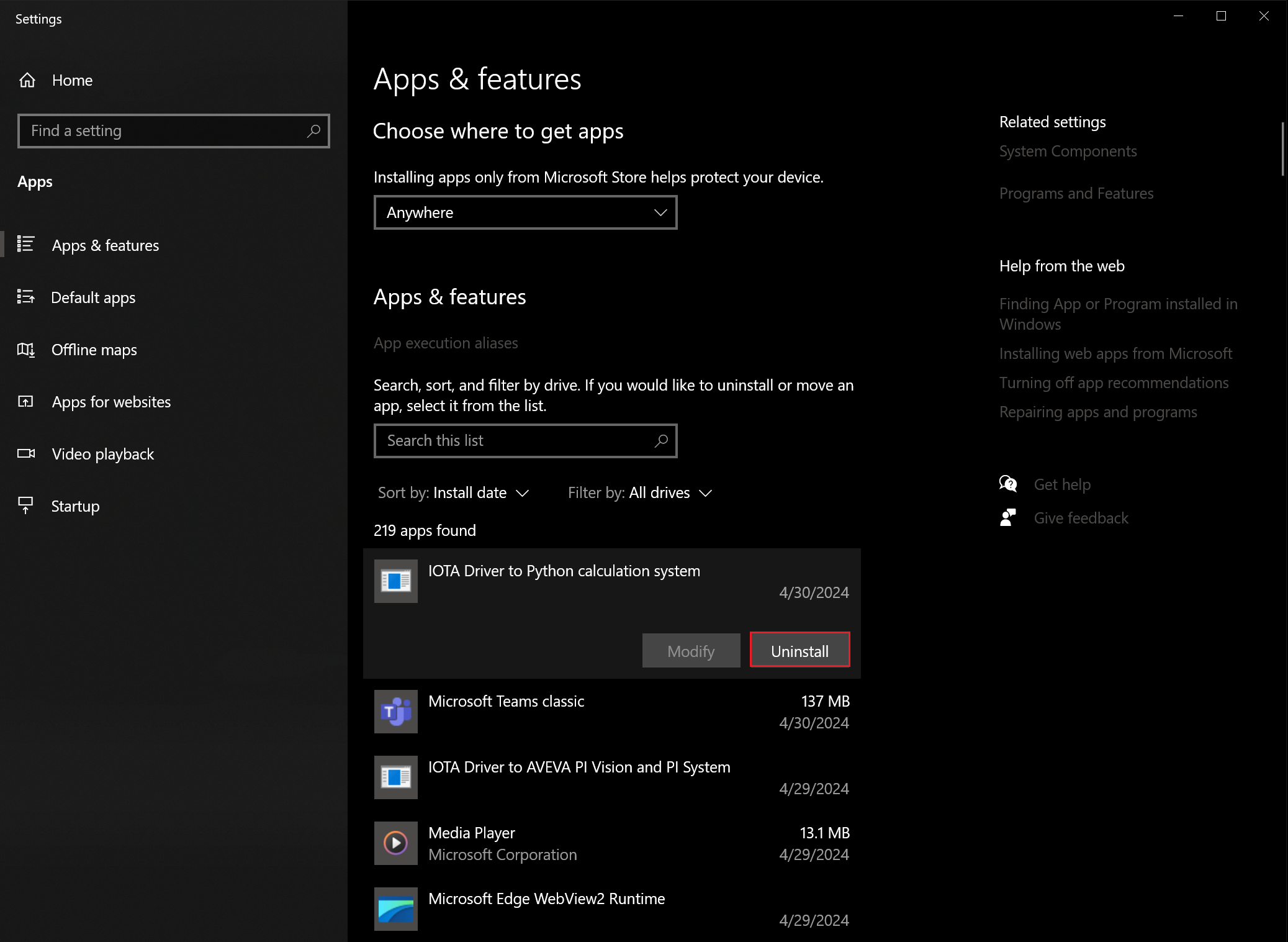

Use "Apps and Features"

Locate the Python Driver installation and click on "Uninstall"

Via Program Files

Find the Python Driver folder. By default, it is located in

{Program Files}\IOTA\Drivers\PYT-Driver_{Region name}_{Site name}

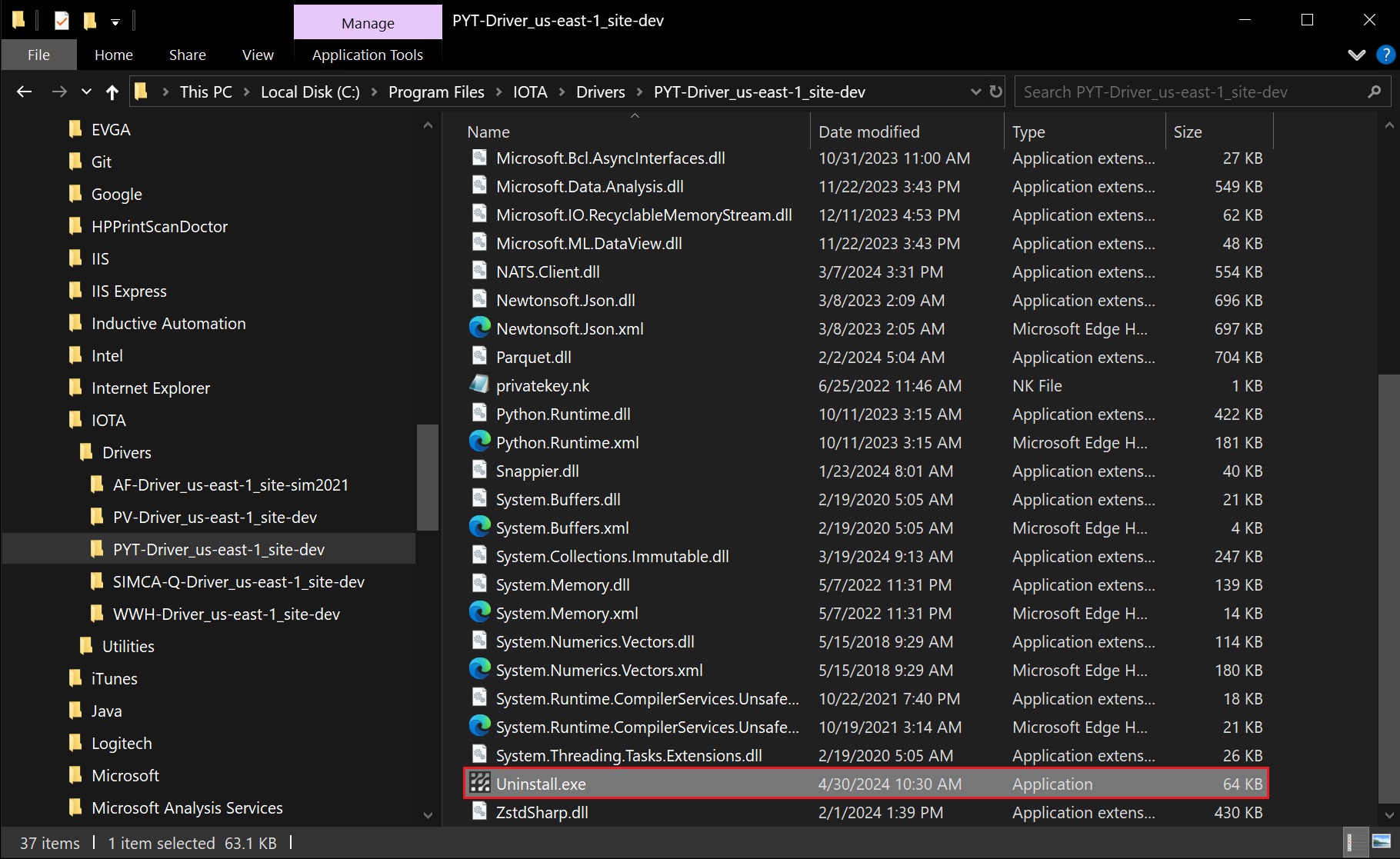

Inside the folder, find the Uninstall.exe and run it as Administrator.

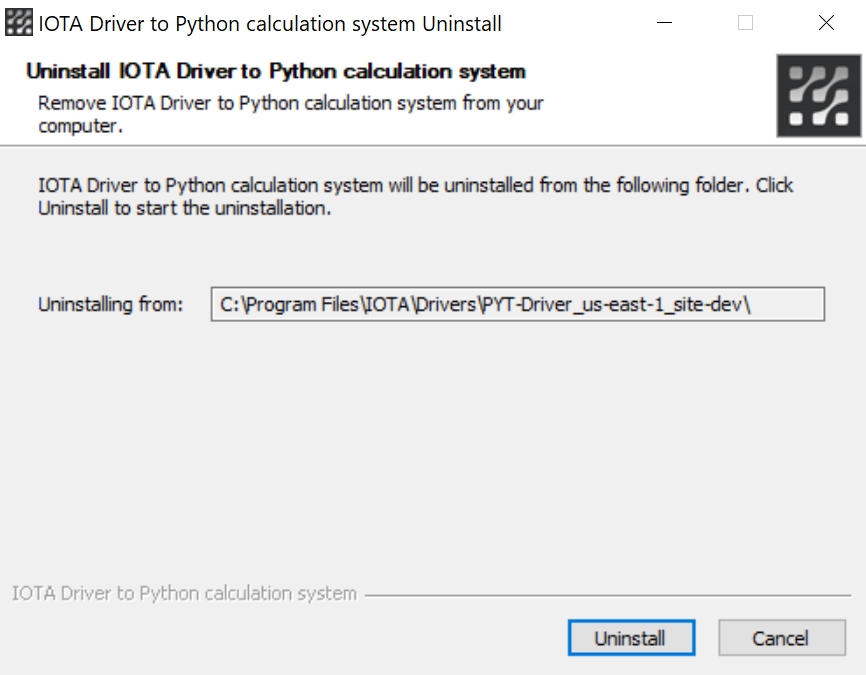

When Python Driver uninstall is initiated the confirmation dialog is displayed:

Clicking on "Uninstall" button will start the process.
The uninstall process removes the Python Driver service and all files in Program Files.

Warning

The uninstall does not remove any data from ProgramData folder.

Manual Service Uninstall

The Python Driver can be uninstalled as a service manually from the command line.
First, locate the Python Driver executable: iota.pytdrv.exe. By default, it is installed in

{Program Files}\IOTA\Drivers\PYT-Driver_{Region name}_{Site name}

Open command line as Administrator and navigate to Python Driver folder.
In the command line type the following command:

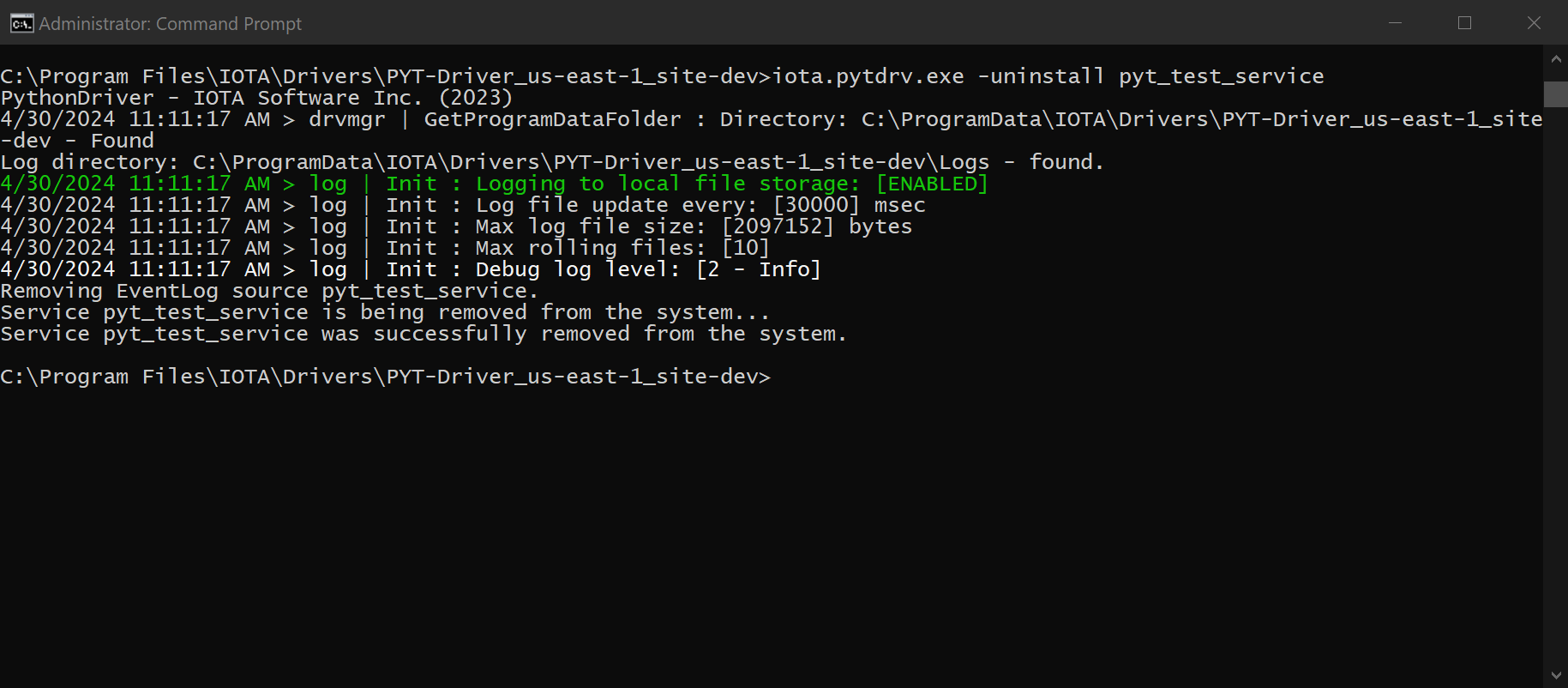

iota.pytdrv.exe -uninstall {Custom Service Name}

where {Custom Service Name} is a user provided service name.

Example:

iota.pytdrv.exe -uninstall pytdrv_test_service

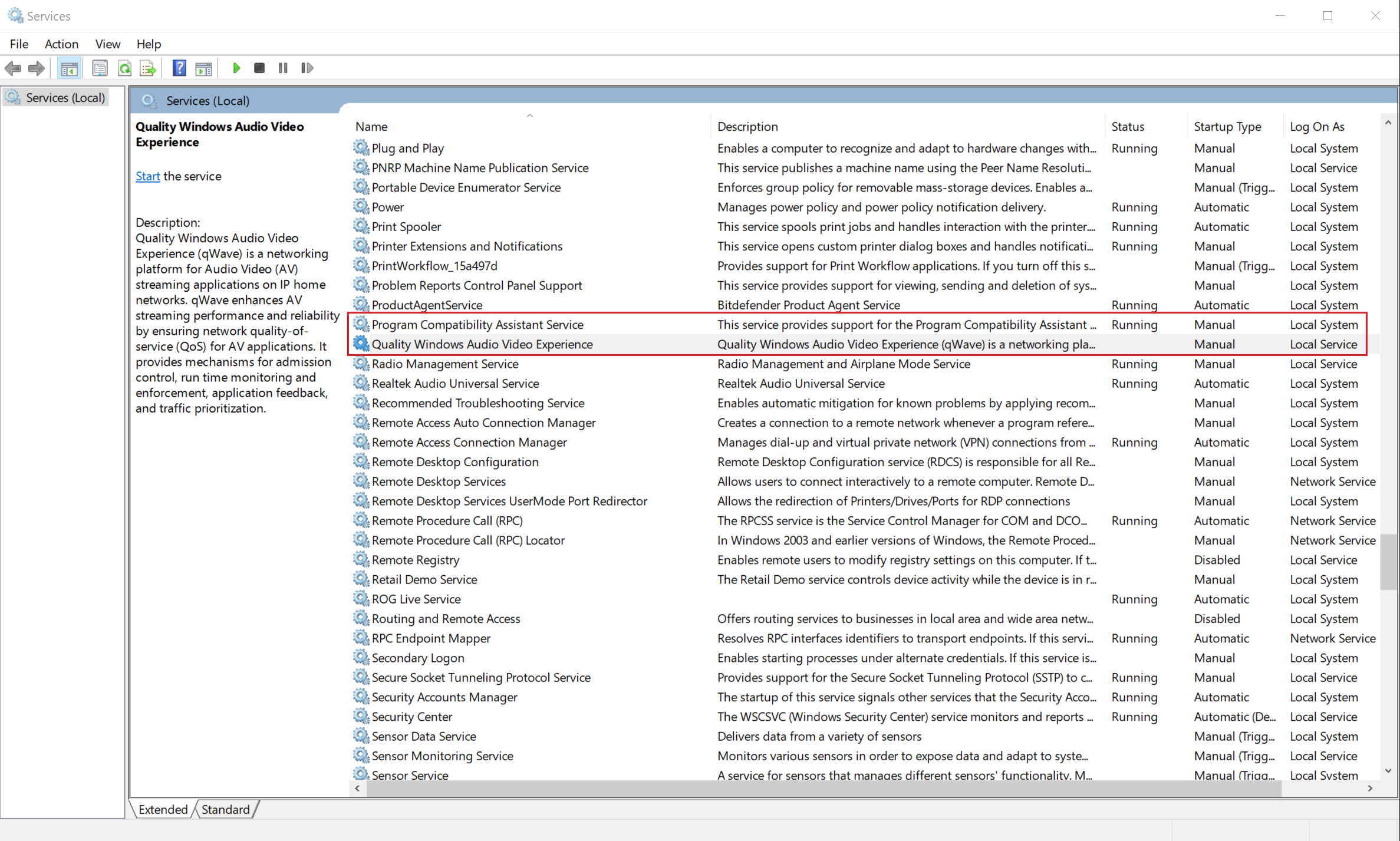

To verify manual service removal, open Service Manager and check that service pytdrv_test_service is no longer present in the list of services.

Service Configuration

On every startup - Python Driver reads its configuration from the file named the same as executable: iota.pytdrv.json.
For secure NATs bus communication, the NKey private key file named as privatekey.nk must reside next to iota.pytdrv.json configuration file.

During the first Python Driver installation, the installer copies an auto generated configuration (.json) file and private key file to ProgramData folder:

{ProgramData}\IOTA\Drivers\PYT-Driver_{Region Name}_{Site Name}

Any subsequent Python Driver updates will not affect the configuration and private key files in ProgramData folder.

Tips

Python Driver comes with a preset configuration file. Manual configuration is not required.

Verify Python Driver status

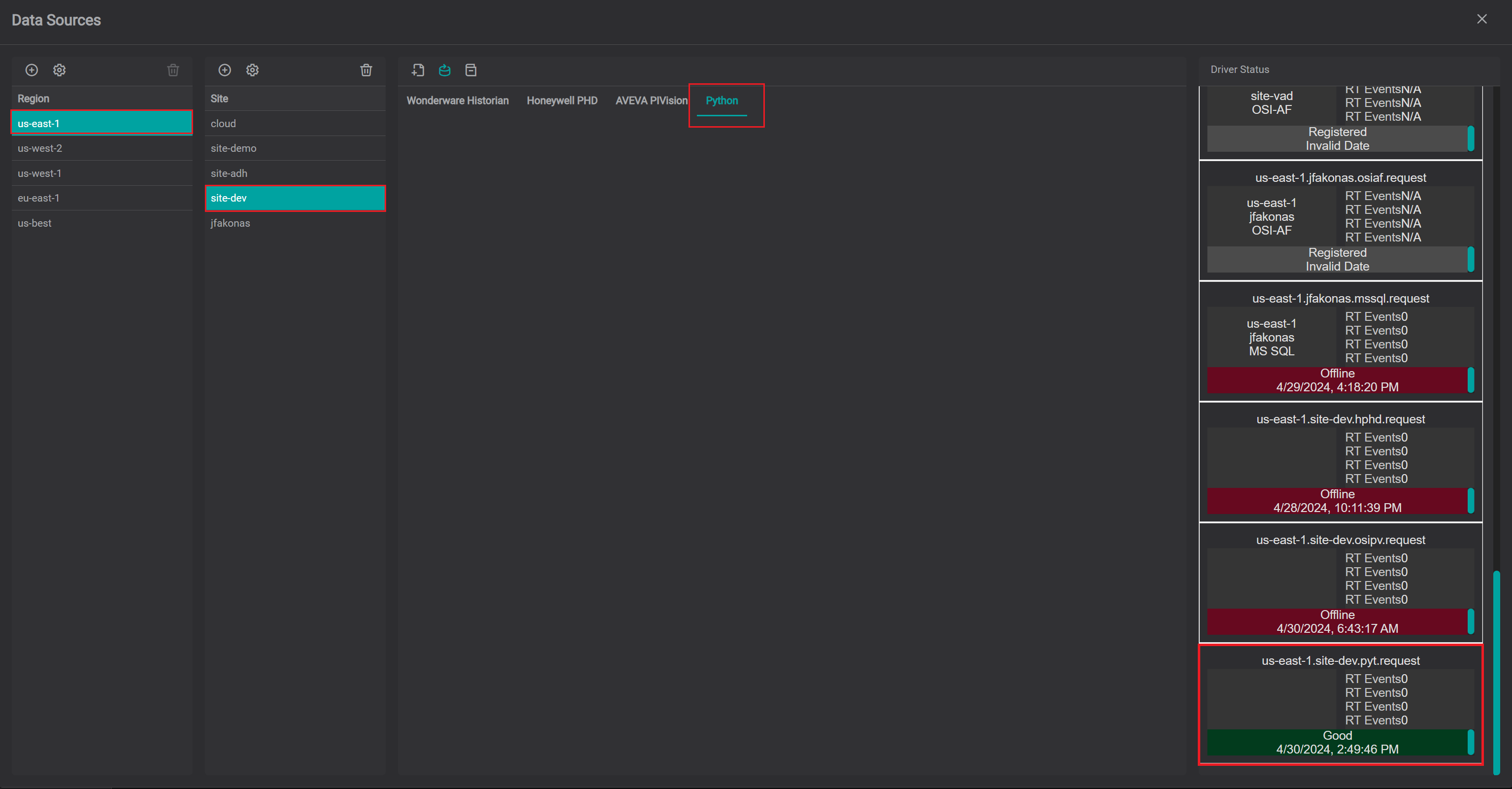

When the driver is configured properly and started, it shows with online status on the of right pane of Data Sources menu

IOTA Vue uses combination of region, site and driver type to create a unique channel for communication with specific driver.

{region}.{site}.{driver type}.request

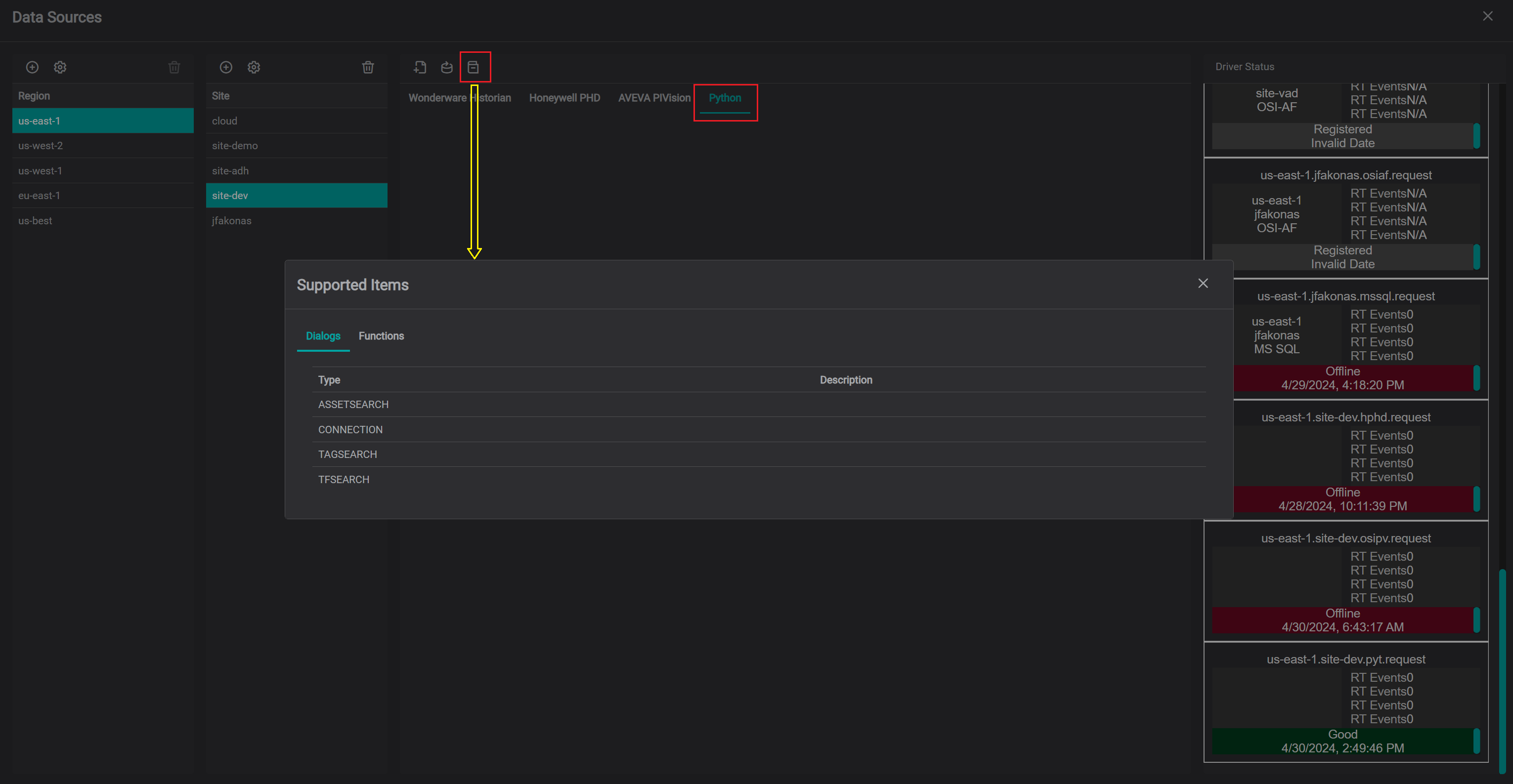

To verify data communication with the driver, select Python driver tab and click on Supported Items icon. If communication is established, the popup dialog will show supported driver dialogs and functions.
