Download Installer
The IOTA to AVEVA PI Vision (PV) Driver installer is available on request. Please contact IOTA Software representative to obtain the latest driver version.
Tips
The provided installer contains all required configurations for specific Region\Site connectivity and secure communication. No additional configuration is necessary during installer execution.
Run the Installer
On the Windows machine, launch the IOTA Driver installer as Administrator. Follow the installation process as indicated and if needed make sure to adjust the installation location.
Tips
Make sure to run the installer as Administrator. Otherwise, you will not have proper permissions for Program files installation.

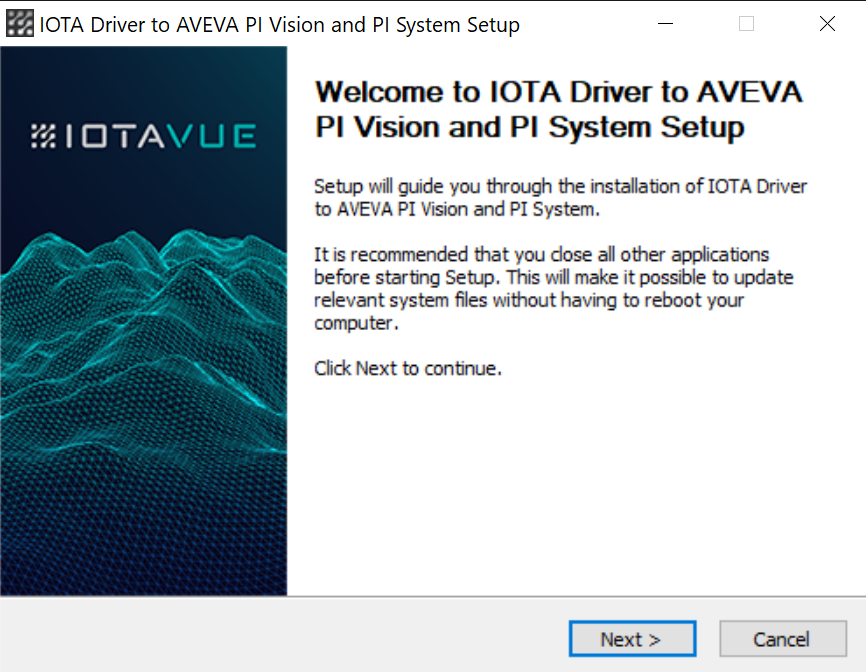

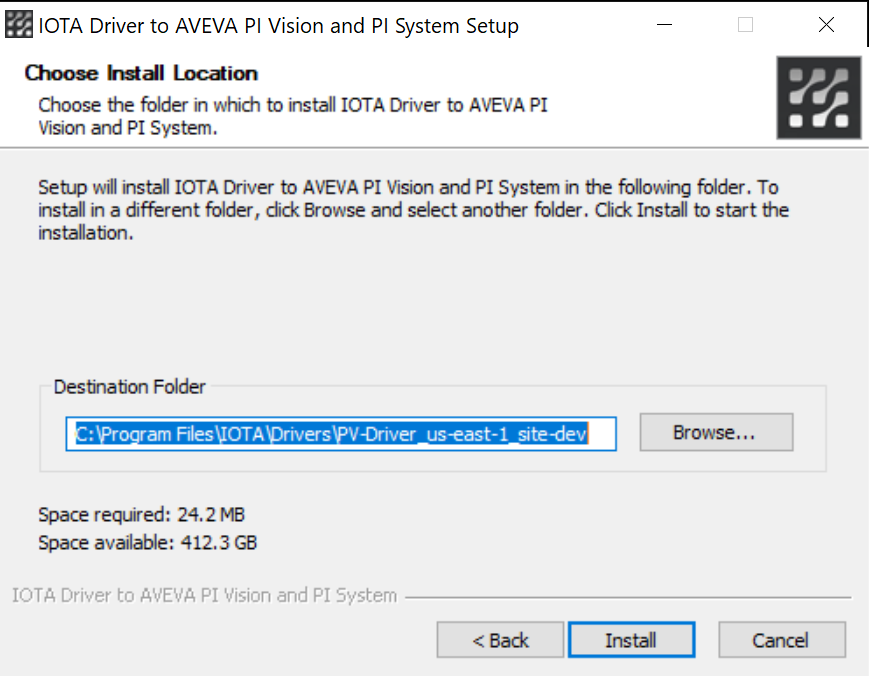

| Installer Welcome Screen | Installation Location |
|---|---|
 |  |
Verify Installation

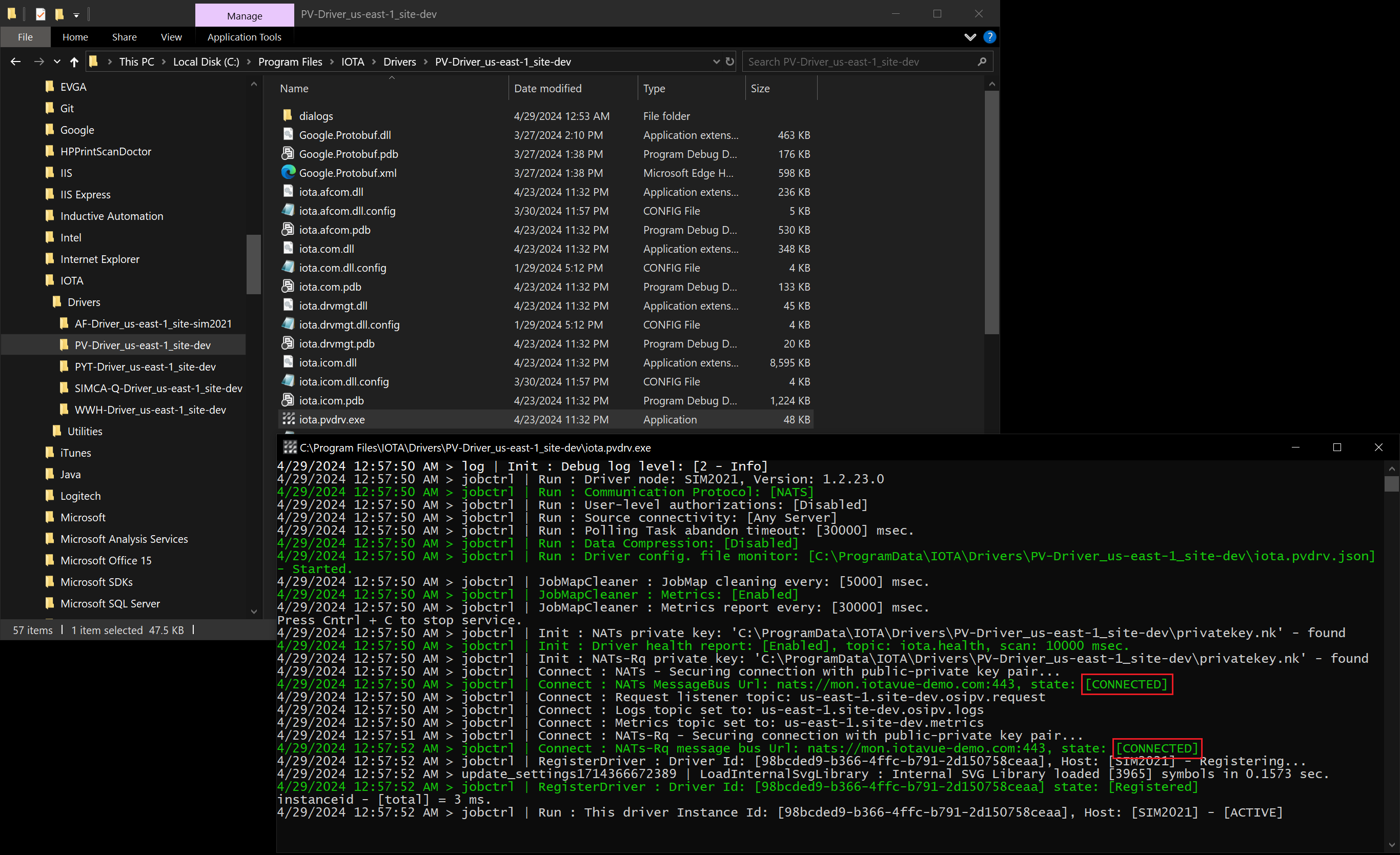

To check that the connection is all right, we recommend to start iota.pvdrv.exe from a Command prompt for a moment and make sure the connection to the message bus succeeded (all green messages). Close the application.
Configuration and Log Location
By default, the PV-Driver installer creates a data folder for driver's configuration and logs inside of ProgramData folder as: {ProgramData}\IOTA\Drivers\PV-Driver_{Region Name}_{Site Name}
For the first PV-Driver installation, the installer copies an auto generated configuration (.json) file and private key file in this folder.
Info
Any subsequent PV-Driver updates will not affect the configuration and private key files in ProgramData folder.
Run as a Service

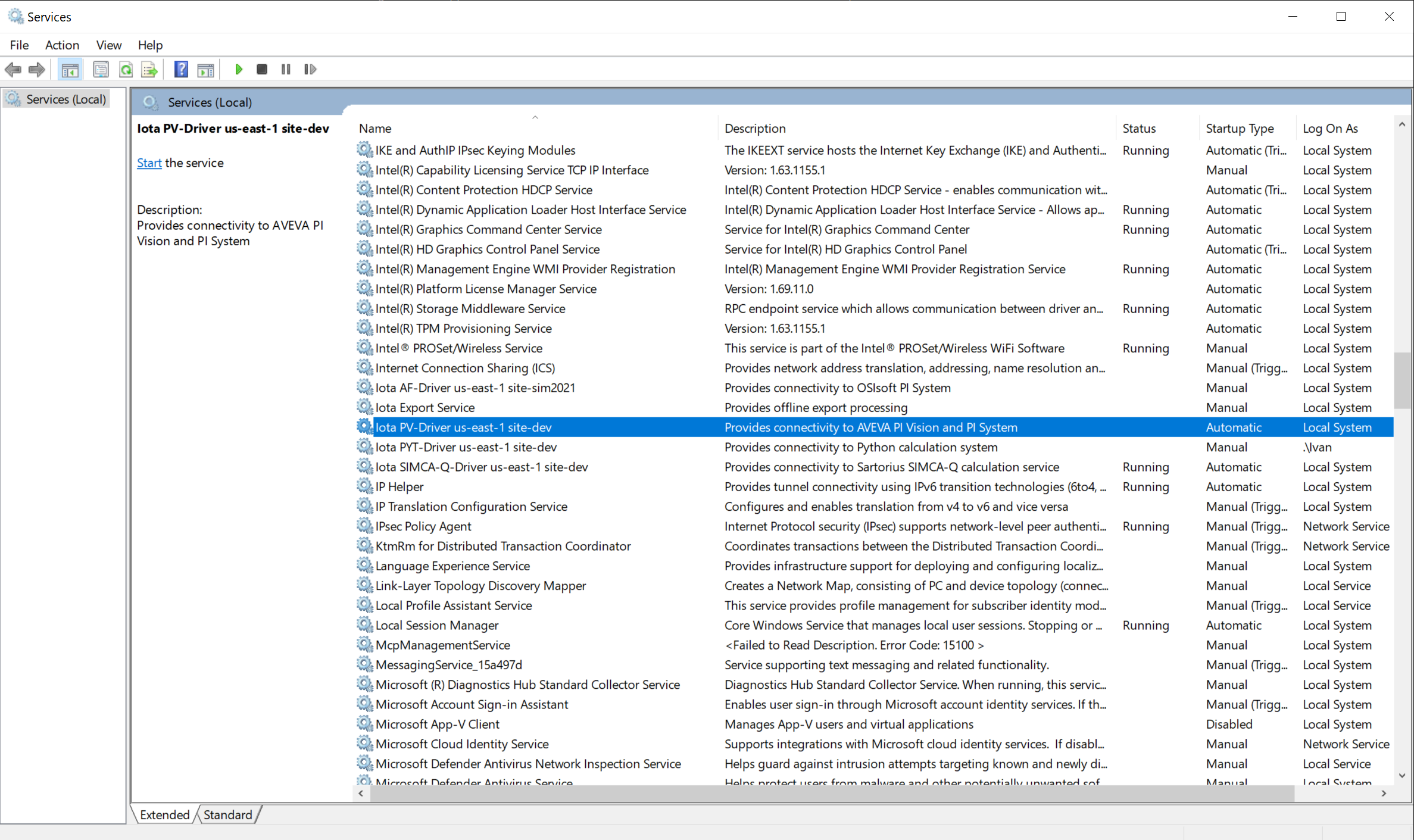

The IOTA PV-Driver service can be started or stopped through either Service Manager:

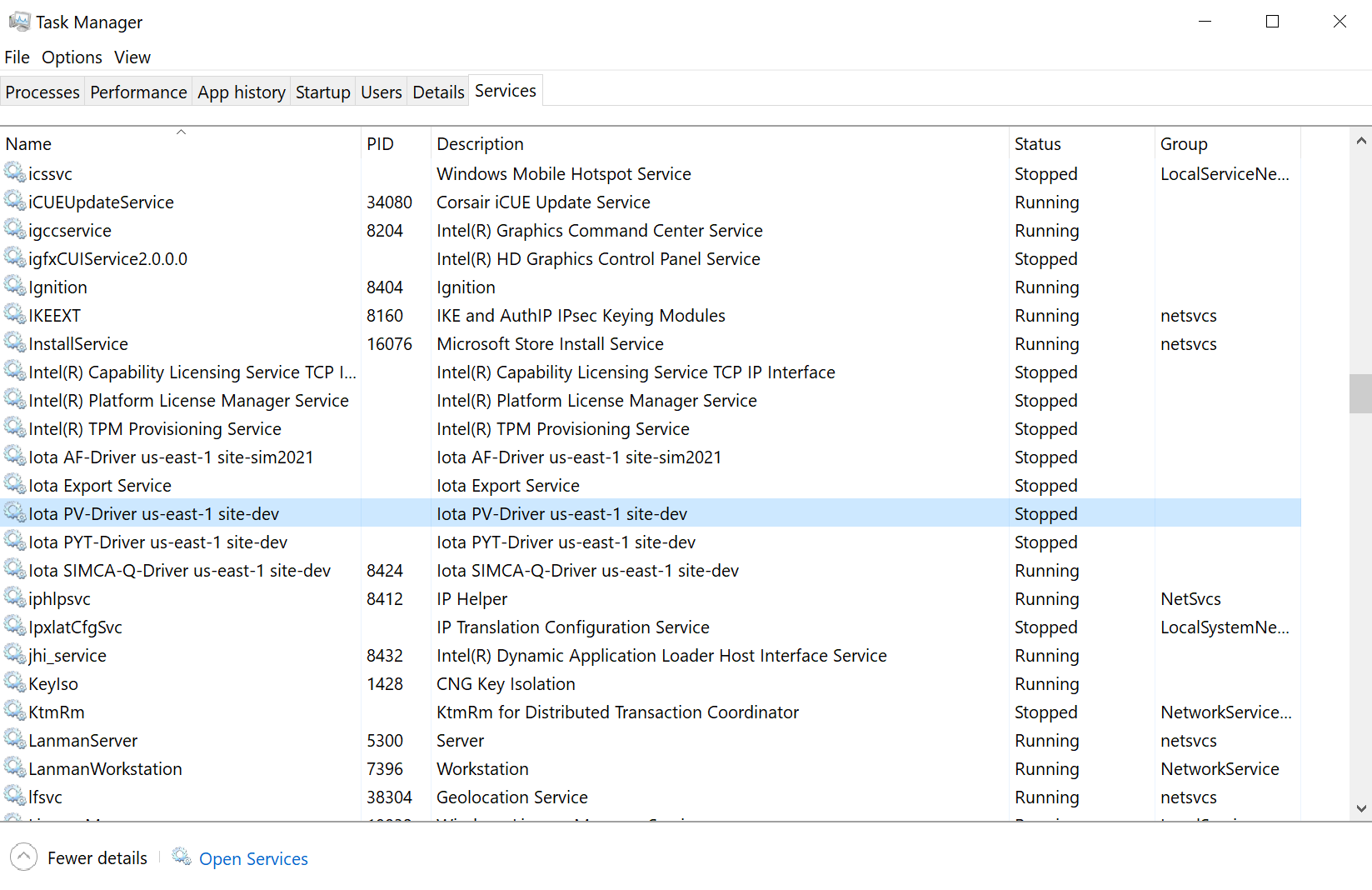

or Task Manager:
Manual Service Install
The PV-Driver can be installed as a service manually from the command line.
First, locate the PV-Driver executable: iota.pvdrv.exe. By default it is installed at the following path:
{Program Files}\IOTA\Drivers\PV-Driver_{Region name}_{Site name}
Open the command line as Administrator and navigate to PV-Driver folder.
In the command line type the following command:

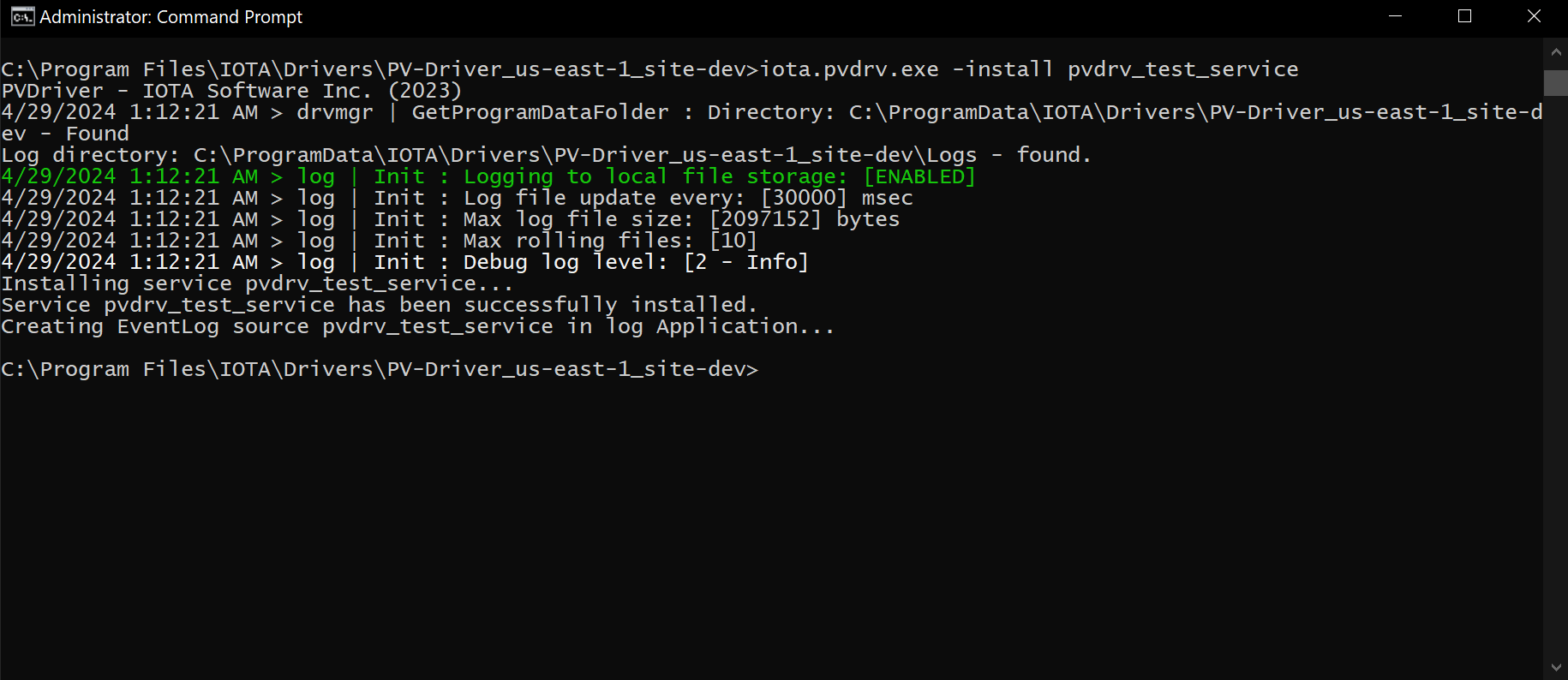

iota.pvdrv.exe -install {Custom Service Name}where {Custom Service Name} is a user provided service name.
Example:
iota.pvdrv.exe -install pvdrv_test_service

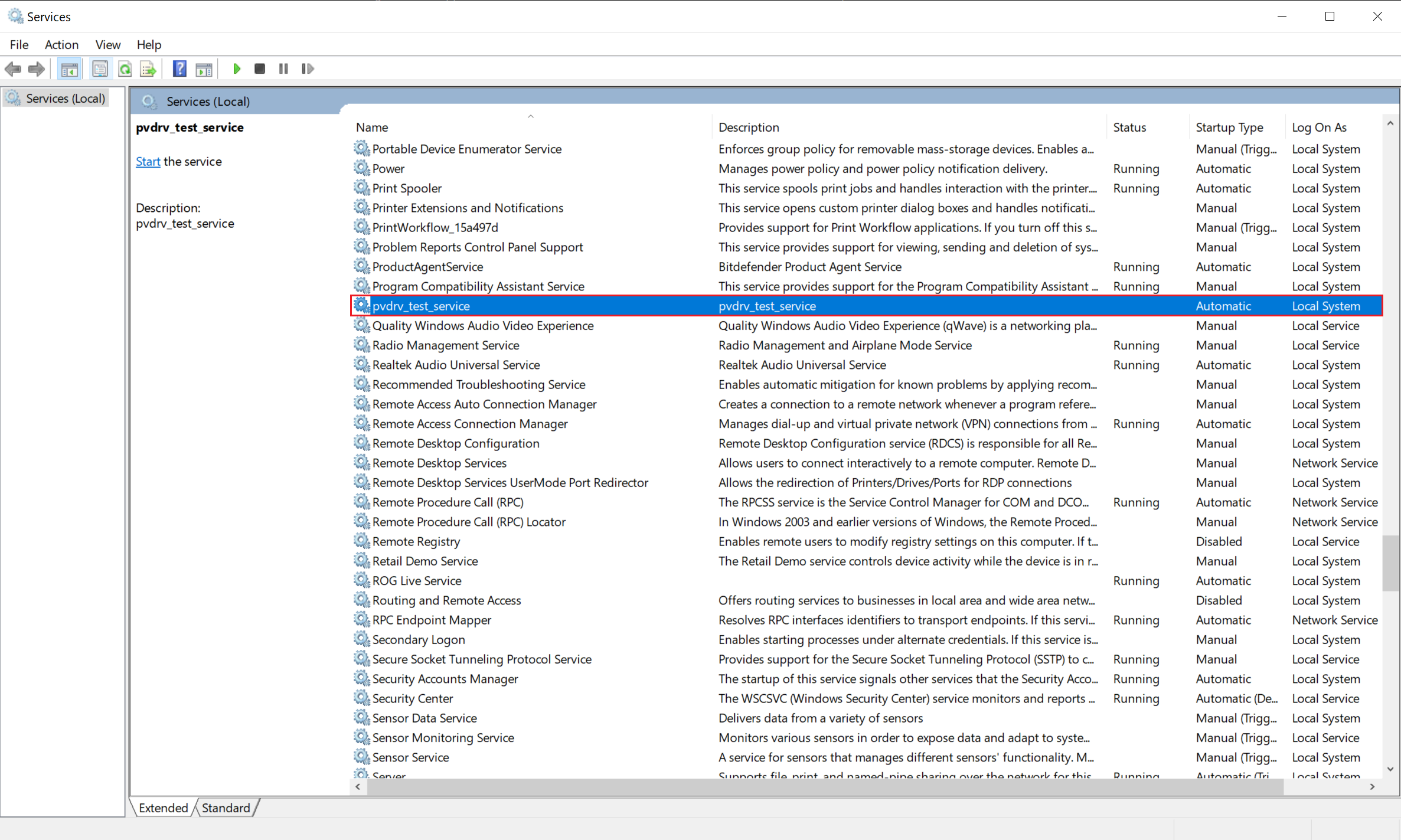

To verify manual service installation, open Service Manager and locate the newly created service.
Uninstall
Run the Uninstaller
There are two ways to remove the PV-Driver from the system:

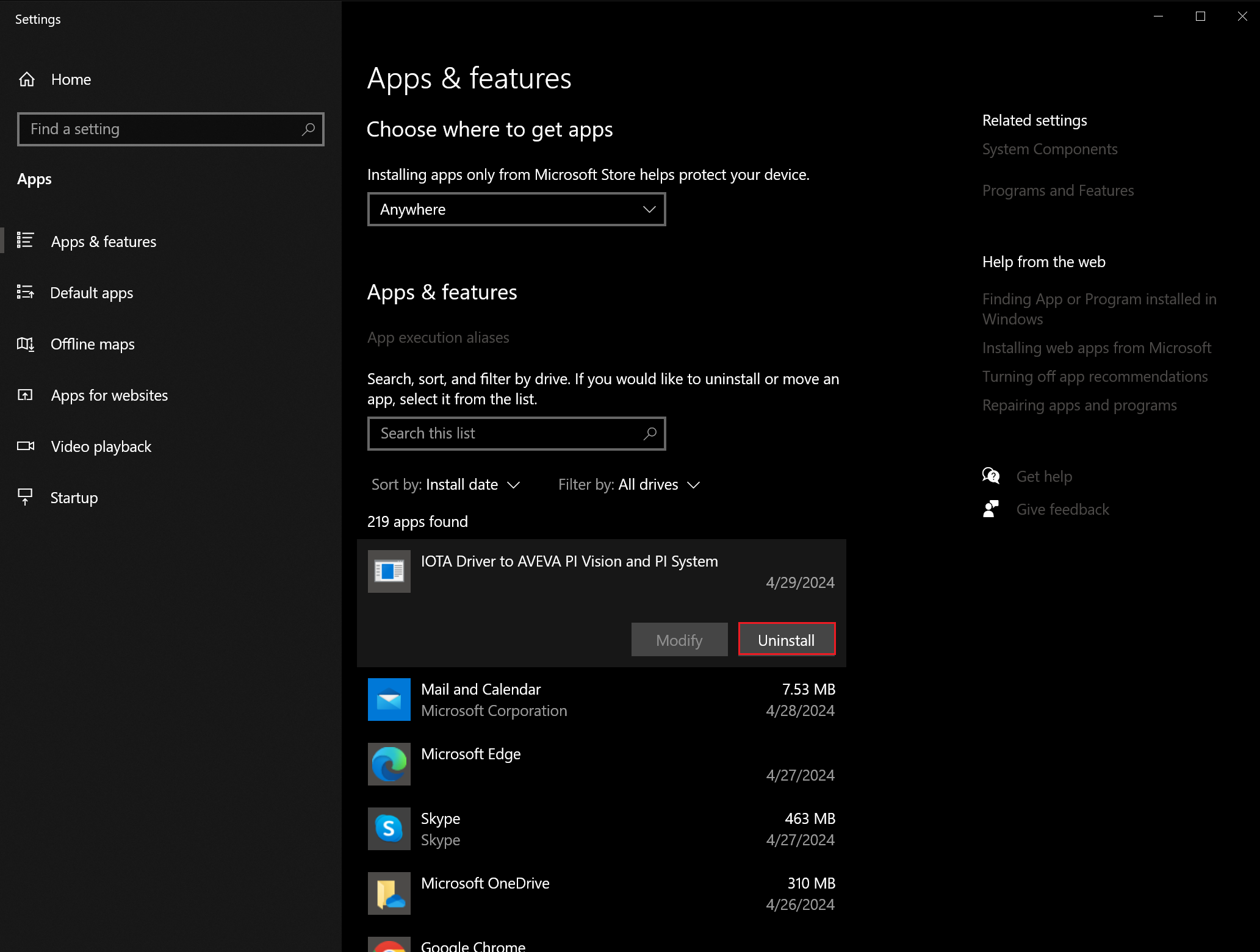

Use "Apps and Features"
Locate the PV-Driver installation and click on "Uninstall"
Via Program Files

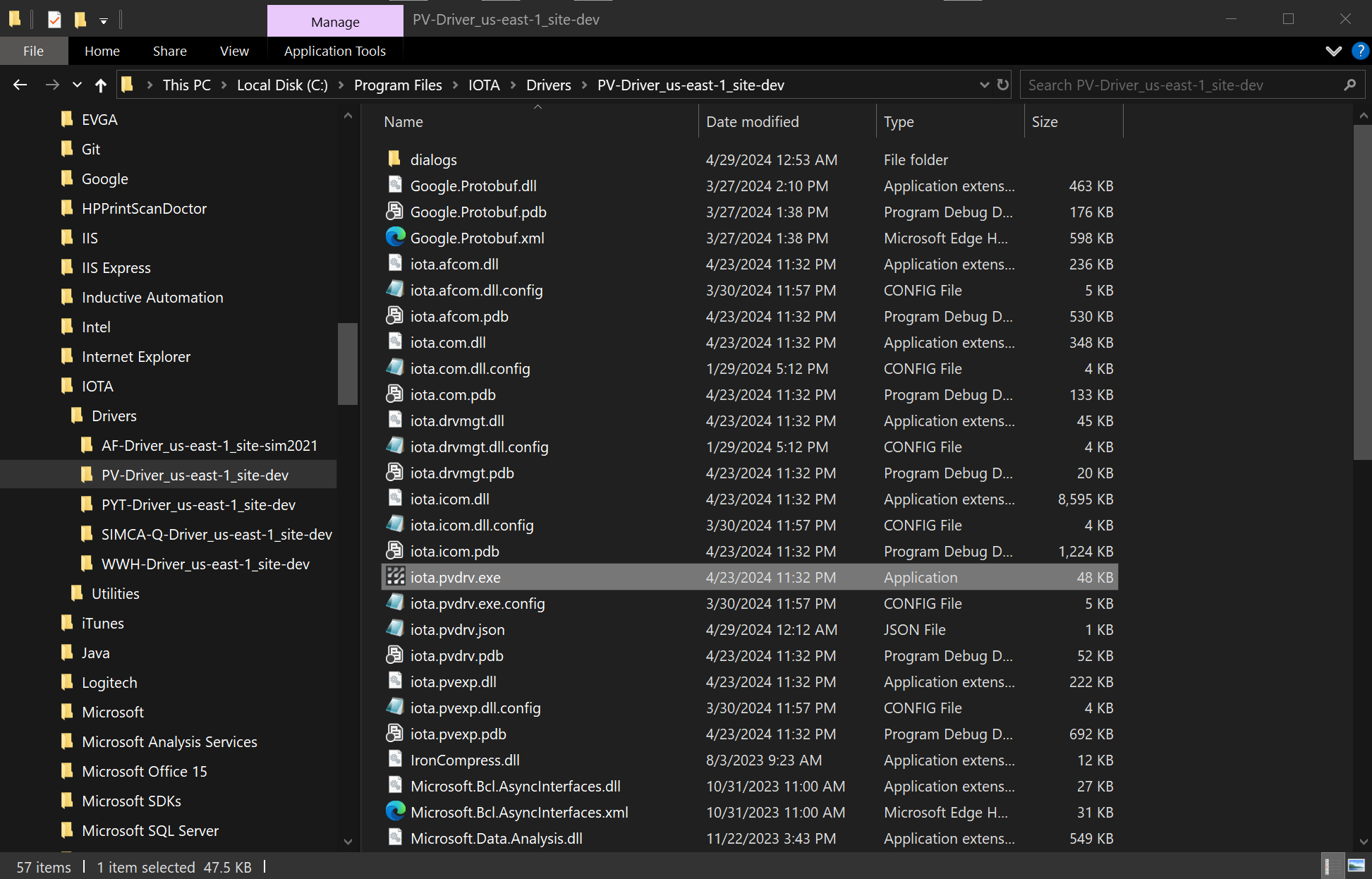

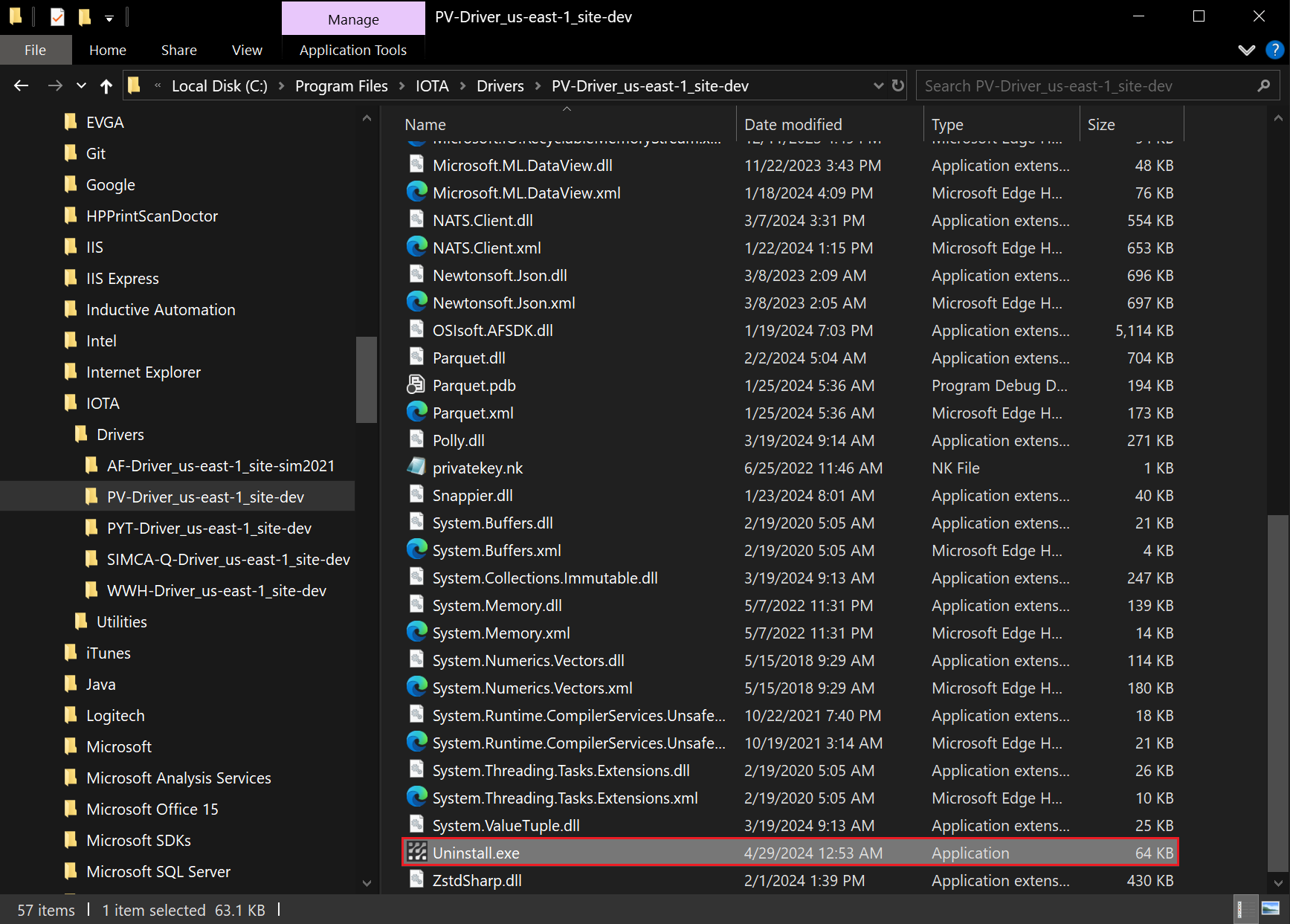

Find the PV-Driver folder. By default, it is located in
{Program Files}\IOTA\Drivers\PV-Driver_{Region name}_{Site name}
Inside the folder, find the uninstall.exe and run it as Administrator.

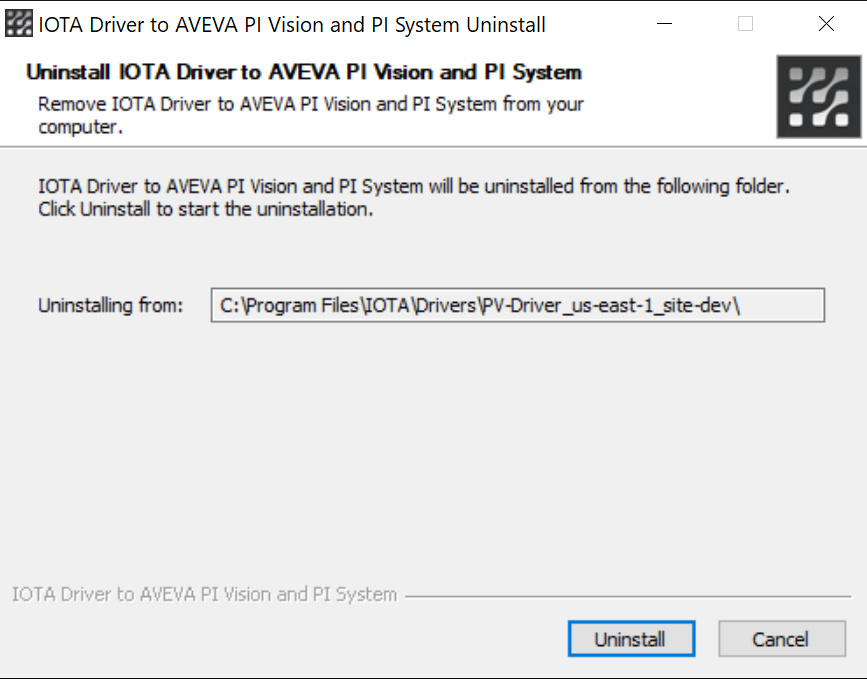

When PV-Driver uninstall is initiated the confirmation dialog is displayed:
Clicking on "Uninstall" button will start the process.
The uninstall process removes the PV-Driver service and all files in Program Files.
Warning
The uninstall does not remove any data from ProgramData folder.
Manual Service Uninstall
The PV-Driver can be uninstalled as a service manually from the command line.
First, locate the PV-Driver executable: iota.pvdrv.exe. By default, it is installed in
{Program Files}\IOTA\Drivers\PV-Driver_{Region name}_{Site name}
Open command line as Administrator and navigate to PV-Driver folder.

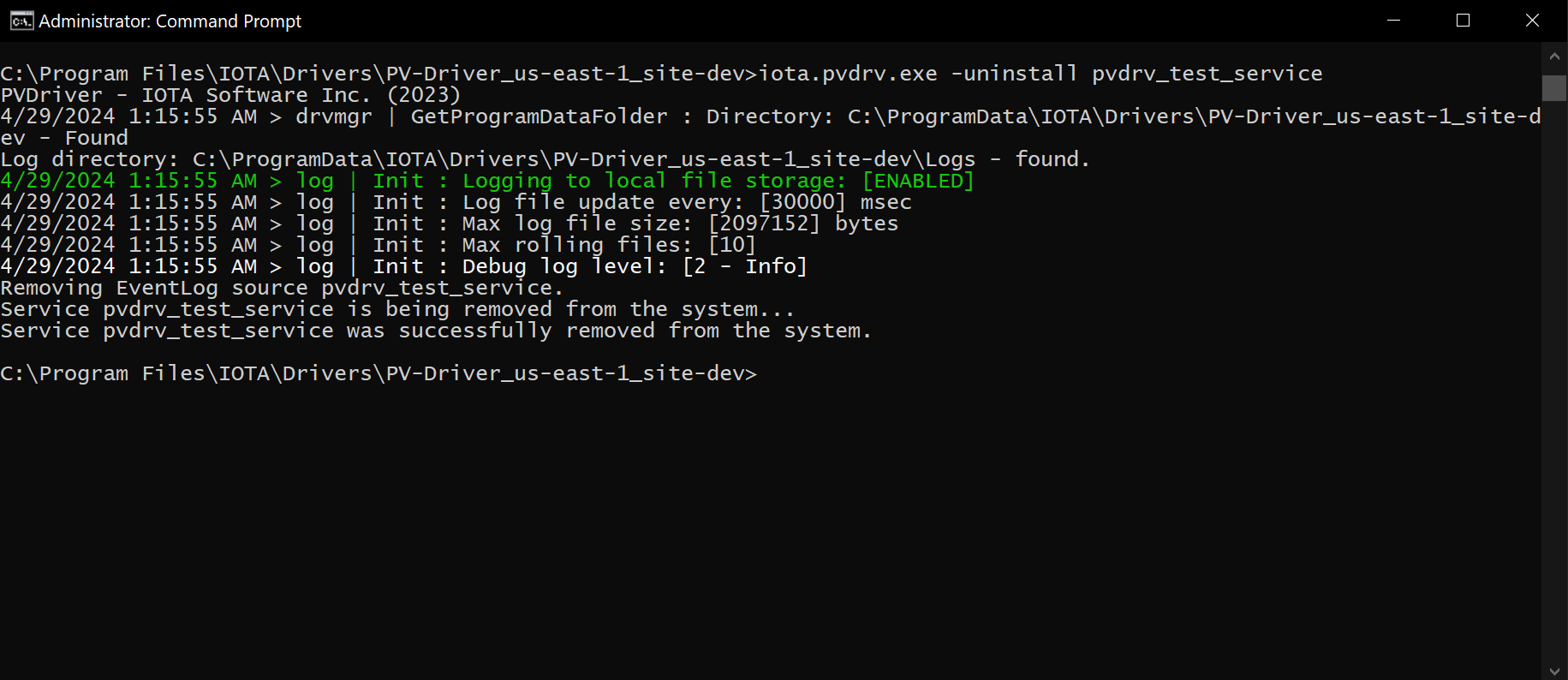

In the command line type the following command:
iota.pvdrv.exe -uninstall {Custom Service Name}where {Custom Service Name} is a user provided service name.
Example:
iota.pvdrv.exe -uninstall pvdrv_test_service
To verify manual service removal, open Service Manager and check that service "pvdrv_test_service" is no longer present in the list of services.
Service Configuration
On every startup - PV-Driver reads its configuration from the file named the same as executable: "iota.pvdrv.json".
For secure NATs bus communication, the NKey private key file named as "privatekey.nk" must reside next to "iota.pvdrv.json" configuration file.

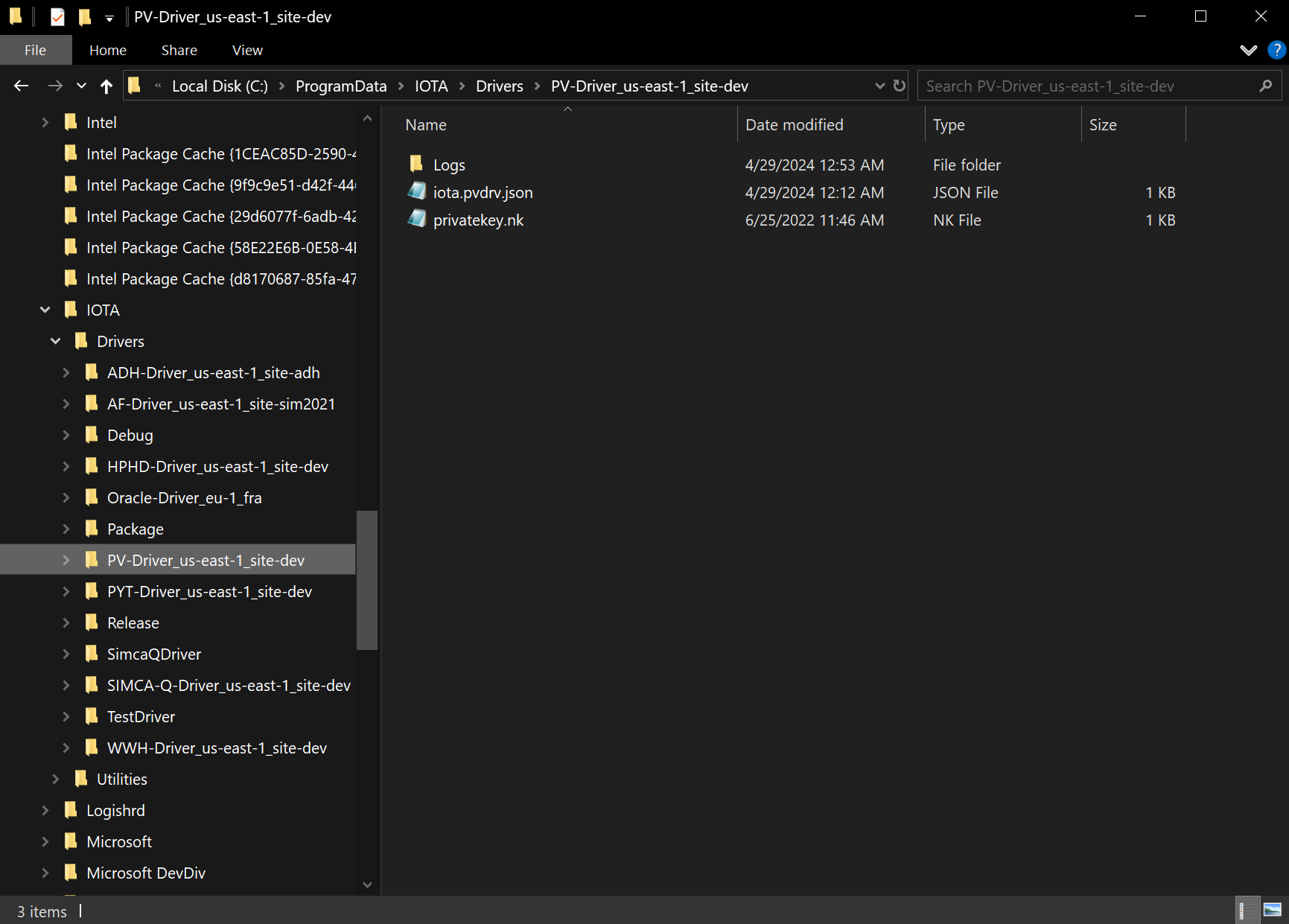

During the first PV-Driver installation, the installer copies an auto generated configuration (.json) file and private key file to ProgramData folder:
{ProgramData}\IOTA\Drivers\PV-Driver_{Region Name}_{Site Name}
Any subsequent PV-Driver updates will not affect the configuration and private key files in ProgramData folder.
Tips
PV-Driver comes with a preset configuration file. Manual configuration is not required.
Configuration parameters
| Parameter name | Required | Default Value | Data Type | Description |
|---|---|---|---|---|
| driverid | ⚫ | null | string | Driver Id - used for logging purposes only |
| debug | ⚫ | 0 | int | Debug verbose level: 0 - errors only, 1 - warnings, 2 - information, 3 - debug |
| natsurl | 🟢 | null | string | NATs server url with port |
| publickey | 🟢 | null | string | NATs NKey public key string. Private key must be defined in file: "privatekey.nk" and located in the same folder as iota.pvdrv.json |
| reqtopic | 🟢 | null | string | NATs topic on which driver listens for requests |
| statstopic | ⚫ | null | string | NATs topic for sending driver's stats |
| logstopic | ⚫ | null | string | NATs topic for sending driver's logs |
| metricstopic | ⚫ | null | string | NATs topic for sending driver's metrics |
| metricsmsec | ⚫ | 30000 | int | How often in milliseconds to send metrics data. Default: 30000 = 30 sec |
| enablemetrics | ⚫ | true | bool | Enables metrics reporting |
| healthtopic | 🟢 | iota.health | string | NATs topic for sending driver's health |
| healthmsec | ⚫ | 10000 | int | How often in milliseconds to send health data. Default: 10000 = 10 sec |
| logfilecount | ⚫ | 10 | int | Number of rolling log files |
| logfilesize | ⚫ | 2097152 | int | Number of bytes per each log file. Default: 2097152 bytes = 2 Mb |
| logscanmsec | ⚫ | 30000 | int | How often in milliseconds to append data to log files. Default: 30000 = 30 sec |
Example
{
"driverid": "osipv-demo",
"natsurl": "mon.iota-demo.com:443",
"reqtopic": "us-east-1.site-demo.osipv.request",
"statstopic": "us-east-1.site-demo.stats",
"logstopic": "us-east-1.site-demo.logs",
"publickey": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
"metricstopic": "us-east-1.site-demo.metrics",
"metricsmsec": 30000,
"healthtopic": "iota.health",
"healthmsec": 10000,
"enablemetrics": true,
"debug": 2,
"logfilecount": 10,
"logfilesize": 2097152,
"logscanmsec": 10000
}Verify PV-Driver status

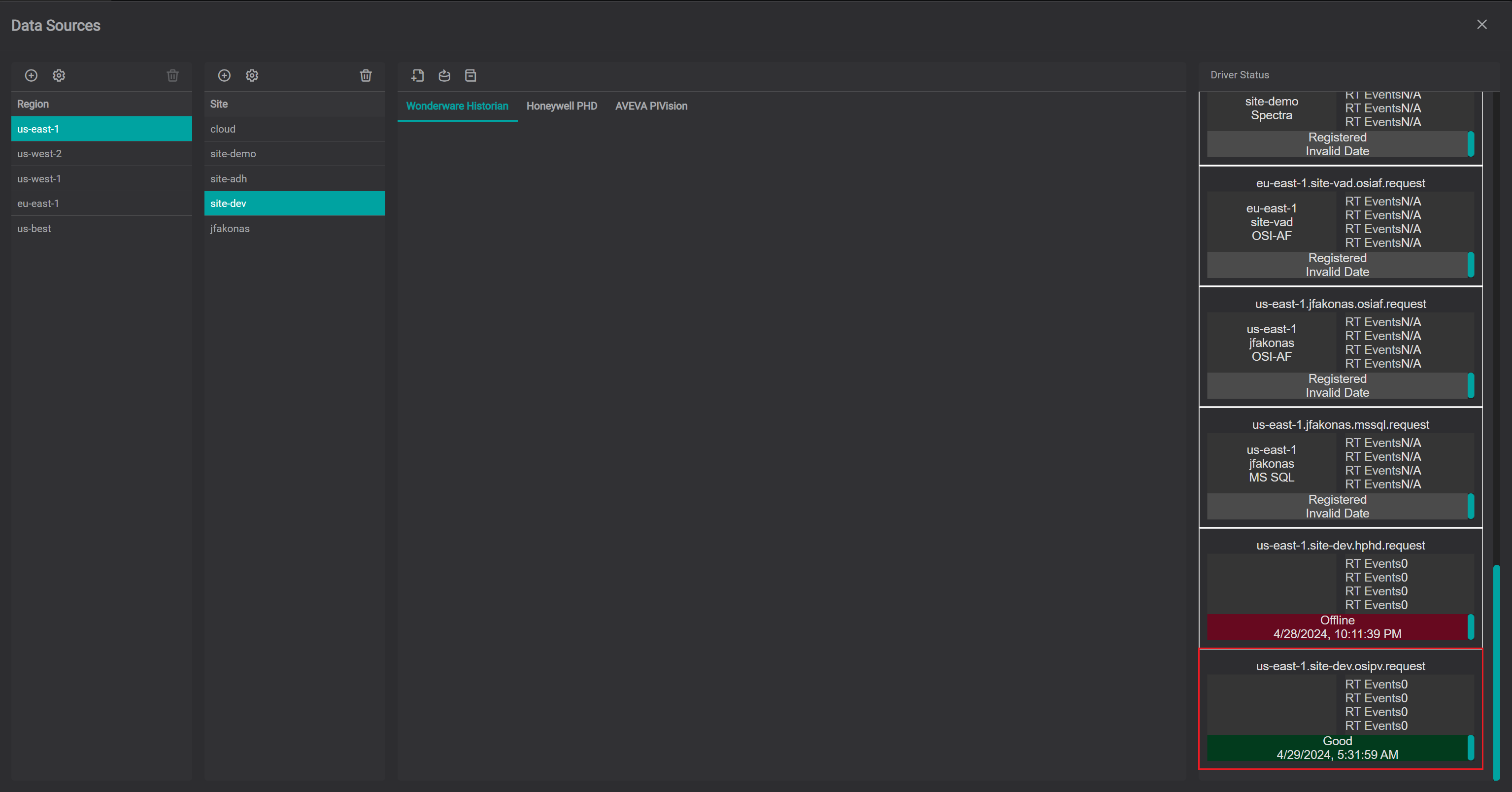

When the driver is configured properly and started, it shows with online status on the of right pane of Data Sources menu
IOTA Vue uses combination of region, site and driver type to create a unique channel for communication with specific driver.
{region}.{site}.{driver type}.request, where driver type = osipv

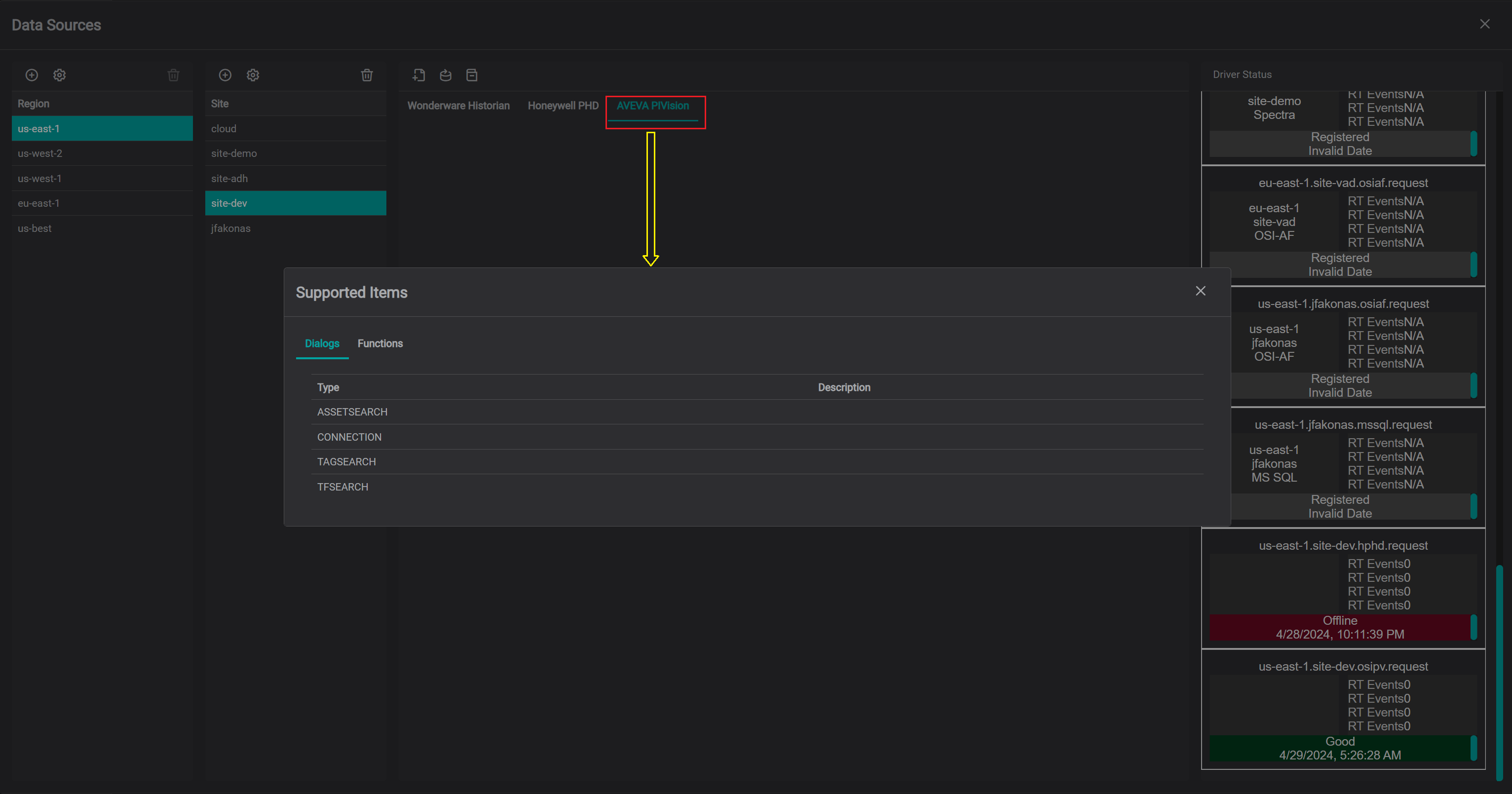

To verify data communication with the driver, click on "Supported Items" icon. If communication is established, the popup
dialog will show supported driver dialogs and functions.
