Usage

The IOTA to PI Vision (PV) Driver allows to visualize PI Vision displays via Live-Rendering concept, where PI Vision displays are maintained by PI Vision as authoring software and IOTA Vue is used just to visualize PI Vision displays in locked mode.
In order to support original PI Vision display references for navigation purposes - IOTA Vue creates IOTA native view for each linked PI Vision display. In addition, IOTA Vue allows to enrich each linked PI Vision display with IOTA specific components or data as an overlay on top of PI Vision display data.

Warning

In current PI Vision Driver version - custom symbols are not visualized.

Link PI Vision Display

Note

Before linking to PI-Vision displays - make sure that PV Driver is up and running

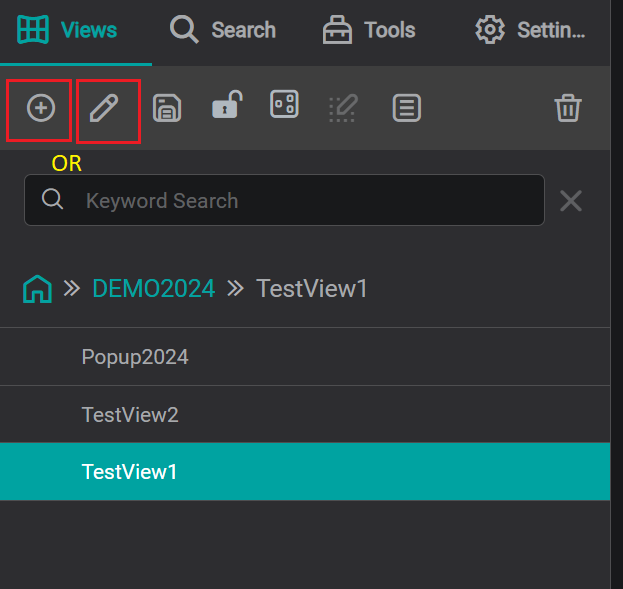

1. In the left pane, under Views tab - Create new IOTA View or Edit existing one



   add or edit view

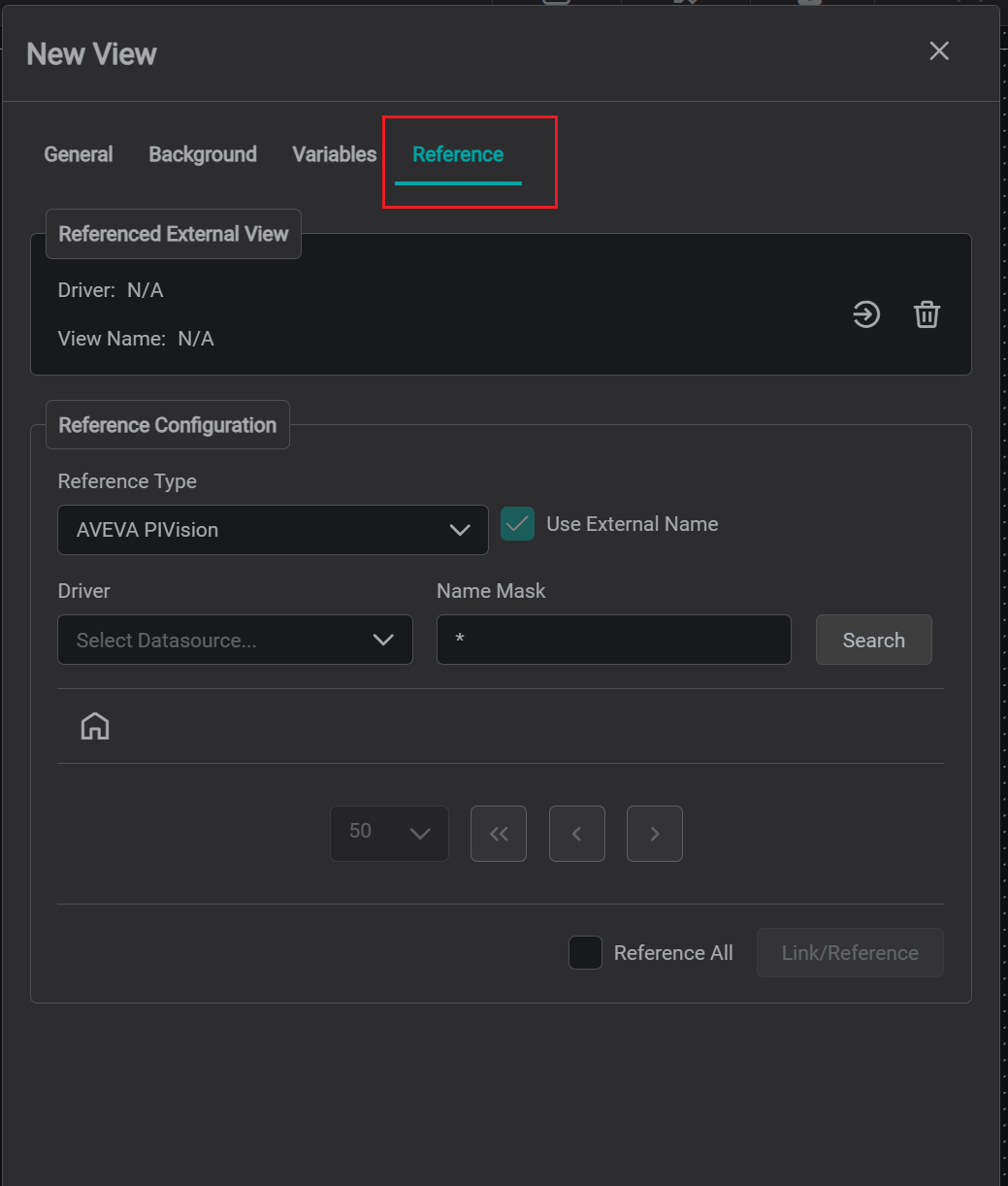

2. In View settings dialog - navigate to Reference tab



   reference tab

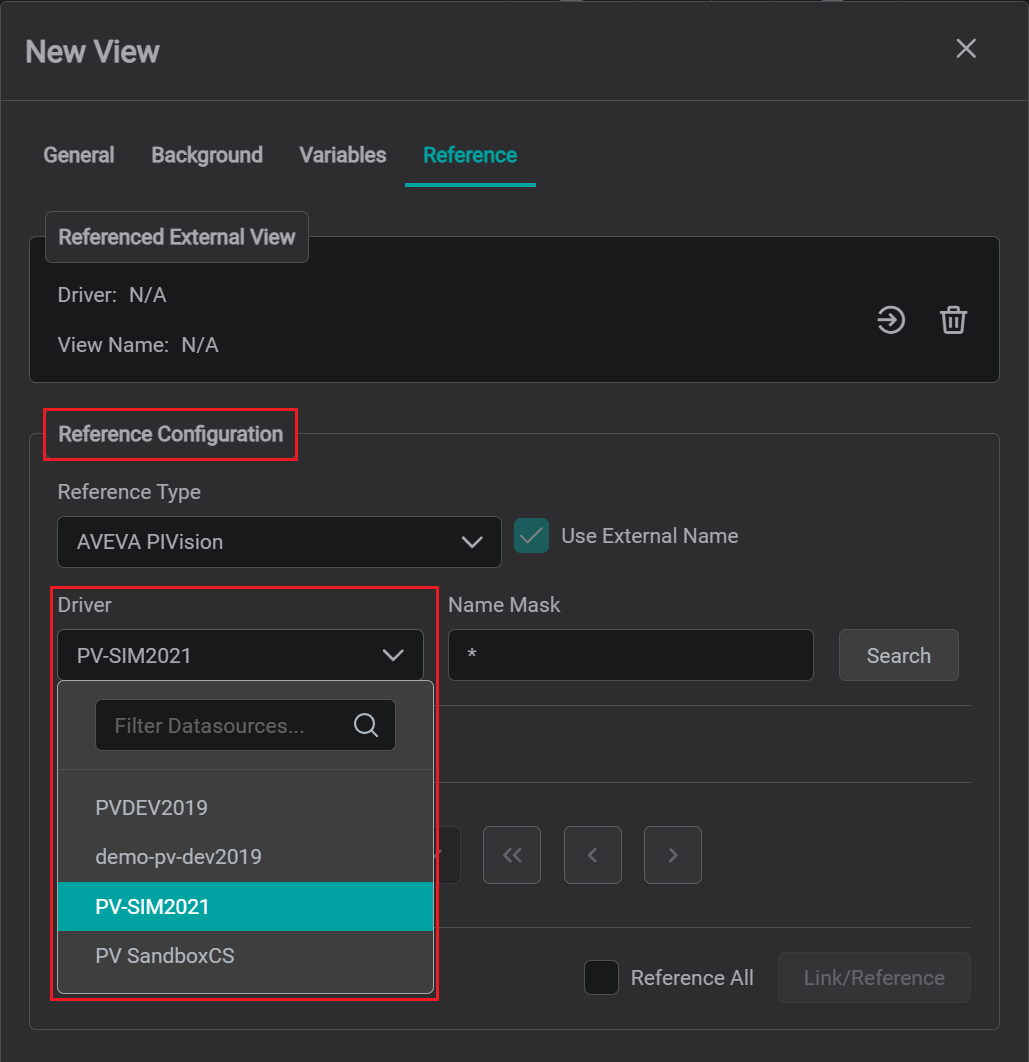

3. Under Reference Configuration section - please click on Driver dropdown and select PI Vision connection instance of interest



   select pi vision instance

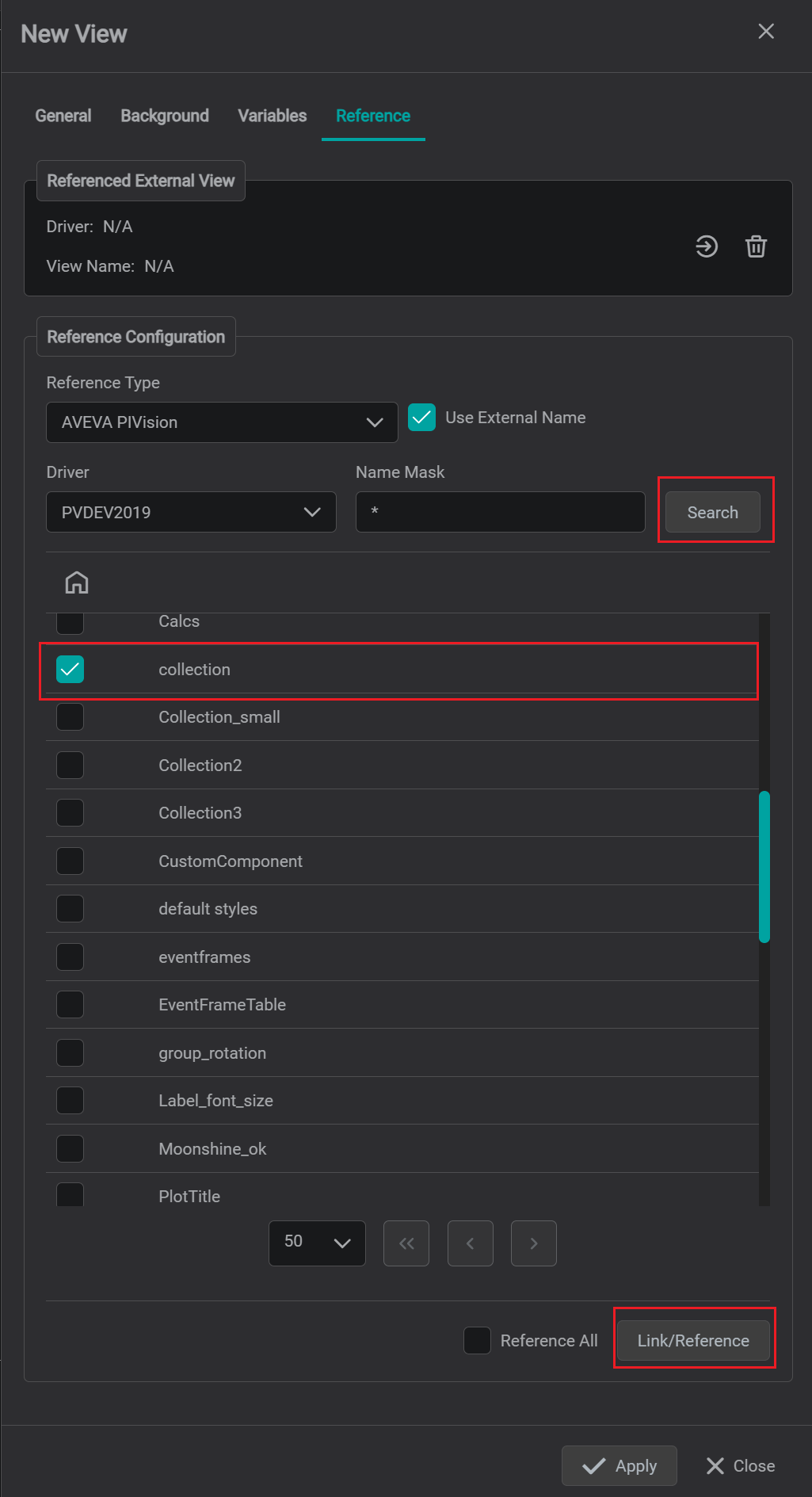

4. Search and pick one or more PI Vision display(s) to be referenced in IOTA Vue then click on button Link/Reference. In case multiple displays are selected, IOTA Vue will create new corresponding views and put them under currently selected view.



   select pi vision display

   Warning

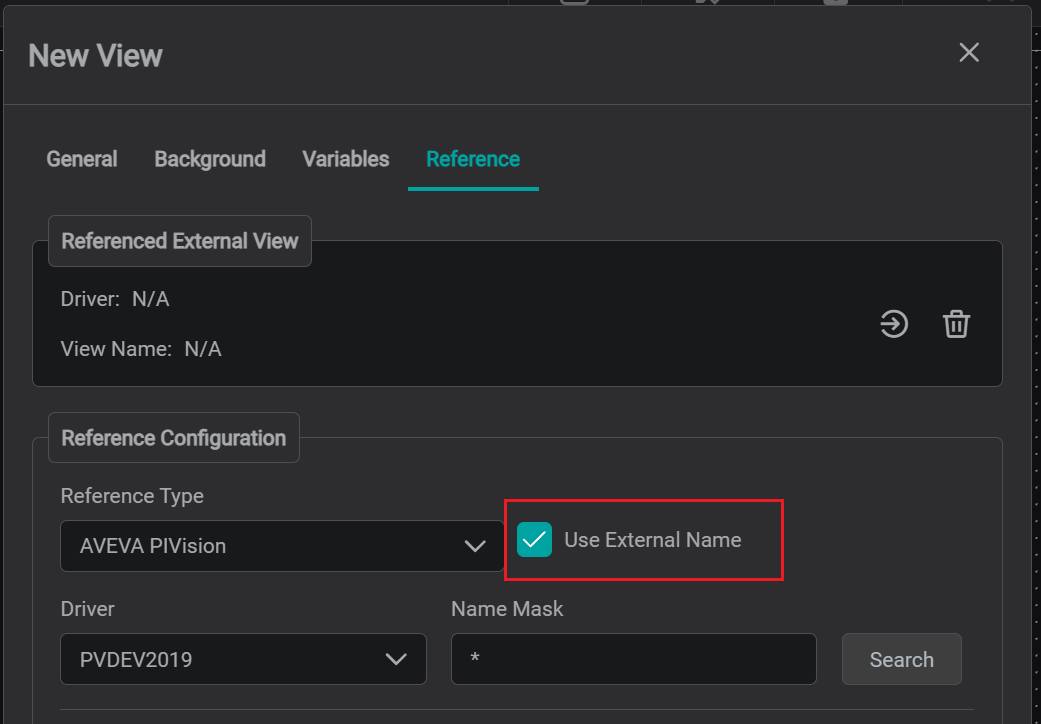

   Please note checkbox Use External Name. if checked - the new or existing view will be renamed to PI Vision display name when Link/Reference button is clicked.



   verify linked pi vision display

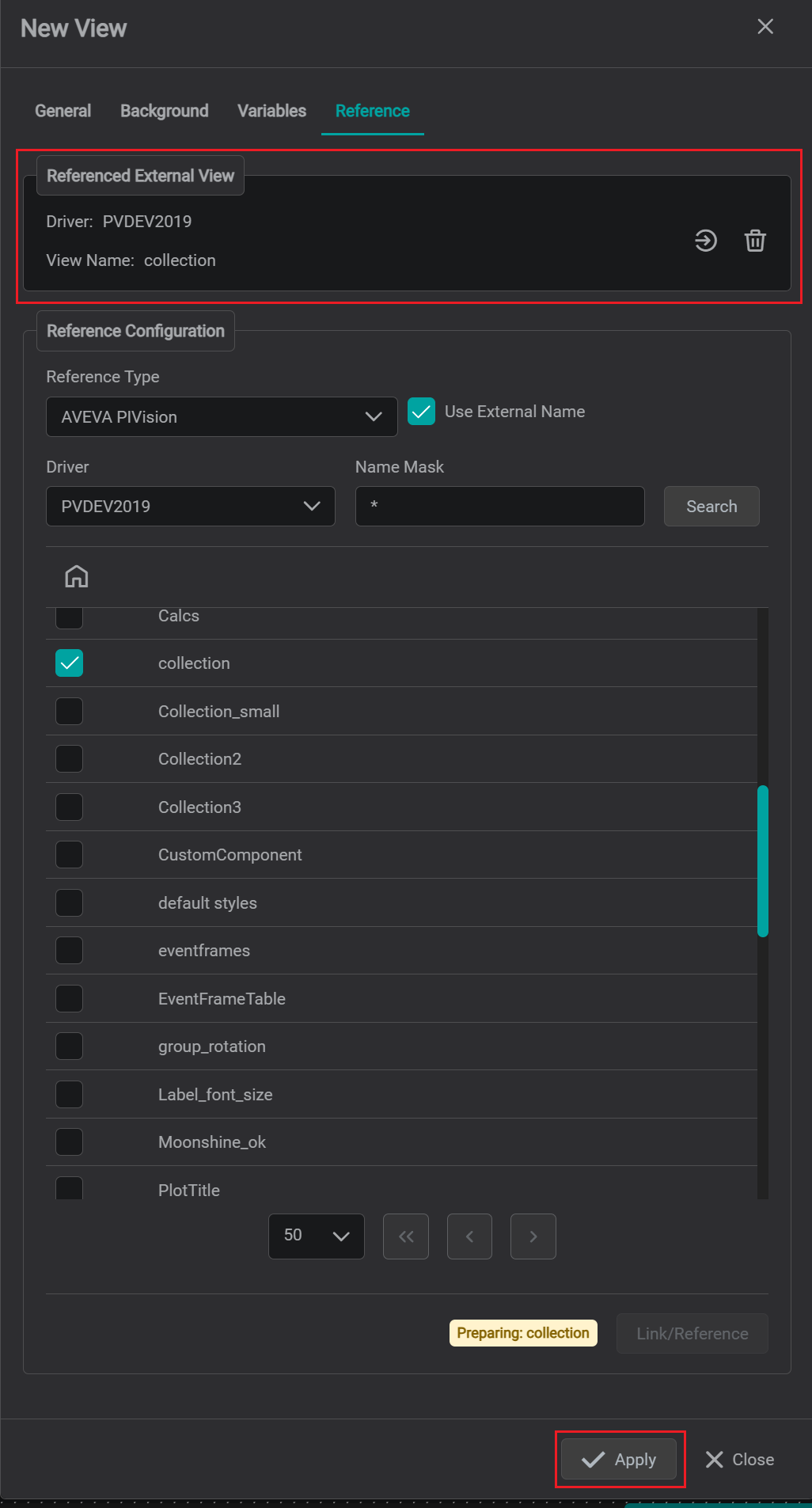

5. At this stage - the PI Vision display is linked to IOTA view. The indication that IOTA view is linked to PI Vision display can be verified in Reverenced External View section. Click on Apply button to close the view preferences dialog and load referenced PI Vision display.



   linked view

Remove Link PI Vision Display

1. To remove link to PI Vision display, in the left pane, under Views tab - open linked view settings by clicking on Edit pencil icon.



   edit linked view

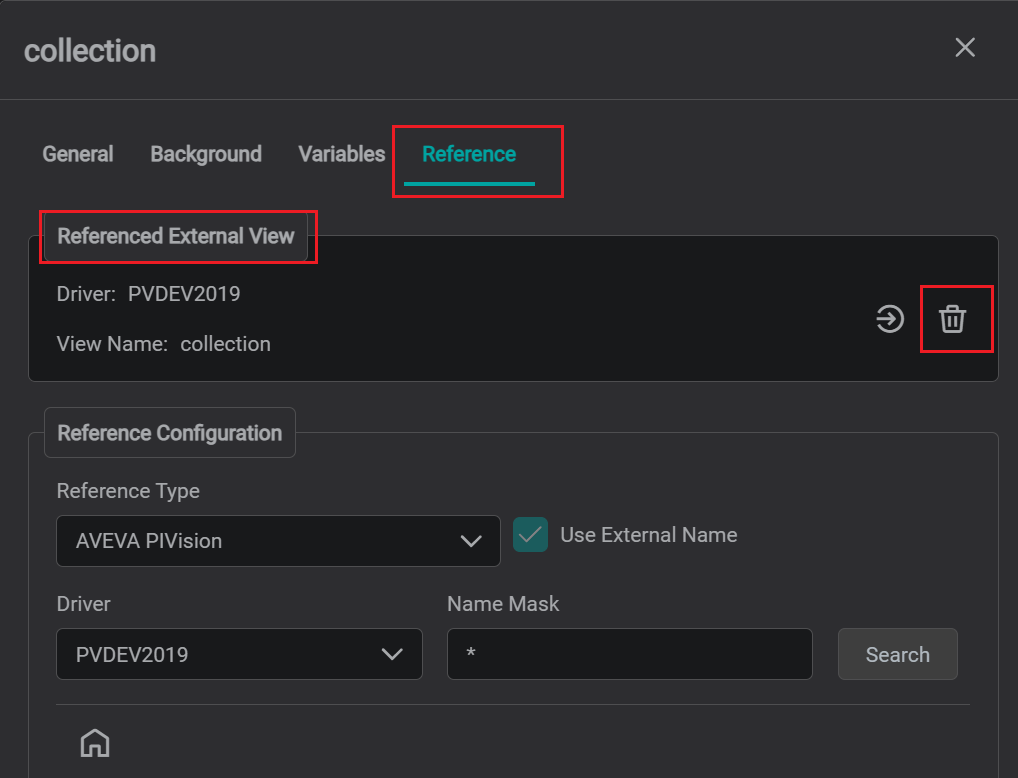

2. Navigate to Reference tab and under Referenced External View section - click on Delete icon. The confirmation dialog will be displayed. Click on Yes button.



   delete link to pi vision display

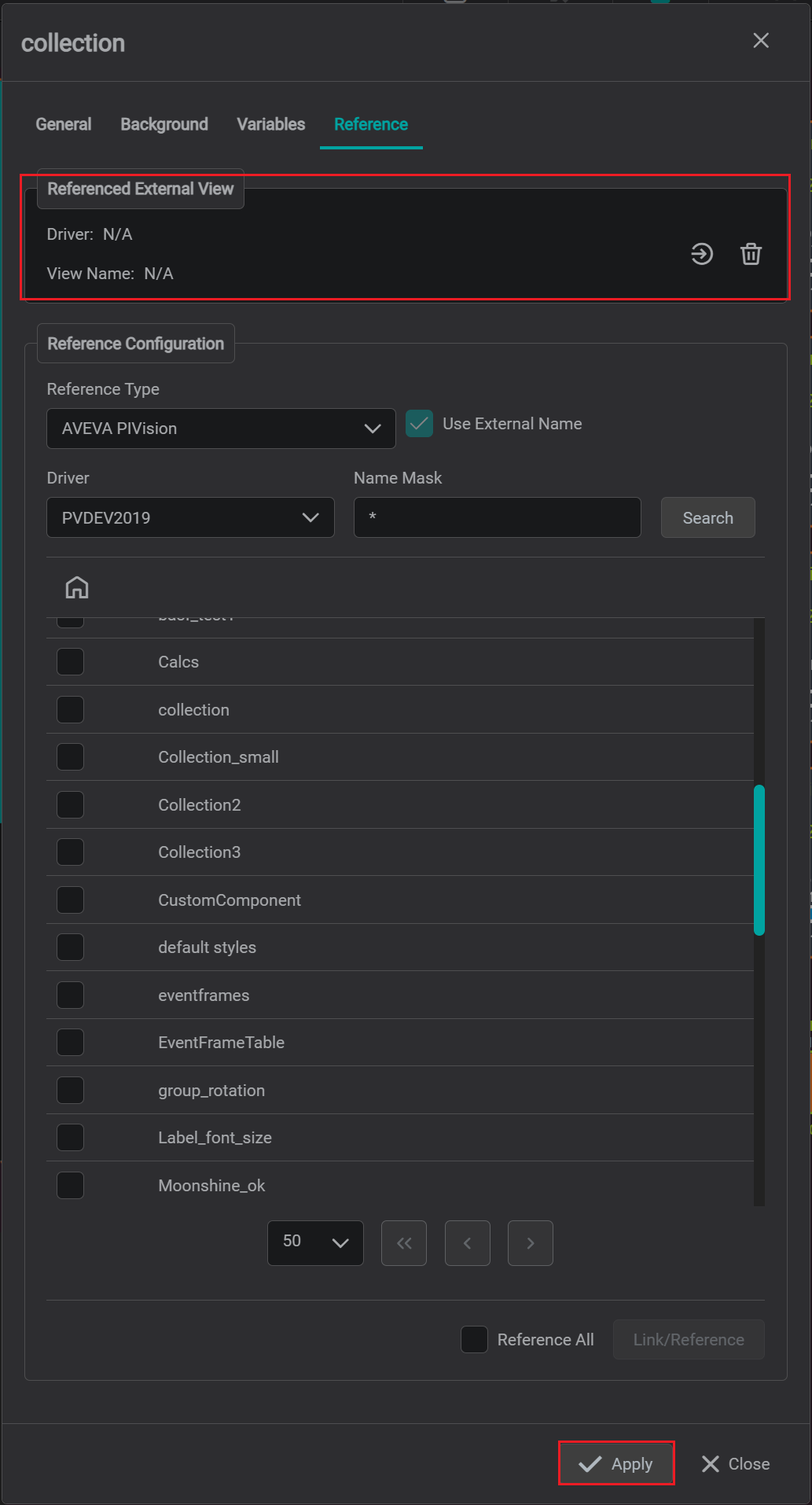

3. At this stage - IOTA view is no longer linked to PI Vision display. Please verify under Referenced External View section that both Driver and Name has N/A instead of names. Click on Apply button to close view settings dialog and reload view in the workspace. On reload - IOTA view should be empty.



   unlinked iota view

Convert Linked PI Vision Display to IOTA View

1. To convert linked PI Vision display to IOTA native view, in the left pane, under Views tab - open linked view settings by clicking on Edit pencil icon.



   edit linked view

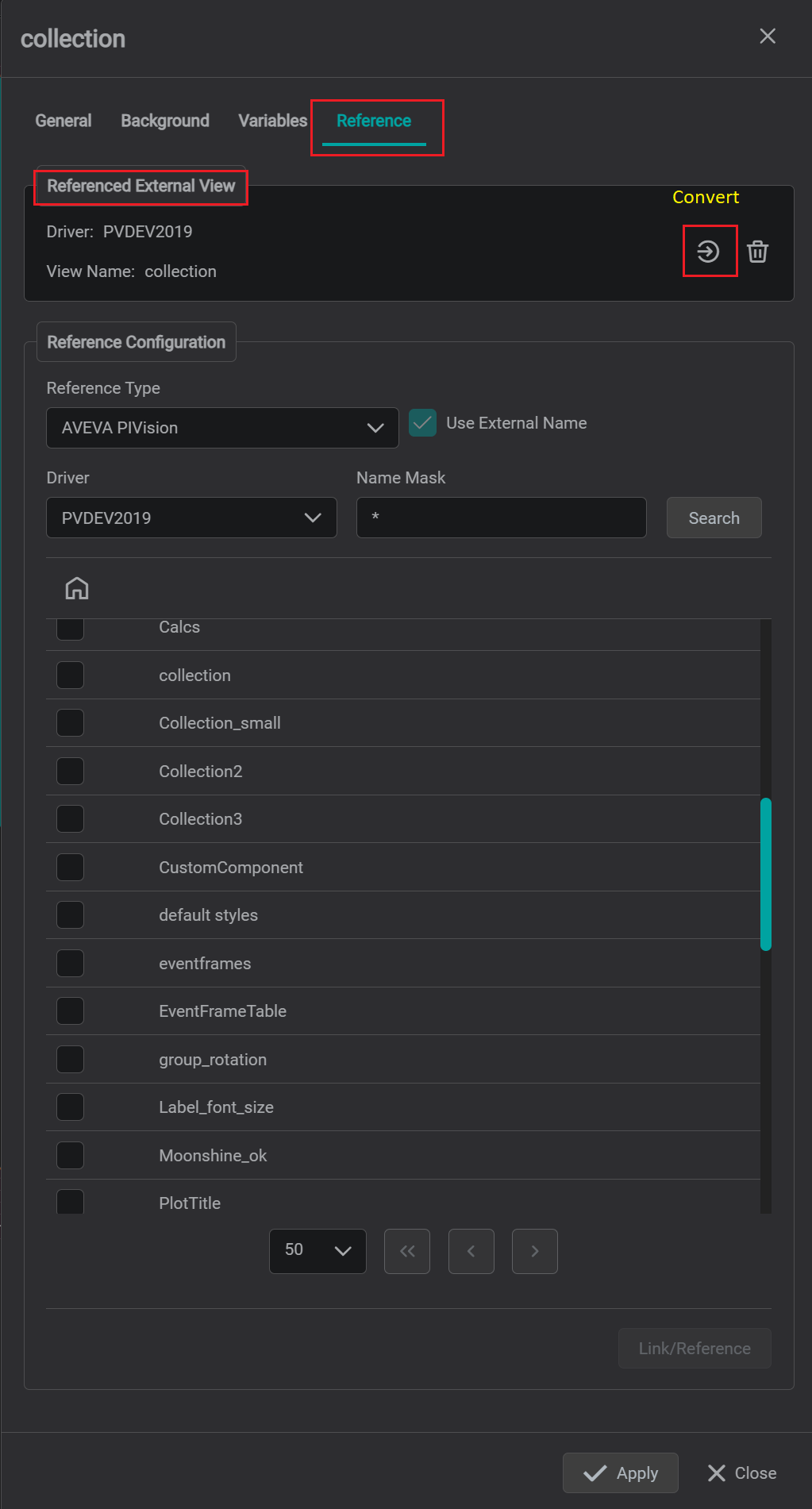

2. Navigate to Reference tab and under Referenced External View section - click on Convert icon. The confirmation dialog will be displayed. Click on Yes button.



   convert pi vision display to native iota view

3. At this stage - IOTA view is no longer linked to PI Vision display. Please verify under Referenced External View section that both Driver and Name has N/A instead of names. Click on Apply button to close view settings dialog and reload view in the workspace. On reload - IOTA should contain PI Vision display as native view.



   converted iota view
