Table

About 6 min

The Table component is an effective way to show structured data.

Supported data types

The following table outlines the data types supported by the Table component:

Data Type	Supported?
Tags	🟢
Assets	🟢
Timeframes	🟢
Tag Search	🟢
Asset Search	🟢
Timeframe Search	🟢

Note

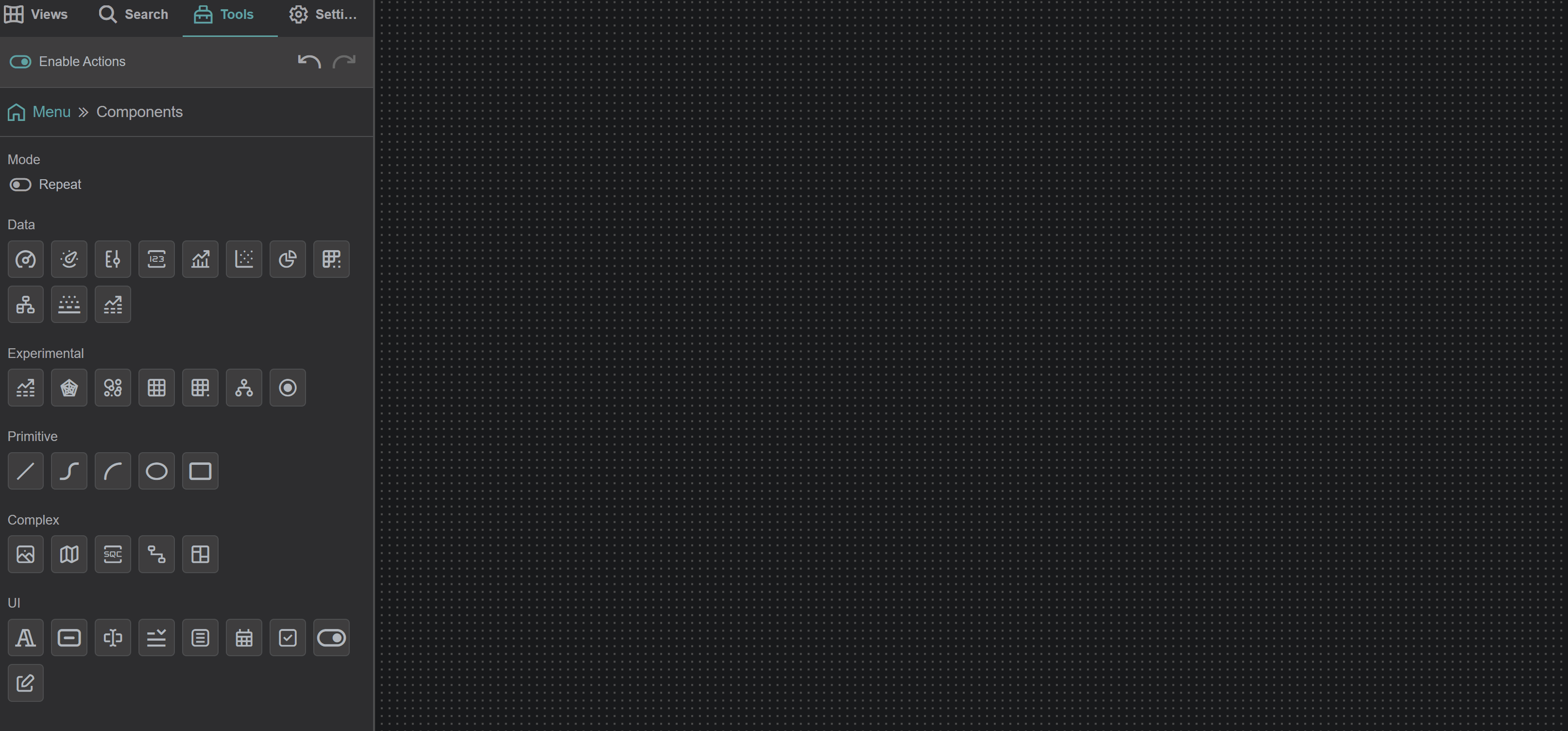

While you can create a Table using timeframes, the TimeFrame component is better suited for this type of data.

Quick Start

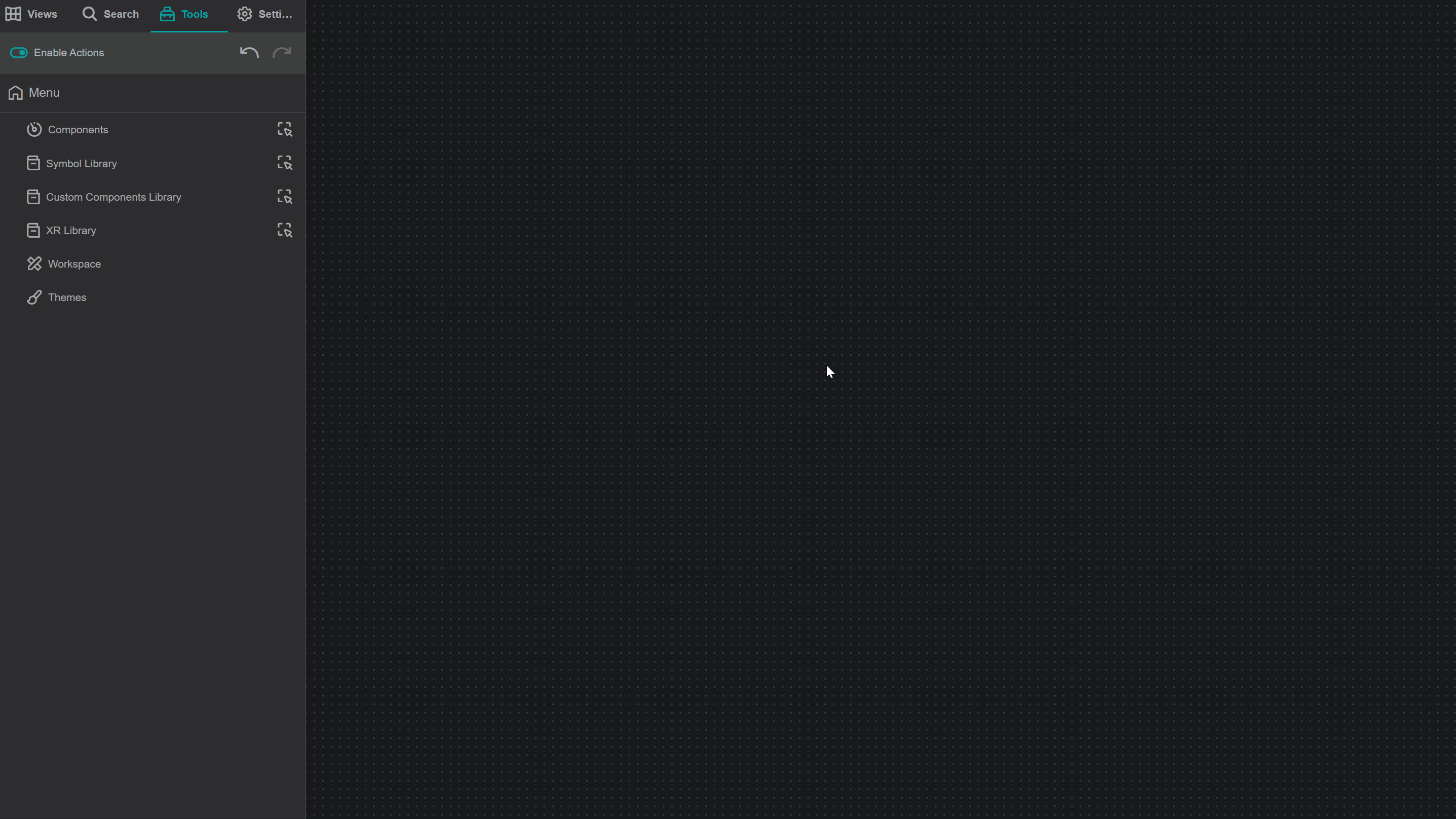

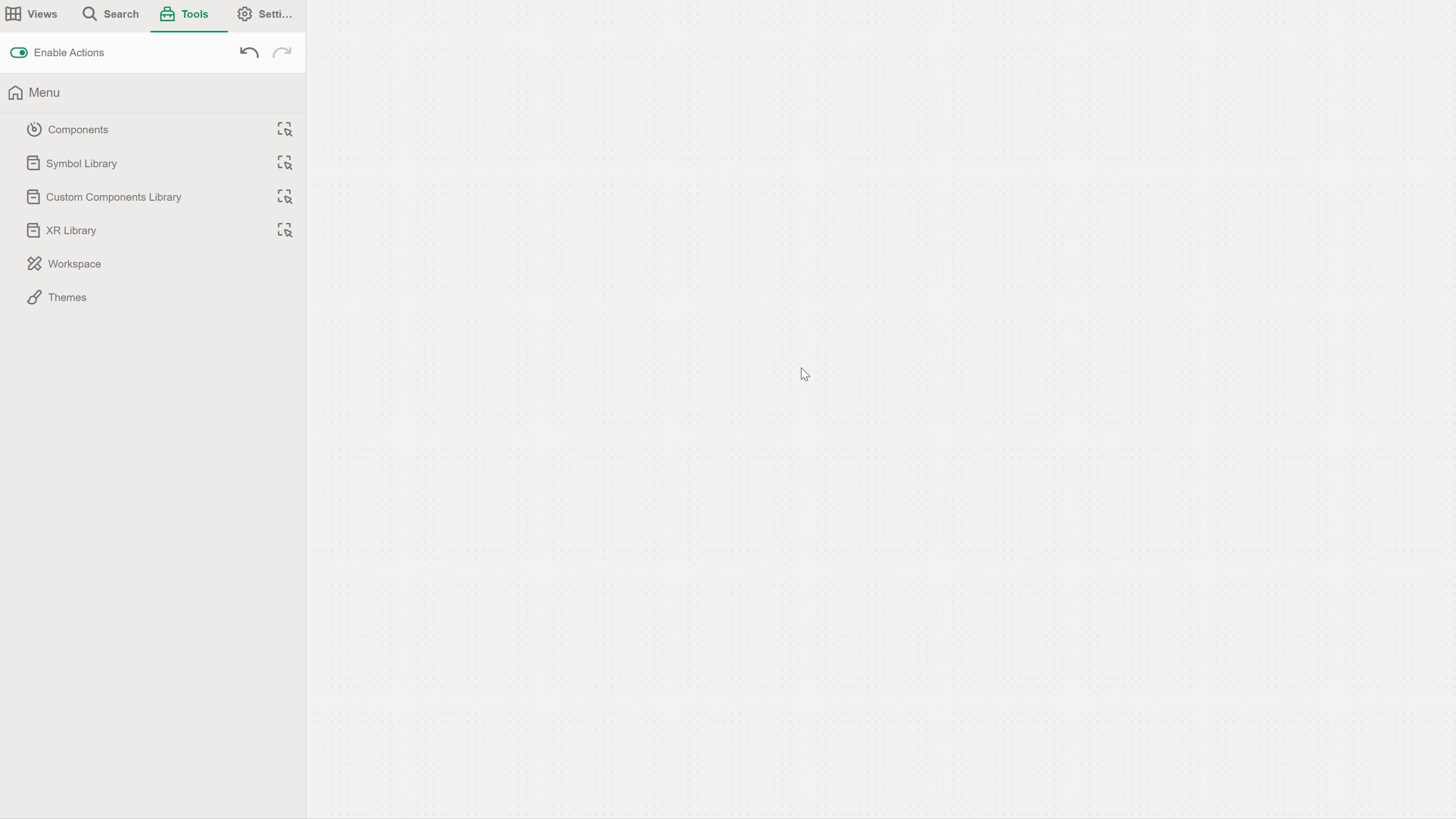

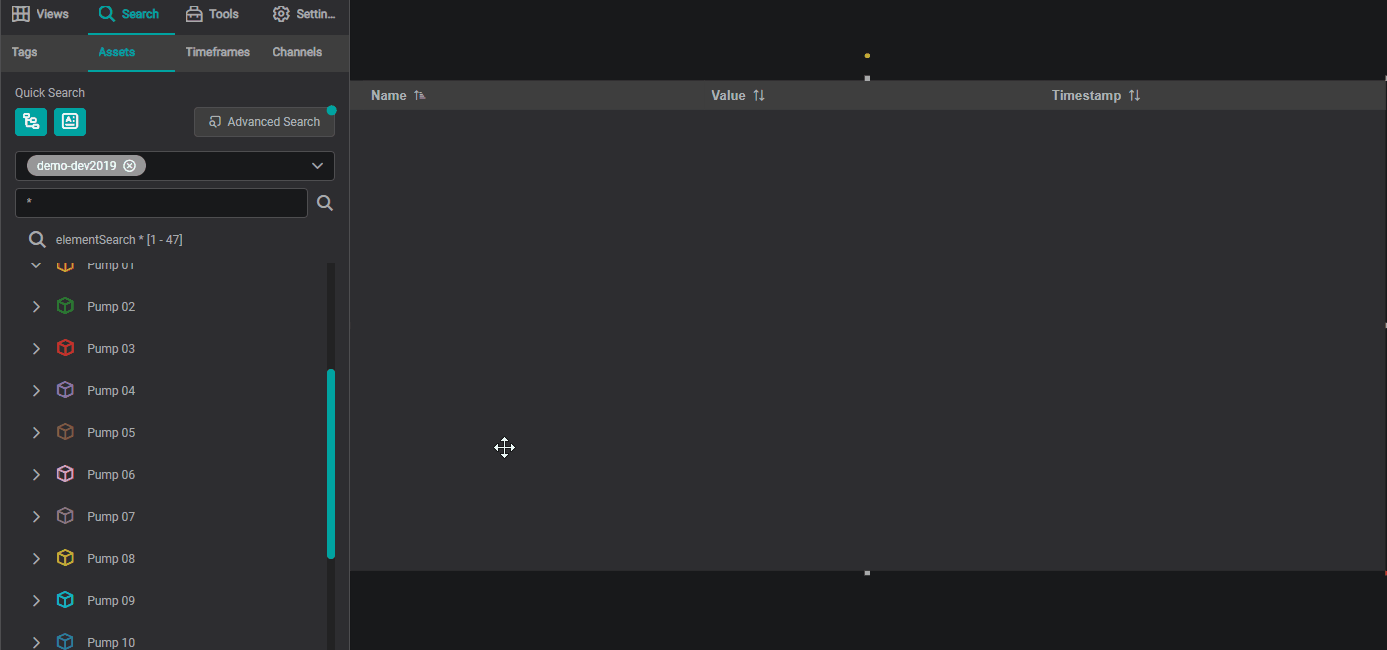

To quickly start using the Table component, drag and drop it onto the work area. Search for the data you want to visualize and map it onto the component:

Property Name	Description
Grid Color	Color of the grid
Grid Size	Size of the grid step
Snap to Grid	Enable/Disable snapping to the grid
Show Grid Lines	Show the grid as lines
Show Grid Dots	Show the grid as dots

Property Name	Description
Reference Point Color	Sets the color of the reference point (see Rotation and Position for more details)
Anchor Points Color	Sets the color of the rest of the seven anchor points
Point Options Color	Sets the color of the point options (only for Line and Bezier Curve)
Show Point Options	Show/Hide the point options

Property Name	Description
Active Border Fill	Sets the fill color of the border
Active Border Width	Sets the width of the border

Every component has a unique variable name. This variable name can be used to reference the component in multi-state configurations and other scripts.
On creation, every component is given a default name. This can be overwritten to be more user-friendly. To do so simply overwrite the value in the variable input field.

Arrange / Remove

Send Backward - move object one layer down
Bring Forward - move object one layer up
Send to Back - place object under all layers
Bring to Front - place object above all layers
To send/bring objects to the front/back use the first four buttons.
Any set of components can be deleted by either using the button or delete/del keyboard keys.

Rotation and Position

Reference Anchor Point - allows you to select one of the anchor points as a reference so that you can set an Angle (clockwise) of incline relative to this point. By default the reference anchor point is the top left corner. You can also rotate the component by dragging one of the yellow corner points.
You can set the position of the component by setting the X and Y coordinates relative to theReference Anchor Point and the top-left corner of the work area.
You can drag any of the anchor points to change the width and height of the component, or you can set it manually by editing the Width and Height boxes.
Set Lock Aspect Ratio so that while changing width and height, the component width to height ratio stays the same
Transform allows you to view the component as a mirror or a reflection of itself

Actions

Actions or multi-states are programmable conditional states handled by user-generated code.

Note

Actions that have script handlers are marked with a circle
OnData
in the top right corner.

The currently supported actions are described in the table below:

Action	Trigger
OnCreate	When the component is created
OnFocus	When the component is selected
onClick	When the component is clicked or the selection is changed
onData	Each time the data changes for assigned channels
onTick	20 times per second
onDblClick	On mouse double click
onHover	When the mouse is over the component (and not when the mouse is not)

Property Name	Description
Show Title	Show/hide the title line
Height	Height of the title line
Text	Text itself
Background Color	Background color of the title line
Text Color	Text color of the title line
Text Align	Alignment of the text within the title line: Left, Center, Right

Symbol	Function
	Bound Input Pin
	Bound Output Pin
	Unbound Pin

Properties

Using the Attribute Mapping Dialog you can add attributes to the current mapping and change their properties:

Attribute Mapping Dialog

Add attributes to the current mapping one by one with the Add button or all at once with the Add All button
To hide an attribute click on Toggle Visibility
To access to Attributes properties click on Properties
To save the attribute mapping (without adding the current channel) press Train Only
To save the attribute mapping and add the current channel press Train and Add
To exit the screen without saving your changes, press Close

Global Time Control

To activate the Global Time Control panel click on Global Time Control Settings button in the upper area of the View:

Additionally, you can configure the Global Time Control option in Settings for every component on the current display.

Use Component as Global Time Control : if enabled, the component is able to set the time context for all components on the current display.
Ignore Global Time Control : when enabled, the option allows the component to function independent of global time set elsewhere.

The example below demonstrates the usage of the Global Time Control panel and how the value changes in the space of an hour:

Channels

The Channels section lists data that is assigned/mapped onto the component.
In this menu, you can change the data value color, adjust the display properties and un-assign or remove the data from the component.

Properties

The properties menu for Channels allows you:

to modify the Label of the DataSource
to set UOM, lower and upper values
to choose number format and displayed digits
to adjust the line formatting for trend line components
to configure the additional regression lines that can be plotted for supported components

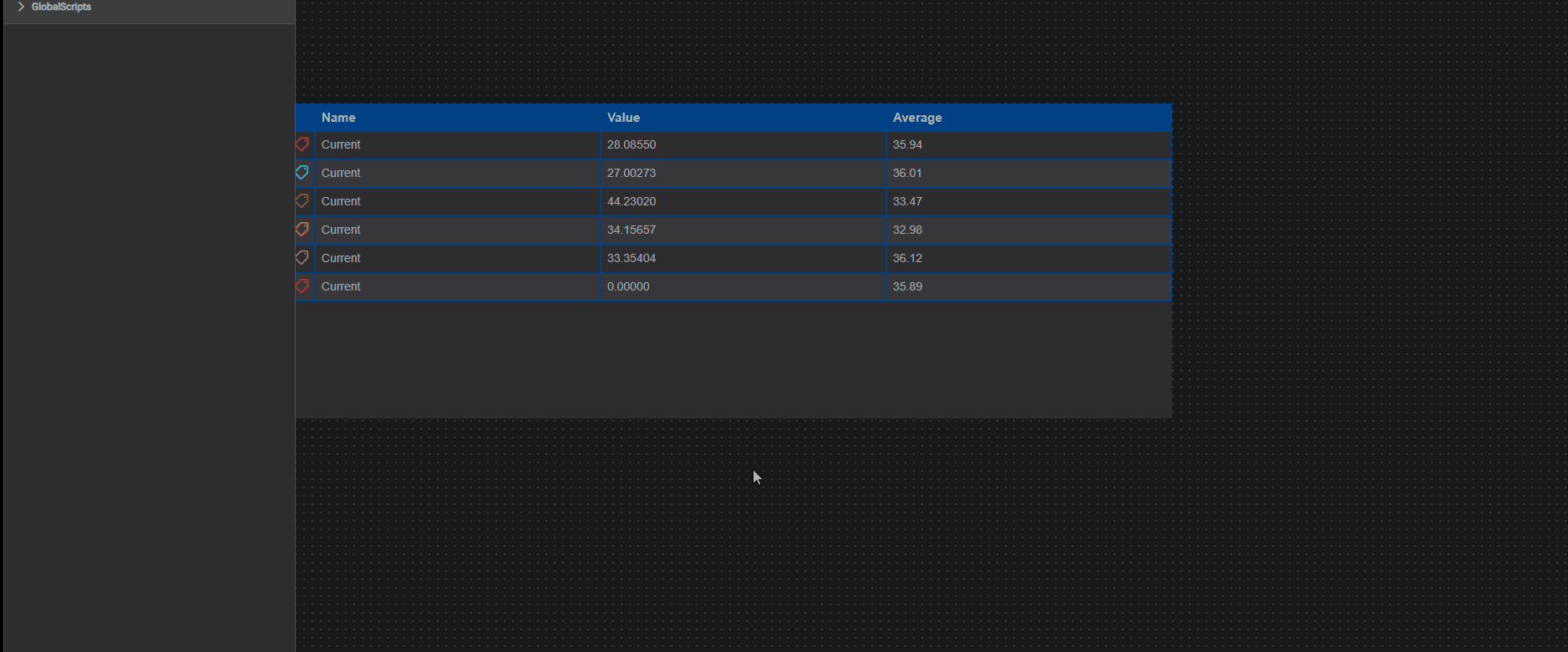

Supported Multi-State Parameters

Each of the parameters listed below can be used as a multi-state, i.e. used in actions and scripts:

Title and Text
- Text
Rotation and Position
- Rotation
Common
- Blink
- Hidden
Title
- Show Title
- Show Minimized
- Title Source
- Title Path Levels
- Title Text
- Title Background Color
- Title Color
- Title Text Align
- Title Height
Component Specific

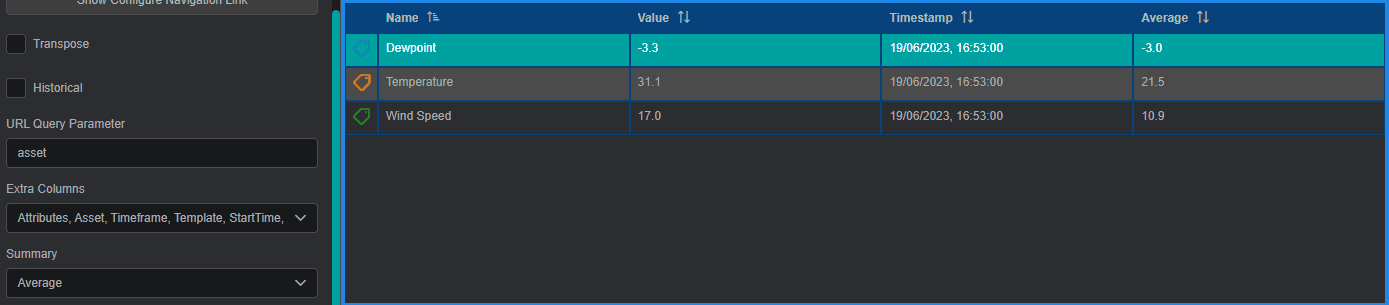

- Summary

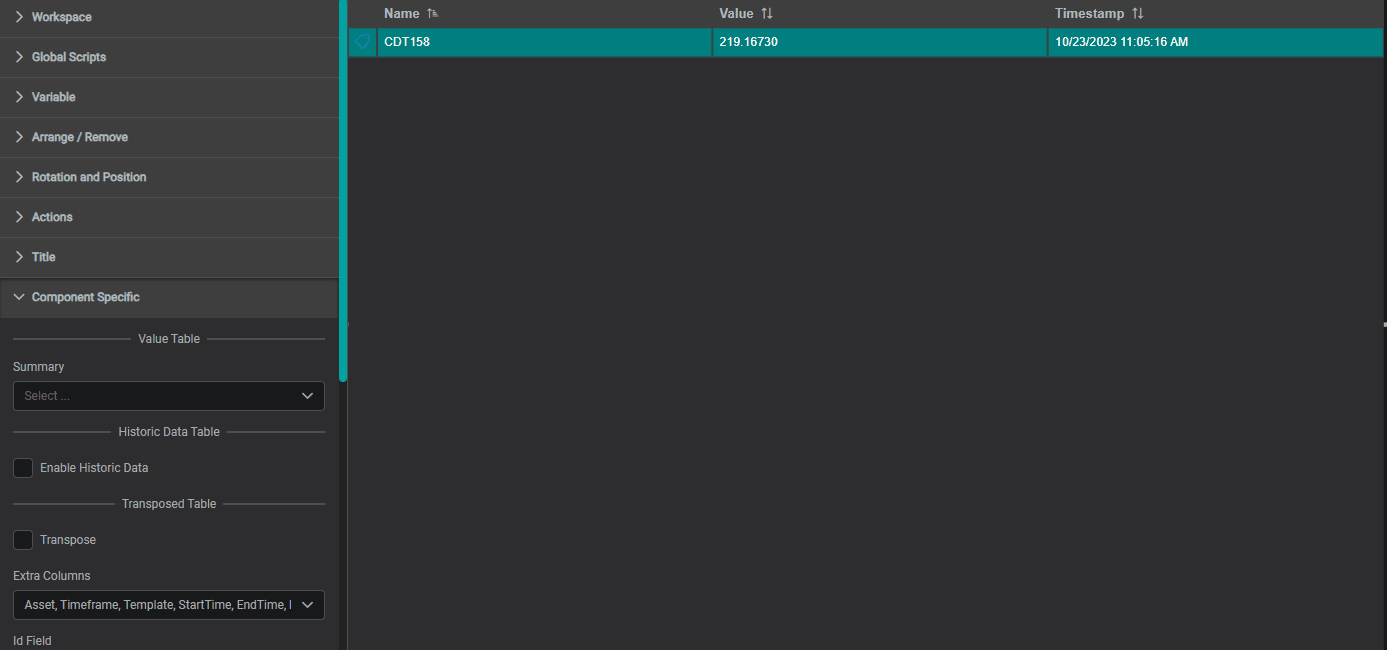

- Historical
- Transpose
- Extra Columns
- Id Field
- Option Value
- Show Configure Multi-State
- Show Configure Navigation Link
- Show Configure Columns

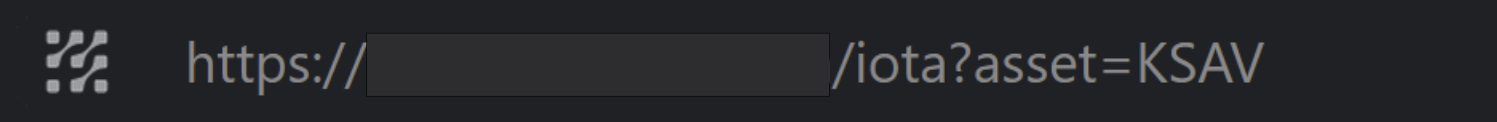

- URL Query Parameter
- Marker Icon
Format
- Count of Visible Header Rows
- Count of Visible Rows
- Show Table Head
- Global Filter
- Show Footer
- Column Filter
- Paginator
- Sortable
- Disable Selection
- Show Name
- Show Description
- Show Timestamp
- Show Value
- Show UOM
- Show State
- Show Type Icon
- Show Trend
- Label Source
- Path Levels
- Number Format
- Display Digits
Visual Properties
- Border Color
- Border Width
- Border Radius
- Background Color
- Table Grid Color
- Table Grid Width
- Header Row Color
- Header Row Text Color
- Even Row Color
- Even Row Text Color
- Odd Row Color
- Odd Row Text Color
- Highlight Row Color
- Highlight Row Text Color
- Hover Fill
- Hover Text
- Footer Row Color
- Footer Row Text Color
- Use Attribute Color
- Enable Shadow
- Shadow Color
- Shadow Offset X
- Shadow Offset Y
- Shadow Size
- Shadow Blur
Tooltip
- Show Tooltip
- Show Current Value
- Show Last Value
- Number Values
- Show Time Range
- Time Range Interval
- Summary
Font
- Title Font Family
- Title Font Size
- Title Font Spacing
- Title Font Italic
- Title Fon Bold
- Title Font Underline
- Label Font Family
- Label Font Size
- Label Font Spacing
- Label Italic
- Label Bold
- Label Underline
- Header Font Family
- Header Font Size
- Header Font Spacing
- Footer Font Family
- Footer Font Size
- Footer Font Spacing
Pin Options
- Current Pin Options
- Pin Input
- Pin Output
Global Time control

Ignore Global Time Control

Table Settings

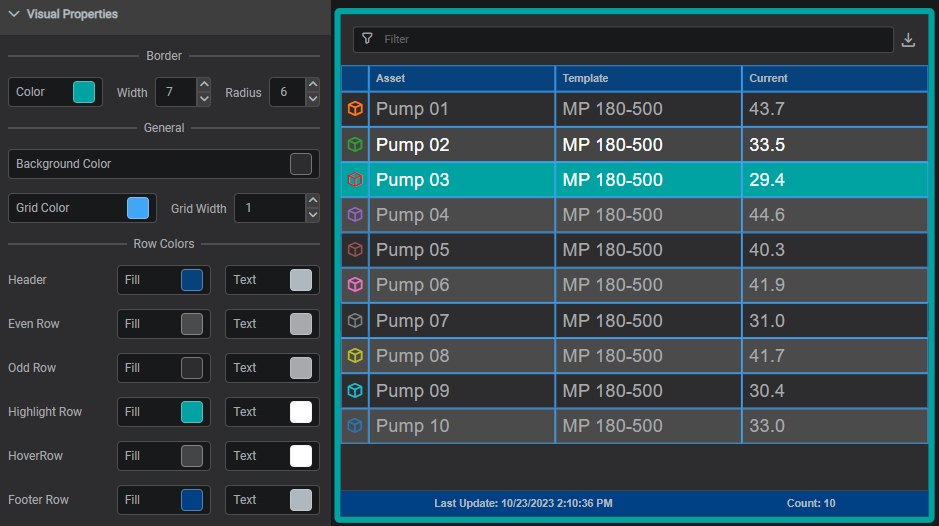

Visual Properties

The Visual Properties section provides options for customizing the component's appearance by changing the color schema.

Border Color: Defines the component's border color
Border Width: Controls the width of border frame. Default: 0 - invisible border
Border Radius: Defines the curvature of the component’s corners
Background Color: Defines the component's background color
Grid Color: Defines the color for the table grid
Grid Width: Defines the width of the table grid. Default: 0 - invisible border
Header Row Fill: Defines the color for the header row
Header Row Text: Defines the color for the text in the header row
Even Row Fill: Defines the color for the even table rows
Even Row Text: Defines the color for the text in the even table rows
Odd Row Fill: Defines the color for the odd table rows
Odd Row Text: Defines the color for the text in the odd table rows
Highlight Row Fill: Defines the color for the highlighted row
Highlight Row Text: Defines the color for the text in the highlighted row
Hover Row Fill: Defines the color for the row on hover
Hover Row Text: Defines the color for the text in the row on hover
Footer Row Fill: Defines the color for the footer row
Footer Row Text: Defines the color for the text in the footer row

To pick color of your interest

To change color for specific visual property, click on the color box next to property description. The color picker dialog will be displayed.

Pick the color of interest. The video below shows how to choose a solid, gradient or theme color.

You can add Gradient Stops by double clicking and to remove - by pulling it up.

To close the color-picker dialog - click on the property color box (Step 1).

Closing color-picker dialog

Clicking on the workspace area instead of Settings Tab area -
component settings will disappear since component focus will be lost.

The Tooltip Setting provides data reference for PI AF attributes and descriptive statistics when user interacts with a component by hovering over it.

Show Current Value : Shows Current Value
Show Archive Values : Shows Archive Values, the number can be set in Number Values
Show Summaries : Shows Summaries for set Time Range Interval (can be set in seconds (s), minutes (m), hours (h), days (d), weeks (w), months (mo), years (y))

Summary Types :

Average : the average value in the set period
Minimum: the minimum value in the set period
Maximum: the maximum value in the set period
PercentGood: the percent good value in the set period
StdDeviation: The standard deviation of the value in the set period
PStdDeviation: The percent standard deviation of the value in the set period
Total: The sum of the values in the set period
Count: The number of data points in the set period
Range: The difference between the largest and smallest value in the set period

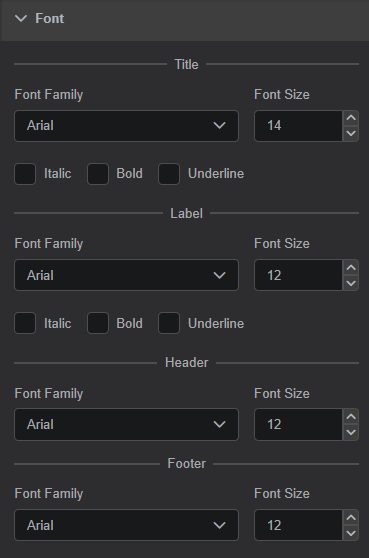

Font

The Font section provides options for customizing the component's font properties. The following fonts can be changed:

Title
Label
Header
Footer

Font Properties

Font properties available for edit:

Font Family : Allows to select different font family. Default: Arial
Font Size : Controls the font size. Default: 12
Italic : Sets font to italic
Bold : Sets font to bold
Underline : Sets font to underline

Format

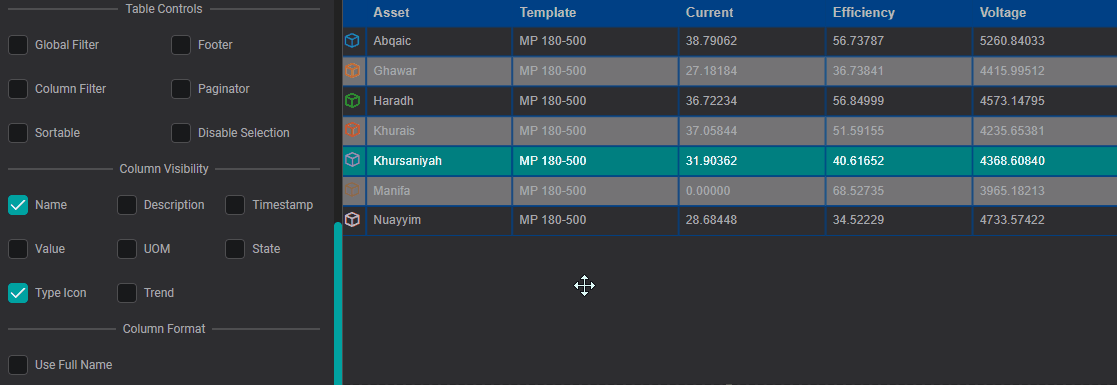

The Format section provides options for customizing displayed information.

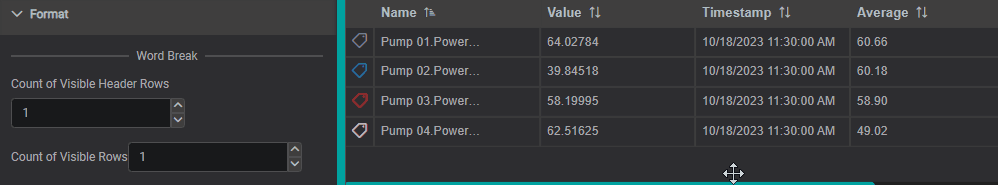

Count of Rows

You can modify the number of text rows within the header row or individual rows using the Count of Visible Header Rows and Count of Visible Rows fields.

By increasing the number of rows, the text will automatically wrap at spaces to fill the number of rows visible if it is not able to fit on the row above.

Note

If there are no spaces in the text, the text will not wrap.

Table and Columns

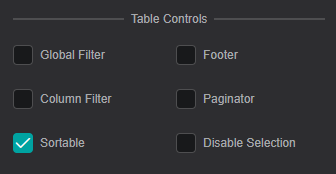

Under Table you can add or remove different features to change the properties of the overall table.

Global Filter: Inserts a search bar to filter results and a download button at the top of the table
Column Filters: Adds a filter option to the top of each column
Footer: Inserts an item count at the bottom of the table
Paginator: Determines the quantity of items per page
Sortable: Enables sorting by any column from top to bottom or bottom to top. If not enabled, the attribute mapping order is used.
Disable Selection: When checked, no item can be selected

Download

Using the Download button in the top right corner of the Table when the Header is shown will download all data from the table as a .csv file.

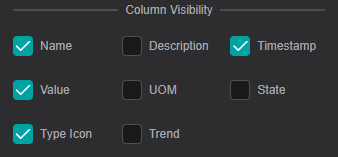

Under Columns you can add or remove additional columns as well as change the number format of the value.

Name: Attribute name
Full Name: Attribute Name plus an Asset Path
Description: Attribute Description
Timestamp: Show time stamp of associated value
Value: Show value of item for given time stamp
UOM: Show units of Measure for value
State: Optional column, available only for historic tables
Type Icon: Show Tag, Asset, or Timeframe symbol
Trend: Shows a line chart of historical data in the table cell
Number Format: Updates the number format for the value

Number Format

The Number Format allows you to define the numeric representation of the legend's Value property.
IOTA supports custom formats (for more information please click Format: Number Format ). If using a custom format, simply type the desired format in the box under Number Format.

Number Format Examples

Number Format	Displayed Value
General	2376.28
0	2376
0.0	2376.3
0.00	2376.28
0.000	2376.280
#,##0	2,376
#,##0.0	2,376.3
#,##0.00	2,376.28
#,##0.000	2,376.280
(#,##0)	(2,376)
(#,##0.00)	(2,376.28)
0%	237628%
00.0%	237628.0%
Scientific	2.38E+3
Channel	2376.28*
System	2376.28**

* as in the database

** as in the system

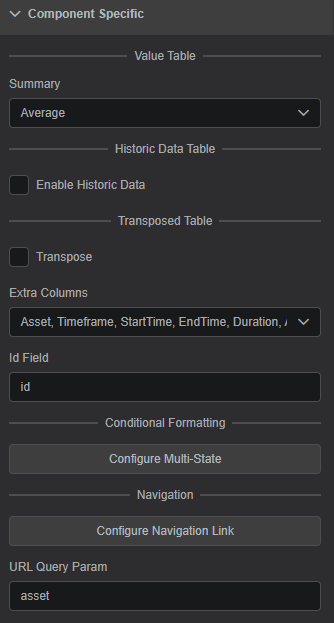

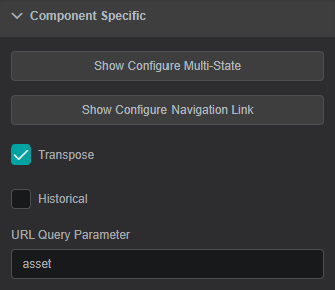

Component Specific

The Component Specific section provides options for modifying various properties for the Table.

Show Configure Multi-State

You can view and configure multistates for your table using the Show Configure Multi-State button. This functionality defines the coloring of data within the table.

You can configure the multi-state based on the channel properties displayed. You can also view existing multistates within this window.
Using the multi-state configuration, you can configure the Background Color and Text Color for each parameter based on the channel's value.

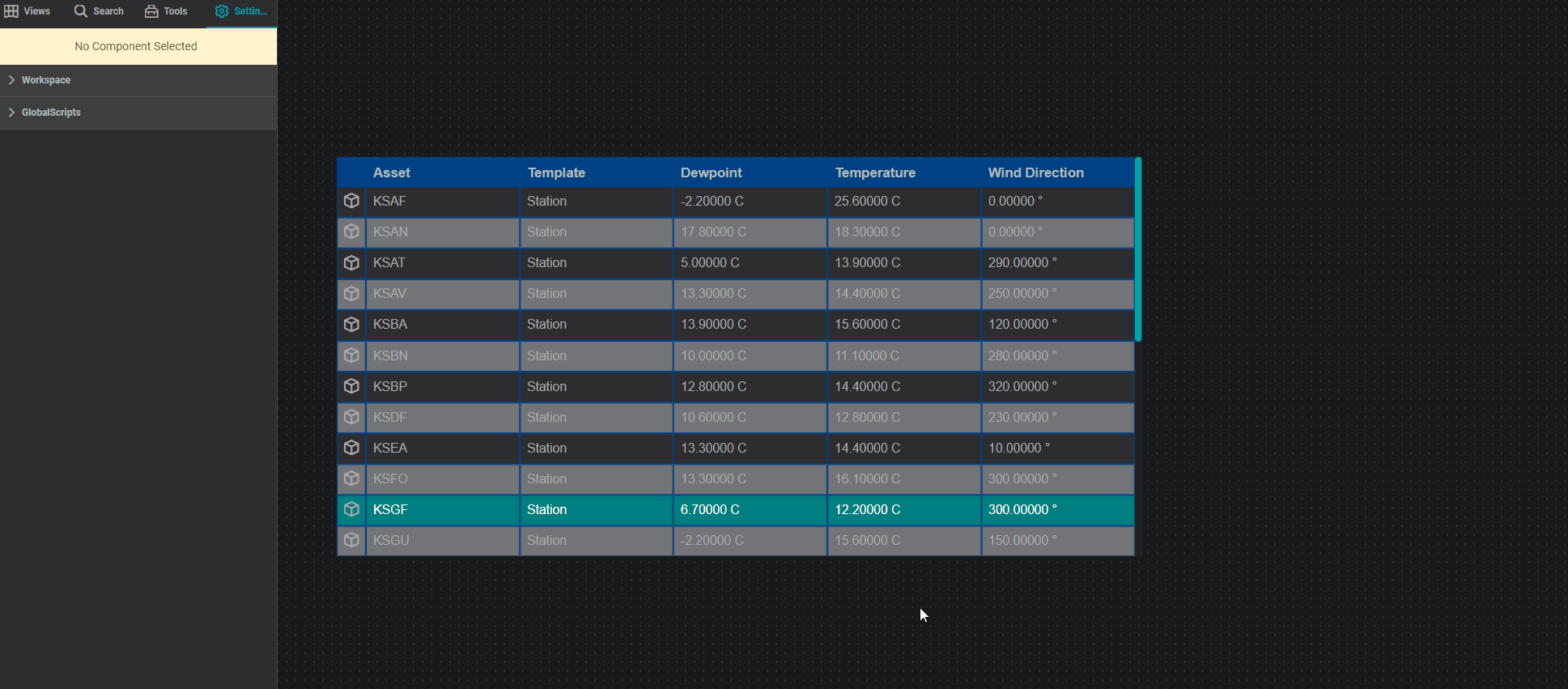

You can view and configure navigation links for your table using the Show Configure Navigation Link button. The navigation link will bring you to a new location when clicking on them in your Table.

There are three types of navigation that you can configure: GoTo, GoToID, and GoToURL

GoTo: Specify the view that you would like to go to when clicking upon the Item (addressed by the view Name)
GoToId: Specify the view that you would like to go to when clicking upon the Item (addressed by the view ID, which will allow to keep the link in case the view is renamed)
GoToURL: For an attribute that is in URL format, this will take you to the URL.

Transpose

The transpose button allows you to pivot the rows and columns of your table.

Attribute Mapping

For Asset based tables, attributes can be added or removed to a transposed table in the Attribute Mapping section of the settings. Make sure that Attributes option is checked in the Extra Columns.

Historical

The Historical button allows you to view the archived values for the data point.

URL Query Parameter

To create a link that automatically selects a specific item in a tree, follow these steps:

Assign a URL Query Parameter name to the tree component:

Table: Assigning a URL Query Parameter Name

Integrate the assigned parameter into the link URL by utilizing the item's name as the parameter's value:

When opening the updated link, the chosen item will be automatically selected:

Extra Columns

Some extra columns can be added to the table, based on the type of the asset visualized:

Property Name	Description	Tag	Asset	Timeframe
Asset	The name of the associated asset for the value	🟢	🟢	🟢
Timeframe	The name of the event	⚫	⚫	🟢
Template	The name of the associated template for the value	🟢	🟢	🟢
Start Time	The start time of the event	⚫	⚫	🟢
End Time	The end time of the event	⚫	⚫	🟢
Duration	The length of time of th event	⚫	⚫	🟢
Attributes	The attributes associated with the channel (via Attribute Mapping)	🟢	🟢	🟢

Summary

Summary Statistics can be added to your table using the Summary drop down list.

Average: The average value in the 12 hour period
Min: The minimum value in the 12 hour period
Max: The maximum value in the 12 hour period
StdDev: The standard deviation of the value in the 12 hour period
PStdDev: The percent standard deviation of the value in the 12 hour period
Total: The sum of the values in the 12 hour period
Count: The number of data points in the 12 hour period
Range: The difference between the largest and smallest value in the 12 hour period

Summary Statistics

Summary Statistics cannot be added to a transposed table.
