Tree

About 3 min

The Tree component supports the exploration and navigation of data organized in a hierarchical structure.

Supported data types

The following table outlines the data types supported by the Tree component:

Channel Type	Supported?
Tag	⚫
Asset (Attributes)	🟢
Timeframe (Attributes)	🟢
Tag Search	⚫
Asset Search	🟢
Timeframe Search	🟢

Note

While you can create a Tree using timeframes, the TimeFrame component is better suited for this type of data.

Quick Start

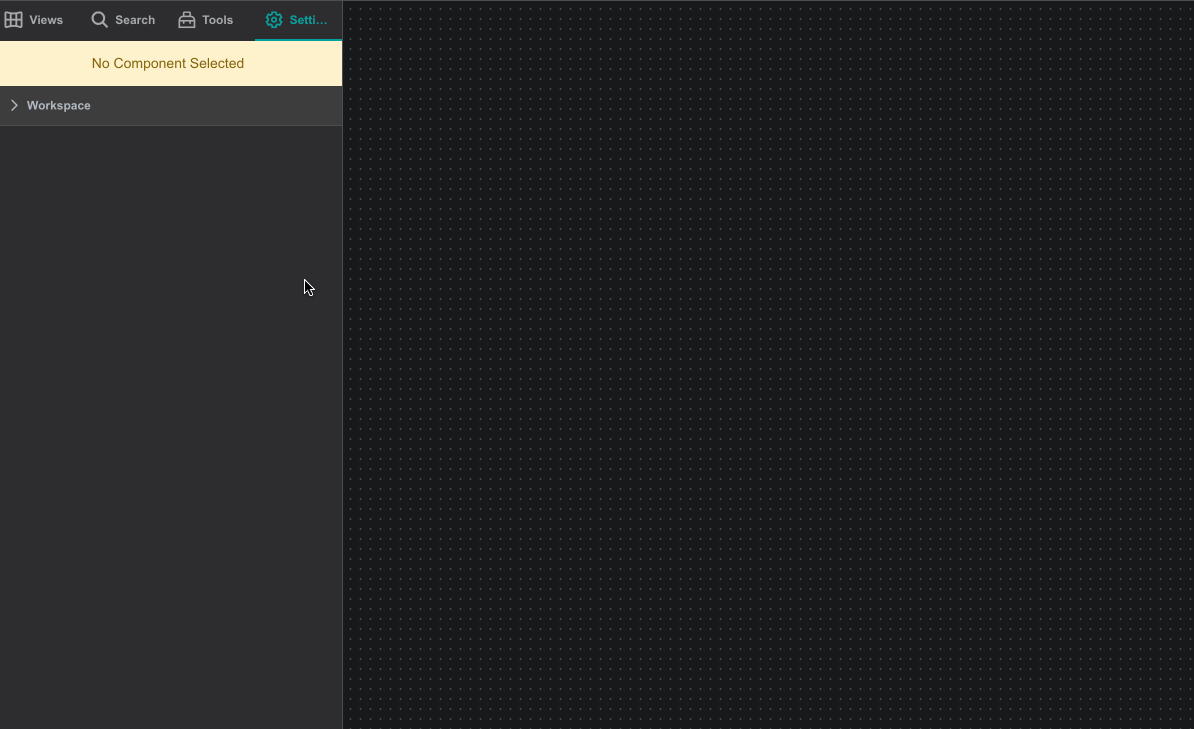

To quickly start using the Tree component, drag and drop it onto the work area. Search for the data you want to visualize and map it onto the component:

Property Name	Description
Grid Color	Color of the grid
Grid Size	Size of the grid step
Snap to Grid	Enable/Disable snapping to the grid
Show Grid Lines	Show the grid as lines
Show Grid Dots	Show the grid as dots

Property Name	Description
Reference Point Color	Sets the color of the reference point (see Rotation and Position for more details)
Anchor Points Color	Sets the color of the rest of the seven anchor points
Point Options Color	Sets the color of the point options (only for Line and Bezier Curve)
Show Point Options	Show/Hide the point options

Property Name	Description
Active Border Fill	Sets the fill color of the border
Active Border Width	Sets the width of the border

Every component has a unique variable name. This variable name can be used to reference the component in multi-state configurations and other scripts.
On creation, every component is given a default name. This can be overwritten to be more user-friendly. To do so simply overwrite the value in the variable input field.

Arrange / Remove

Send Backward - move object one layer down
Bring Forward - move object one layer up
Send to Back - place object under all layers
Bring to Front - place object above all layers
To send/bring objects to the front/back use the first four buttons.
Any set of components can be deleted by either using the button or delete/del keyboard keys.

Actions

Actions or multi-states are programmable conditional states handled by user-generated code.

Note

Actions that have script handlers are marked with a circle
OnData
in the top right corner.

The currently supported actions are described in the table below:

Action	Trigger
OnCreate	When the component is created
OnFocus	When the component is selected
onClick	When the component is clicked or the selection is changed
onData	Each time the data changes for assigned channels
onTick	20 times per second
onDblClick	On mouse double click
onHover	When the mouse is over the component (and not when the mouse is not)

Further Reading

For helping you in writing your own actions, consider exploring the available Actions Deep Dive, as well as the Quick Start manual.
Also, multiple articles are available in Actions Section in IOTA's Knowledge Base.

Pin Options

All components can receive data through pins; however, the Tree and Table components can also output data to feed other components. You can establish these connections between components in two ways: the Actions menu (refer to Generic Settings) or using the pins feature.

To connect the table with the pins feature to other components, follow these steps:

Pin a Connector to one of 8 available connection points:
Connect the Connector to another component
Choose an option from the corresponding and pin's drop-down menu. The table and tree components can send data to other components (Output Binding) and receive data (Input Binding).

Color legend for pins:

Symbol	Function
	Bound Input Pin
	Bound Output Pin
	Unbound Pin

Each pin offers the following options in the drop-down menu:

all (output): transfers all channels
selected (output): transfers only selected channels
isSelected (output): transfers True if the component is selected
enabled (input): enables or disables the component based on the value read from pin

Please refer to Connector page for more details on how to use pins and connectors.

Title

This section configures the title of your component.

Property Name	Description
Show Title	Show/hide the title line
Height	Height of the title line
Text	Text itself
Background Color	Background color of the title line
Text Color	Text color of the title line
Text Align	Alignment of the text within the title line: Left, Center, Right

Rotation and Position

Reference Anchor Point - allows you to select one of the anchor points as a reference so that you can set an Angle (clockwise) of incline relative to this point. By default the reference anchor point is the top left corner. You can also rotate the component by dragging one of the yellow corner points.
You can set the position of the component by setting the X and Y coordinates relative to theReference Anchor Point and the top-left corner of the work area.
You can drag any of the anchor points to change the width and height of the component, or you can set it manually by editing the Width and Height boxes.
Set Lock Aspect Ratio so that while changing width and height, the component width to height ratio stays the same
Transform allows you to view the component as a mirror or a reflection of itself

Global Time Control

To activate the Global Time Control panel click on Global Time Control Settings button in the upper area of the View:

Additionally, you can configure the Global Time Control option in Settings for every component on the current display.

Use Component as Global Time Control : if enabled, the component is able to set the time context for all components on the current display.
Ignore Global Time Control : when enabled, the option allows the component to function independent of global time set elsewhere.

The example below demonstrates the usage of the Global Time Control panel and how the value changes in the space of an hour:

Channels

The Channels section lists data that is assigned/mapped onto the component.
In this menu, you can change the data value color, adjust the display properties and un-assign or remove the data from the component.

Properties

The properties menu for Channels allows you:

to modify the Label of the DataSource
to set UOM, lower and upper values
to choose number format and displayed digits
to adjust the line formatting for trend line components
to configure the additional regression lines that can be plotted for supported components

Supported Multi-State Parameters

Each of the the visual parameters listed below can be used as a multi-state, i.e. used in actions and scripts:

Title and Text
- Text
Rotation and Position
- Rotation
Common
- Blink
- Hidden
Title
- Show Title
- Title Height
- Title Text
- Title Background Color
- Title Color
- Title Text Align
Visual Properties
- Border Color
- Border Width
- Border Radius
- Background Color
- Highlight Row Color
- Highlight Row Text Color
- Footer Row Color
- Footer Row Text Color
- Label Color
Font
- Title Font Family
- Title Font Size
- Title Italic
- Title Bold
- Title Underline
- Label Font Family
- Label Font Size
- Label Italic
- Label Bold
- Label Underline
- Footer Font Family
- Footer Font Size
Format
- Show Full Name
- Show Element Description
- Show Asset Description
- Show Attribute Description
- Display Mode
Pin Options
- Current Pin Option
- Pin Input
- Pin Output
Component Specific
- Select Multiple Rows
- Load Attributes
- Template Filter
- URL Query Parameter

Tree Settings

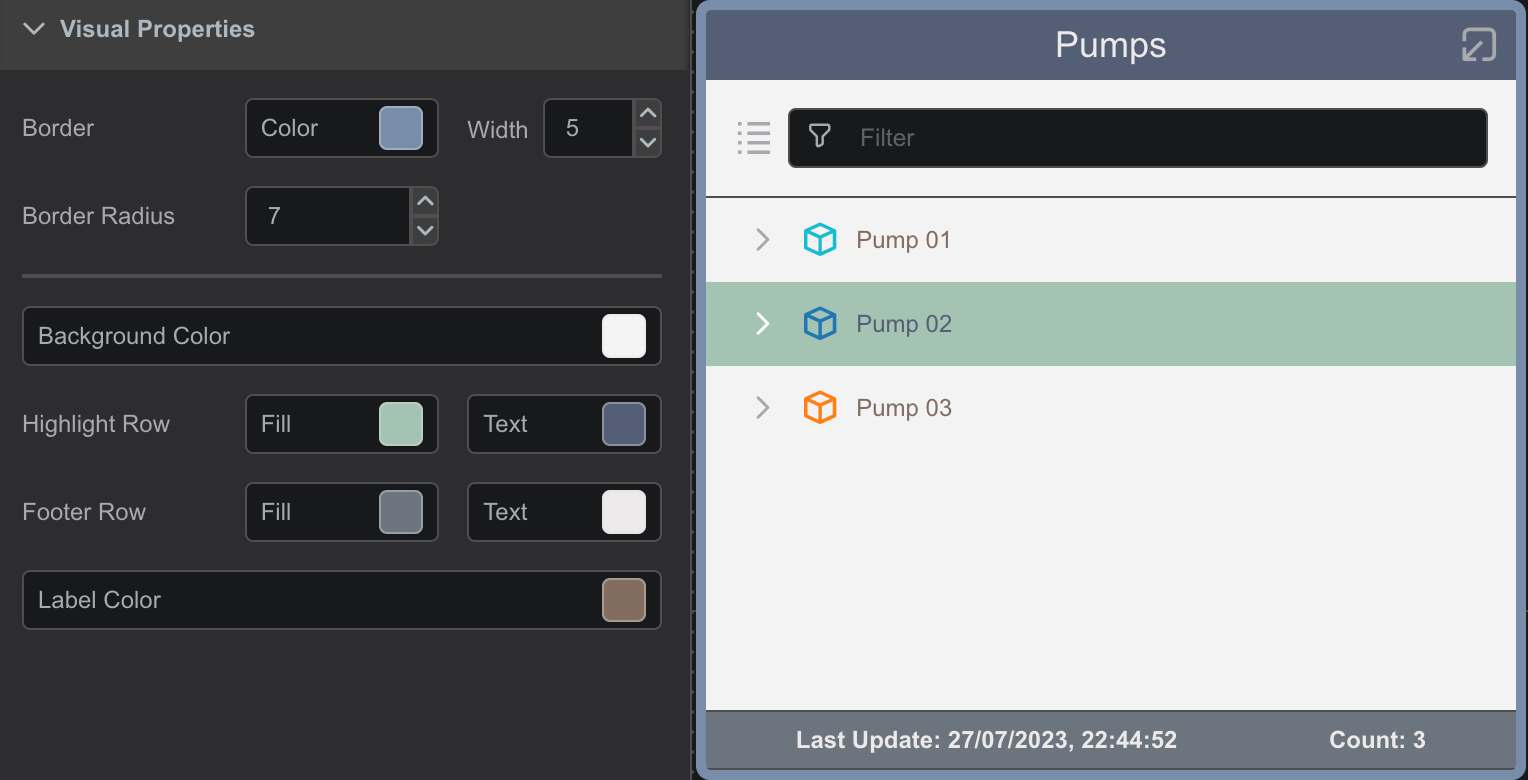

Visual Properties

The Visual Properties section provides options for customizing the component's appearance by changing the color schema.

Border Color: Defines the component's border color
Border Width: Controls the width of border frame. Default: 0 - invisible border
Border Radius: Defines the curvature of the component’s corners
Background Color: Defines the component's background color
Highlight Row Fill: Defines the fill color for highlighted row(s)
Highlight Row Text: Defines the text color for highlighted row(s)
Footer Row Fill: Defines the fill color for the footer row
Footer Row Text: Defines the text color for the footer row
Label Color: Defines the component's label color

To pick color of your interest

To change color for specific visual property, click on the color box next to property description. The color picker dialog will be displayed.

Pick the color of interest. The video below shows how to choose a solid, gradient or theme color.

You can add Gradient Stops by double clicking and to remove - by pulling it up.

To close the color-picker dialog - click on the property color box (Step 1).

Closing color-picker dialog

Clicking on the workspace area instead of Settings Tab area -
component settings will disappear since component focus will be lost.

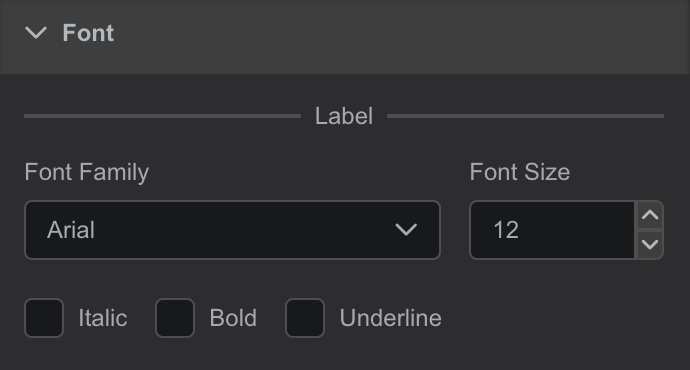

Font

The Font section provides options for customizing the label properties.

Font Properties

Font properties available for edit:

Font Family : Allows to select different font family. Default: Arial
Font Size : Controls the font size. Default: 12
Italic : Sets font to italic
Bold : Sets font to bold
Underline : Sets font to underline

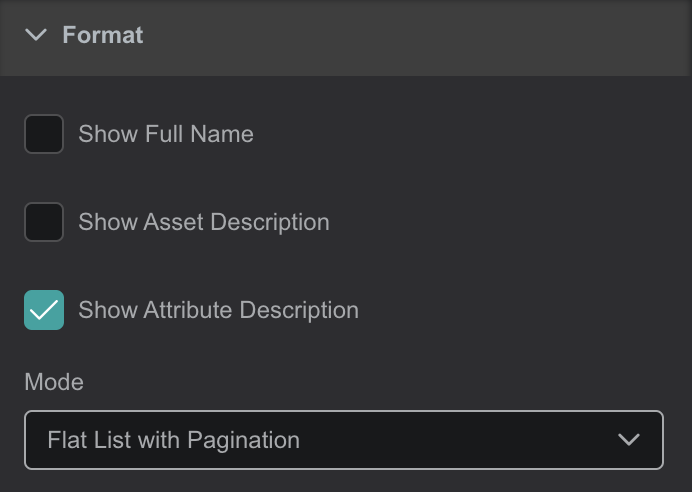

Format

The Format section provides options for customizing displayed information.

Show Full Name: Shows the asset path and name (see screenshot above).
Show Asset Description: Shows the asset description
Show Attribute Description: Shows the attribute description
Mode: Choose between Tree, Flat List and Flat List with Pagination display mode

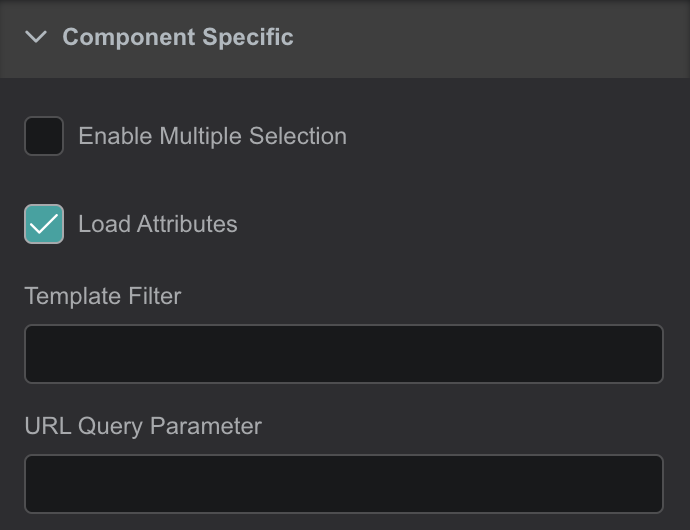

Component Specific

The Component Specific section provides options for modifying various properties for the tree.

Enable Multiple Selection: Permits selection of multiple items (default: single)
Load Attributes: Toggles attribute visibility
Template Filter: Filters channels based on entered text
URL Query Parameter: Enables pre-selection of a tree component's item, accessing via a link (see more details below)

How to select multiple rows

To select multiple rows, press Ctrl (Windows) / Cmd (macOS) while clicking on the desired items.

URL Query Parameter

To create a link that automatically selects a specific item in a tree, follow these steps:

Assign a URL Query Parameter name to the tree component:

Tree: Assigning a URL Query Parameter Name

Integrate the assigned parameter into the link URL by utilizing the item's name as the parameter's value:

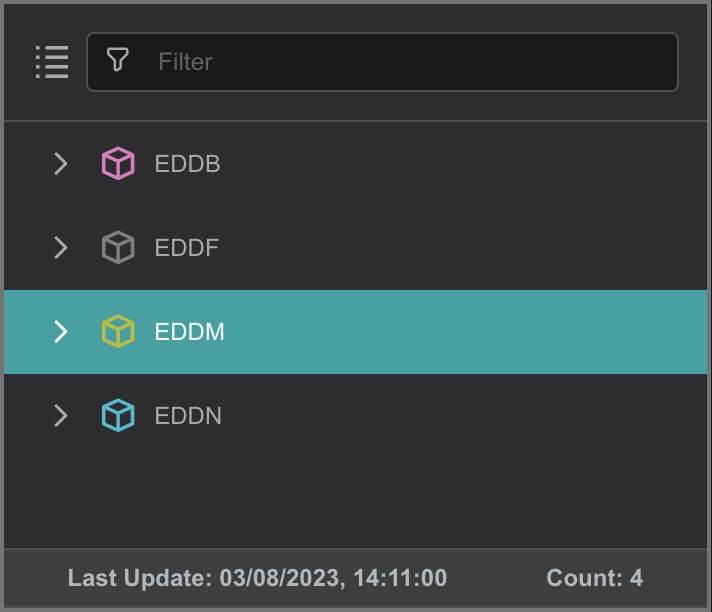

When opening the updated link, the chosen item will be automatically selected:

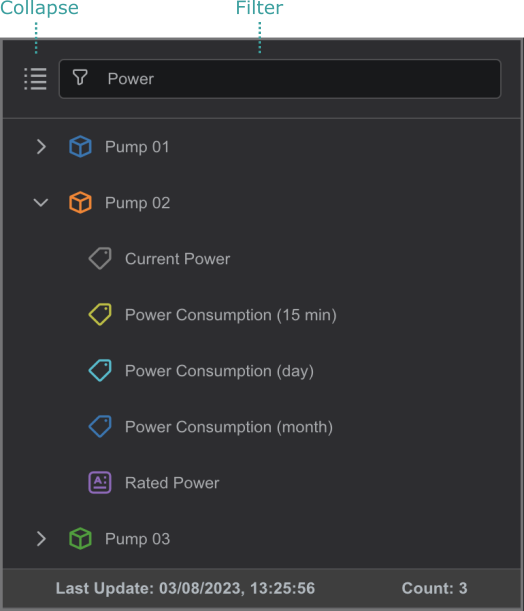

Additional Features

The Filter, Collapse button, Count, and Last Update contribute to an efficient data exploration:

Collapse: Folds the hierarchical levels into parent nodes
Filter: Enter a keyword to quickly search through the displayed data
Count: Displays the total count of channeled items
Last Update: Displays the last time that the Tree component was updated

Tip

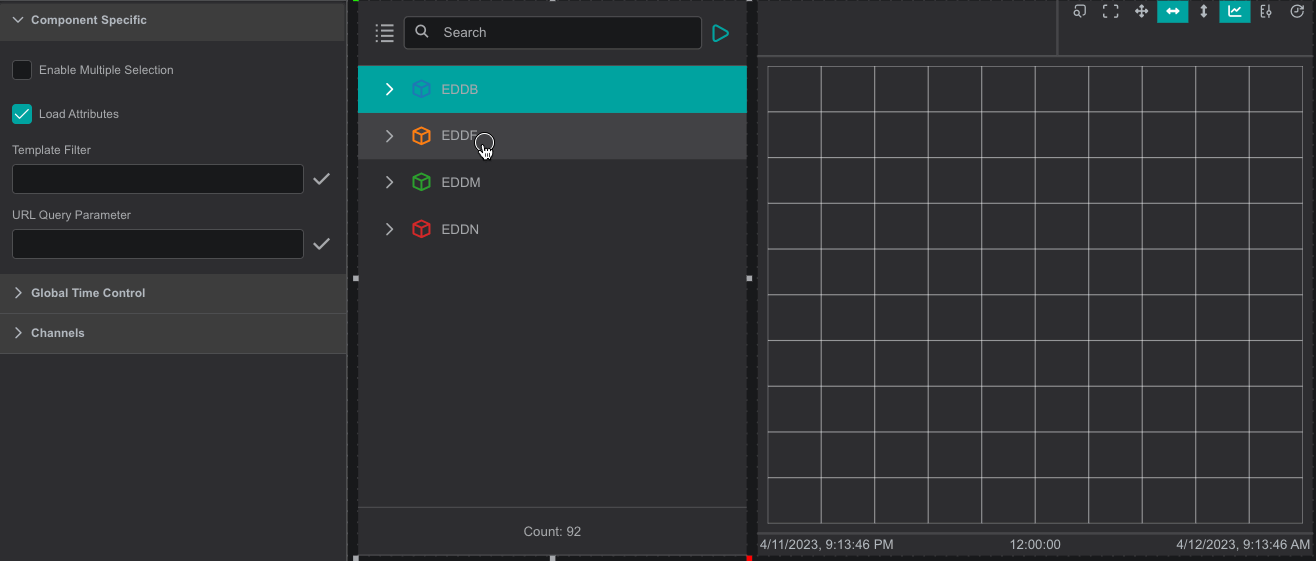

You can directly drag and drop channels from the Tree onto other components by dragging the channel icon and dropping it onto the desired component.

This action does not establish a connection between the tree and another component.
