Timeframe

About 3 min

The Timeframe component allows you to view time based events visually in a Gantt Chart format with a duration, start time and end time. A horizontal bar visually represents the duration of events. You can sync events so that they are all aligned to the same starting point to easily compare durations.

Supported data types

The following table outlines the data types supported by the TimeFrame component:

Channel Type	Supported?
Tag	⚫
Asset (Attributes)	⚫
Timeframe (Attributes)	🟢
Tag Search	⚫
Asset Search	⚫
Timeframe Search	🟢

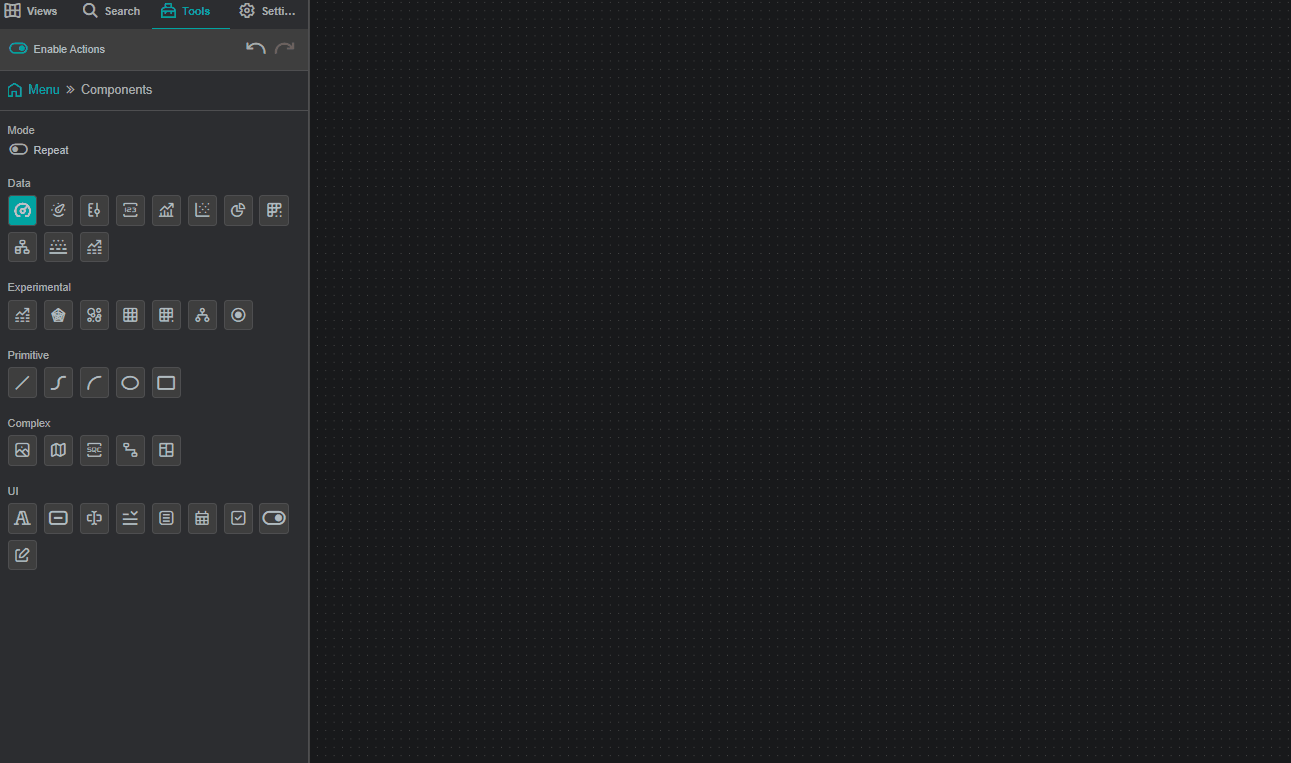

Quick Start

To quickly start using the Timeframe component, drag and drop it onto the work area. Search for the data you want to visualize and map it onto the component:

Generic Settings

Each IOTA Component has settings that are shared across most components. To view these settings, expand the corresponding section below:

Workspace

These settings are applicable to the whole view.

Grid Properties

The grid is provided for convenience when developing dashboards as visual guides and snapping capability.

By default the work area grid is enabled and can be customized or even disabled in this menu.

Property Name	Description
Grid Color	Color of the grid
Grid Size	Size of the grid step
Snap to Grid	Enable/Disable snapping to the grid
Show Grid Lines	Show the grid as lines
Show Grid Dots	Show the grid as dots

Align Controls

The Align controls provides a means to align and distribute selected objects on the display.

Align Objects

You can align several components horizontally using the Align-left, Align-center or Align-right controls
You can align several components vertically using the Align-top, Align-vertical-center or Align-bottom controls

Distribute Objects

You can distribute several components on the vertical/horizontal axis by selecting them (select at least 3 components) and pressing Align-vertical/Align-horizontal
You can make all the selected components the same width/height by selecting them and pressing Adjust Width/Adjust Height

Tips

Hold the Ctrl button to select several components. The eldest component is used as a reference.

Anchor Points Options

The anchor points are eight squares around an object that allow you to resize the object. The anchor point options allow you to define the appearance of the anchor points.

Property Name	Description
Reference Point Color	Sets the color of the reference point (see Rotation and Position for more details)
Anchor Points Color	Sets the color of the rest of the seven anchor points
Point Options Color	Sets the color of the point options (only for Line and Bezier Curve)
Show Point Options	Show/Hide the point options

Locked View Options

These options define the appearance of the component border in the locked view for the selected component.

Property Name	Description
Active Border Fill	Sets the fill color of the border
Active Border Width	Sets the width of the border

Variable

Every component has a unique variable name. This variable name can be used to reference the component in multi-state configurations and other scripts.
On creation, every component is given a default name. This can be overwritten to be more user-friendly. To do so simply overwrite the value in the variable input field.

Arrange / Remove

Send Backward - move object one layer down
Bring Forward - move object one layer up
Send to Back - place object under all layers
Bring to Front - place object above all layers
To send/bring objects to the front/back use the first four buttons.
Any set of components can be deleted by either using the button or delete/del keyboard keys.

Rotation and Position

Reference Anchor Point - allows you to select one of the anchor points as a reference so that you can set an Angle (clockwise) of incline relative to this point. By default the reference anchor point is the top left corner. You can also rotate the component by dragging one of the yellow corner points.
You can set the position of the component by setting the X and Y coordinates relative to theReference Anchor Point and the top-left corner of the work area.
You can drag any of the anchor points to change the width and height of the component, or you can set it manually by editing the Width and Height boxes.
Set Lock Aspect Ratio so that while changing width and height, the component width to height ratio stays the same
Transform allows you to view the component as a mirror or a reflection of itself

Actions

Actions or multi-states are programmable conditional states handled by user-generated code.

Note

Actions that have script handlers are marked with a circle
OnData
in the top right corner.

The currently supported actions are described in the table below:

Action	Trigger
OnCreate	When the component is created
OnFocus	When the component is selected
onClick	When the component is clicked or the selection is changed
onData	Each time the data changes for assigned channels
onTick	20 times per second
onDblClick	On mouse double click
onHover	When the mouse is over the component (and not when the mouse is not)

Property Name	Description
Show Title	Show/hide the title line
Height	Height of the title line
Text	Text itself
Background Color	Background color of the title line
Text Color	Text color of the title line
Text Align	Alignment of the text within the title line: Left, Center, Right

Properties

The properties menu for Channels allows you:

to modify the Label of the DataSource
to set UOM, lower and upper values
to choose number format and displayed digits
to adjust the line formatting for trend line components
to configure the additional regression lines that can be plotted for supported components

Supported Multi-State Parameters

Each of the parameters listed below can be used as a multi-state, i.e. used in actions and scripts:

Title and Text
- Text
Rotation and Position
- Rotation
Common
- Blink
- Hidden
Visual Properties
- Border Color
- Border Width
- Border Radius
- Background Color
- Header Row Color
- Header Row Text color
- Body Row Color
- Body Row Text Color
- Footer Row Color
- Footer Row Text Color
- Completed Color
- Running Color
- Last Completed Color
Font
- Legend Font Family
- Legend Font Size
- Legend Italic
- Legend Bold
- Legend Underline
Format
- Attributes
- Global Filter
- Number format
- Display Digits
Global Time Control
- Ignore Global Time Control

Timeframe Settings

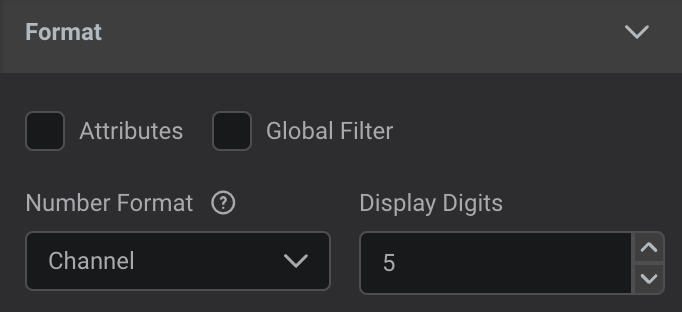

Format

The Format section provides options for customizing displayed information.

Global Filter: Inserts a search bar to filter results and a download button at the top of the table

Number Format

The Number Format allows you to define the numeric representation of the legend's Value property.
IOTA supports custom formats (for more information please click Format: Number Format ). If using a custom format, simply type the desired format in the box under Number Format.

Number Format Examples

Number Format	Displayed Value
General	2376.28
0	2376
0.0	2376.3
0.00	2376.28
0.000	2376.280
#,##0	2,376
#,##0.0	2,376.3
#,##0.00	2,376.28
#,##0.000	2,376.280
(#,##0)	(2,376)
(#,##0.00)	(2,376.28)
0%	237628%
00.0%	237628.0%
Scientific	2.38E+3
Channel	2376.28*
System	2376.28**

* as in the database

** as in the system

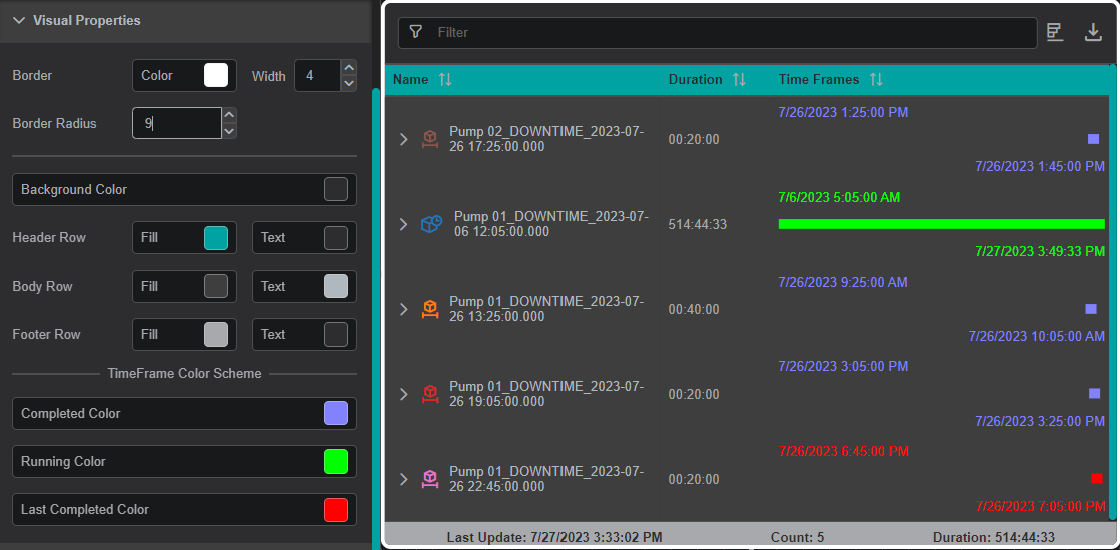

Visual Properties

The Visual Properties section provides options for customizing the component's appearance by changing the color schema

Border Color: Defines the component's border color
Border Width: Controls the width of border frame. Default: 0 - invisible border
Border Radius: Defines the curvature of the component’s corners
Background Color: Defines the component's background color
Header Row Fill: Defines the color for the header row
Header Row Text: Defines the color for the text in the header row
Body Row Fill: Defines the color for all other table rows
Body Row Text: Defines the color for the text in all other table rows
Footer Row Fill: Defines the color for the footer row
Footer Row Text: Defines the color for the text in the footer row
Completed Color: Defines the color for the Time Frame Events that have completed
Running Color: Defines the color for the Time Frames Events that are in progress
Last Completed Color: Defines the color for the last Time Frame Event that has completed

To pick color of your interest

To change color for specific visual property, click on the color box next to property description. The color picker dialog will be displayed.

Pick the color of interest. The video below shows how to choose a solid, gradient or theme color.

You can add Gradient Stops by double clicking and to remove - by pulling it up.

To close the color-picker dialog - click on the property color box (Step 1).

Closing color-picker dialog

Clicking on the workspace area instead of Settings Tab area -
component settings will disappear since component focus will be lost.

The Tooltip Setting provides data reference for PI AF attributes and descriptive statistics when user interacts with a component by hovering over it.

Show Current Value : Shows Current Value
Show Archive Values : Shows Archive Values, the number can be set in Number Values
Show Summaries : Shows Summaries for set Time Range Interval (can be set in seconds (s), minutes (m), hours (h), days (d), weeks (w), months (mo), years (y))

Summary Types :

Average : the average value in the set period
Minimum: the minimum value in the set period
Maximum: the maximum value in the set period
PercentGood: the percent good value in the set period
StdDeviation: The standard deviation of the value in the set period
PStdDeviation: The percent standard deviation of the value in the set period
Total: The sum of the values in the set period
Count: The number of data points in the set period
Range: The difference between the largest and smallest value in the set period

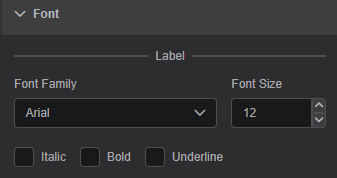

Font

The Font section provides options for customizing the label font properties.

Font Properties

Font properties available for edit:

Font Family : Allows to select different font family. Default: Arial
Font Size : Controls the font size. Default: 12
Italic : Sets font to italic
Bold : Sets font to bold
Underline : Sets font to underline

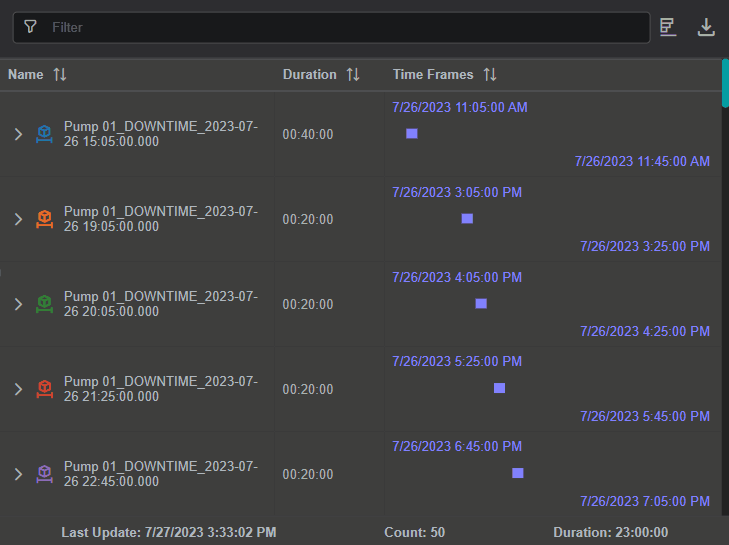

Timeframe Controls

The Timeframe component also has other tools to view and add context to the data.

Filter: Type here to do quick search through the data presented
Sync: Aligns all timeframes to the same starting point to be able to easily compare durations
Download: Enables data from component to download as a .csv
Last Update: Displays the last time that the TimeFrame component was updated
Count: Displays the total count of the items displayed. This count will remain the same in a filtered view.
Duration: Displays the length in hours:min:sec of the time period displayed.

Note

The Duration will display the length of time from the start of the first timeframe to the end of the last timeframe. When sync is enabled, the duration will show the length of the longest timeframe. Selecting timeframes does not change the Duration.

How to select multiple rows

Selecting any component on the Timeframe component will highlight it the color of the channel. To multi-select items, hold down the Ctrl (Windows) / Cmd (macOS) key while you select multiple items.
